Passage Boot Sole Washer , Sole Cleaning Machine For Entrance Unit In Food Workshop

Passage Boot Sole Washer , Sole Cleaning Machine For Entrance Unit In Food Workshop

    • Passage Boot Sole Washer , Sole Cleaning Machine For Entrance Unit In Food Workshop
    • Passage Boot Sole Washer , Sole Cleaning Machine For Entrance Unit In Food Workshop
  • Passage Boot Sole Washer , Sole Cleaning Machine For Entrance Unit In Food Workshop

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: ZHISHENG
    Certification: CE, ISO9001
    Model Number: ZS-91510-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Packaging Details: plywood pallet or case
    Delivery Time: Shipped in 20 days after payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Fuel: Water
    Use: Boot/shoe Sole Cleaning And Hand Soap Dispenser Cleaning Process: Cold Water Cleaning
    Cleaning Type: Immersion / Soak Industry Used: Pharmaceutical Cleaning
    Power(W): 680W After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Voltage: 220V/50HZ/1PH Warranty: 1 Year
    Roller Brush: 1000 Mm Length

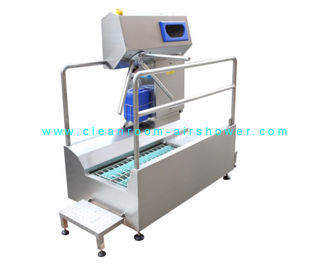

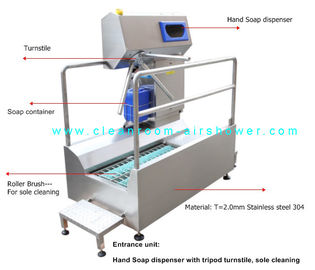

    Hand Soap dispenser with access stand turnstiles and Passage boot sole washer For Entrance unit in food workshop



    Application: for food factory workshop, kitchen, and other industries.



    Material:T=2.0mm Stainless steel 304



    Functions:



    1. For Shoe and Boot sole.



    Sole washer,  cleaning the shoe/boot sole by rolled brush with water automatically by photoelectric sensor.



    2. For Hand : Auto soap dispenser, only after soap dispenser, then the tripod turnstiles will release people enter into, making sure people have to wash their hands before enter workshop, then keep the hygiene of food.



    Material: SS304 for main body, which is prevent from rust.



    Working life: 6-7 years at least.





    Specification:



    This machine for purpose of food, electronic, pharmacy, chemical industry etc.



    This staion is mainly suitable for food, electronic, pharmacy, chemical manufacturing company, The products is made of material of SUS304 which is comply with the standard of food industry. We adopt the one-stop



    total solution to clean and disinfect on the product. The design of through start upon sensor induction avoid cross contamination due to touch free operation. The machine comes with a tripod turnstile,user are



    coerced into cleaning and disinfecting hand before entrance,one-stop solution to clean and disinfect hand and sole.





    Function & features:



    One-stop solution to clean and disinfect hand and sole.



    Through start upon sensor induction avoid cross contamination



    Sole Cleaning function:inspective start upon cleaning sole.built-in liquid tank can hold all kinds of detergent or disinfector




    Working principle:



    Motor drive the 2 brushes on the clean stage to clean sole.



    User stand on the clean stage, the brushes rotate to clean the shoe soles.



    Start upon sensor induction, stop upon time out



    Installation:



    Need a flat and smooth floor indoor, to put the machine.



    Need water supply and drainage pipe or hose to connect.



    Need power supply 220VAC.



    Technical parameter:

    Model ZS-91510-B
    Original Made in China
    Electric control

    Sensors: OMRON

    PLC: OMRON

    Power control: Weidmuller

    Leakage protection:Schneider

    Cleaning model/water temperature

    cleaning with water/10-30



    Cleaning type/Clean length Roller brush 2 set/Length 1000mm
    Brush material Nylon
    Function:

    Inductive soap liquid dispenser, /Sole washing



    Disinfectant volume 5L
    Inlet part/pressure SS304 Solenoid valve/pressure 10KG, working pressure 3-5KGS
    Inlet connector DN25/ 3/4" internal threaded
    Disinfectant volume for sole 10L
    Water level control ball float valve (DC24V)
    Water out way Floor drain
    Drainage connector DN50mm
    Start type Start upon sensor induction, stop upon time out (30-60s)
    Soap liquid Inductive soap liquid dispenser
    Tap for hand NONE
    Hand Disinfecting NONE
    Tripod turnstile Only enter after Hand disinfection
    Voltage AC220 50Hz,single phase
    Motor power 120W
    Total power 2300W
    Sate guard Leakage/overload/short circuit
    Main material SUS304
    Size( LxWxH)mm 2200x850x1718
    Weight (KGS) 310KG
    Packing Plywood case



    Packing: Plywood case
