Product Details:
|
| Condition: | New | Dimension(WxDxH): | W1200xD1050xH2100MM |
|---|---|---|---|
| Power(W): | 1000W | Weight: | 250KG |
| Clean Room: | 100 Class | Blowing Side: | 2-side Blowing |
| Material: | SS304 | Suitable: | One Person |
| High Light: | air showers for clean rooms,class 100 clean room |
||
SS304 Small Air Shower Room For One person, 2-side blowing
Features:

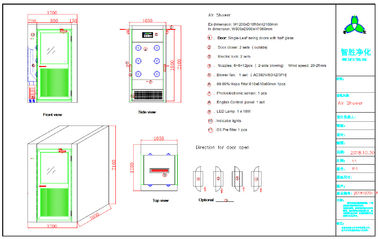

| Product | Air shower room for one person |

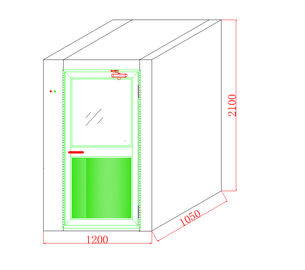

| External size | W1200xD1050xH2100MM |
| Internal size | W800*D900*H1960mm |
| Material: | T=1.2 mm SS304 for main body and base |
| Doors type |
W=800mm SS304 single-leaf sliding doors,
|
| Door closer | 2 SETS |
| Electric lock | 2 SETS |
| Indicator lights | Green and Red lights |
| TYLD4240 Fan | 1 set,capacity: 2500CMH/set |
| 99.99% HEPA filter | 610*610*69mm 1 sets |
| Pre filter | 1 pcs |
| Nozzles | 6+6=12 pcs |
| Bloweing type | 2-side blowing, wind speed: >22m/s |
| Control system | Control by IC control panel |
| Photoelectric snesor | Omron brand 1pcs |
| Philips LED light | 1x18W |
Description:
Air Shower Cleanroom is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.
It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.
The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Standar size and specificaton:
| Model | Air shower | Cargo Air shower | ||||
| AS-1200D-1 | AS-1400D-1 | AS-1400D-1.5 | AS-1400D-2 | CAS-1700T-2 (2 Modules) | CAS-1700T-4 (4 Modules) | |
| Ex size WxDxH (MM) | 1200x1000x 2050 | 1400x1000x 2050 | 1400x1500x 2050 | 1400x2000x 2050 | 1800x2000x2050 | 1800x4000x 2050 |
| In size WxDxH (MM) | 800x900x 1920 | 800x900x 1920 | 800x1400x 1920 | 800x1900x 1920 | 1200x1900x 1920 | 1200x3900x 1920 |
| Doors | Swing door/sliding door/shutter door Door frame: SS/ALU | |||||
| Suitable person | 1 | 1 | 1-2 | 2-3 | Cart | |
| Nozzles | 12(two side) | 12(two sides) | 18(two sides) | 24(two sides) | 32(3- side) | 64(3- side) |
| Fan | #4250x1 set | #4195 x 2 sets | #4195x2sets | #4250x2sets | #4195x4sets | #4195x8sets |
| Power(W) | 1000W | 850W | 850W | 2000W | 1700W | 3400W |
| HEPA filter | 610x610x69 1pcs | 610x610x69 2pcs | 610x610x69 2pcs | 915x610x69 2 pcs | 610x610x69 4pcs | 610x610x69 8pcs |
| Nozzle | ф 25 or 32mm | |||||
| Voltage | 380V/50Hz/3Ph; 220V/50Hz/1Ph | |||||
| Control system | IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked. | |||||
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Stainless Steel Air Shower's Real Photos:
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
