Anti Static Hard Wall Aluminum Frame Modular Clean Room

Anti Static Hard Wall Aluminum Frame Modular Clean Room

MOQ: 1 set
Standard Packaging: Plywood case
Payment Method: T/T, Western Union
Supply Capacity: 10 set per month
Detail Information
Place of Origin
Guangdong, China
Brand Name
zhisheng
Certification
CE, ISO9001
Model Number
ZS-CB-C1000
Material:
Aluminum Frame
Material For Main Body:
Anti-static Arcylic Sheet
Purification Grade:
Class 1000
Door:
Manual Sliding Door
Air Return:
From The Top
Top Ceiling:
Mirror Stainless Steel 304
Minimum Order Quantity:
1 set
Packaging Details:
Plywood case
Payment Terms:
T/T, Western Union
Supply Ability:
10 set per month
High Light:

Anti Static Modular Clean Room

,

Class 1000 Modular Clean Room

,

ISO 6 clean room booth

Product Description

 Anti-static Hard Wall Modular Clean room, ISO 6 Clean booth, Aluminum structure



For South Korean   INNOX factory



Modular clean room benefits:



Durable



Fast clan installation with minumum on-site disruption



Maintain value



Easily modified for expansion or repurposing.



Custom modular clean room designs:



1. Class 100 to 100k / ISO to ISO8 per ISO1 4664-1



2. One pass or recirculating



3. Temperature/Humidity environmental controls.



4. Standard modular or ACS seamless pharmaceutical modular wall system





Wide Modular material options:



1. Wall surfaces:Melamine, Vinyl coated gypsum, FRP, glass, polycarbnate, painted aluminum, or stainless steel



2. Doors: Single, double, automatic sliding, motorized roll up, interlock systems.



3. Flooring: VCT, raised access floor



4. Lighting: T-8 LED, skylight tubes.



Optionals:



1. HEPA fan filter unit or ULPA fan filter unit, standard and RSR



2. Air showers , pass boxes.

Though clear division is not available, "Clean room" term is used in case of building or room. A space enclosed by PVC curtain or resin panel is considered as "Clean booth" in case of willingness to increase the cleanliness factor in a clean room or air-conditioned room. Size is 1.5m to 5m and clean air is introduced in the booth with a provision of FFU (Fan Filter Unit) in the ceiling.
Have become popular in recent years, not on the basis of its size, but considering it as a simple, cheap, movable structure with cleanliness factor and not violating the construction code or Fire services act.
Frame: Aluminum

Size and specification:

Product Modular Clean Room
Size  According to customer's size
Outer frame

40*80mm Extruded aluminum
40*40mm Extruded aluminum

FFU QTY 100sets
LIGHT 36W*40
Blower fan 120W x6SETS
Nosie about 54dBA
C view Lightproof anti-static PVC curtain
Top ceiling  FFU and mirrior SS304 plate
Class 1000
Door Manual sliding door


Application:
Clean room is for the pharmaceutical, microbiological research and scientific experiments, which require partial purification equipment.
With regards to the construction code or fire services act, there is a possibility of conflict with the standards of local authority or company of client. Also, the size that can be erected over a desk is termed as "Simple clean bench"
Following considerations are necessary in case of selection of Clean booth.
1. Calculation of cleanliness factor for inside of booth
2. Selection of wall material
3. Selection of ventilation system
4. Selection of air-conditioning within the booth
1. Calculation of cleanliness factor for inside of booth
Generally, it is determined on the basis of clean room regulations. The parameters considered are rate of circulation, filter type, flow system and ventilation system.
Reference table for rate of circulation

Class of clean room General numerical value USA209E Standards Average air current speed
Class 100,000 20-30 rotations/h 20 0.005-0.041m/s
Class 10,000 30~70 rotations /h 70 0.051-0.76m/s
Class 1,000 100-200 rotations/h 150 0.127-0.202m/s
Class 100 200-600 rotations/h 250-400 0.203-0.408m/s


Rate of circulation per hour (rotations /h) =Average air current speed (m/sec) x discharge area (m2) x 3600sec ÷room capacity (volume) (m3)


Item Medium or high performance filter HEPA filter ULPA filter
Filtering capacity Class 10-100000 Class 100-10000 Class 10
Examples Normal office After IC process PRE IC process
Performance High trapping capacity as compares to coarse particle filter Possessing a trapping of capacity up to 99.97% for 0.3um size particles Prossessing a trapping of capacity up to 99.999% for 0.1um size particles


The air flow capacity and units of FFU to be installed are selected on the basis of the volume of clean booth and the desired class.

Required air flow (m3/min) =targeted room capacity (m3) ×rate of circulation (rotations /h) ÷60
Example)
The FFU air flow for a clean booth with width 3m, length 2m, height 2m and desired class of 10000 is (3×2×2) ×75÷60=15(m3/min)

*Single unit of PAU - A17FFU of our company is compatible.
2. Selection of wall material
Selection should be made on the basis of requirements related to ambient and internal space environment.
Features:
1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place
that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the
clean air enter into the work zone vertically to insure the purification requirement
2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s
3). the dimension of the clean booth ,customizes design is available
4).it can be used by single and also can be connected to clean area in strip
5). purification rank : 100 class,1000 class or 10000class
Specifications:


Item Hard wall modular clean room
Cleanliness Class 100 to Class 100,000
Dimension (LXWXH) Designed as per customer’s requirements
FFU Dimension 2x2, 2x4, 4x4 optional
Structural frame material Stainless steel, aluminum alloy
Power supply 110V/60HZ/AC; 220V/60HZ/AC
Filter Mini pleat HEPA filter/ULPA filter optional
Material of frame Aluminum alloy / stainless steel 201/SUS 304
Material of wall Tempered glass/Acrylic/Anti-static transparent PVC/Sandwich panel
Ceiling Aluminium-plastic panel/Tempered glass/Acrylic/Anti-static transparent PVC/Sandwich panel


Optional Accessory:
Air Shower
Pass box
Air conditioner
Pressure gauge

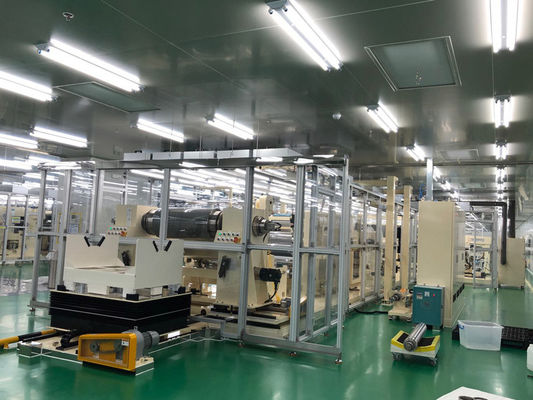

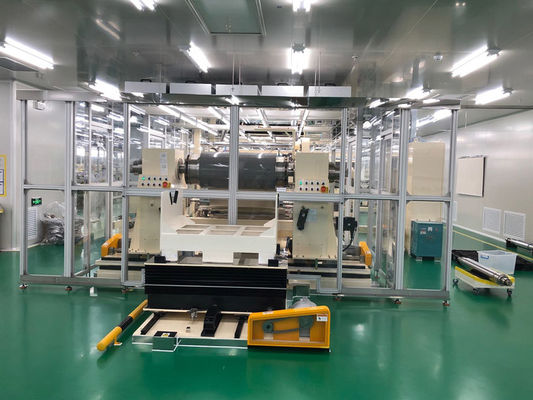

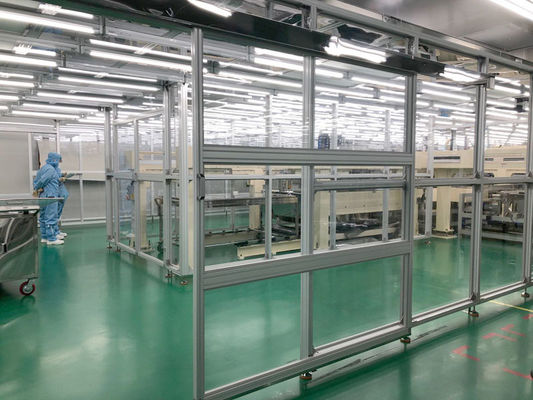

Photos of Class 1000 modular clean room:
