Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor

Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Supply Capacity: 200sets per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO9001
Model Number
ZS-PB-1500
Material:
Powder Coated Steel For Air Shower
Type:
Air Shower
Wind Speed:
>23m/s
Application:
Clean Room
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
200sets per month
High Light:

Cleanroom Automatic Roller Conveyor

,

Steel Air Shower Pass Box

,

Cleanroom Air Shower Pass Box

Product Description

Air Shower Pass Box and Automatic Stainless Steel Roller Conveyor for pass pallet or goods to clean room



Clean Room Pass box and Stainless steel 304 Conveyor for Passing goods into Clean Room



Optional: UV lamp, Ion bar or Ion blower fan



Air Shower pass box and conveyor.pdf



Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.



Air shower is a kind of partial clean equipment which is installed at the partition between the clean and non-clean rooms. It’s used for people and goods to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.



We can assembly air showers or passages in various lengths as per the number of people that may enter into the clean room.
Shower means: one side shower, double sides shower, three sides shower, top shower.





Roller conveyor applies to convey all kinds of goods such as boxes, bags, pallets etc., the bulk material, small article and irregular goods should be put on pallets or turnover box. Roller conveyor can convey single heavy material, or bear the larger impact load.
Roller line is easy to link, it can combine multiple roller lines and other conveyor or special machines to form complex logistics conveying system to complete various process.





Both forward moving and Backward moving



Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.



Applications: For Pharmacy, electronic, food and other high claenliness clean room.



Pass box material: Powder coated steel or stainless steel

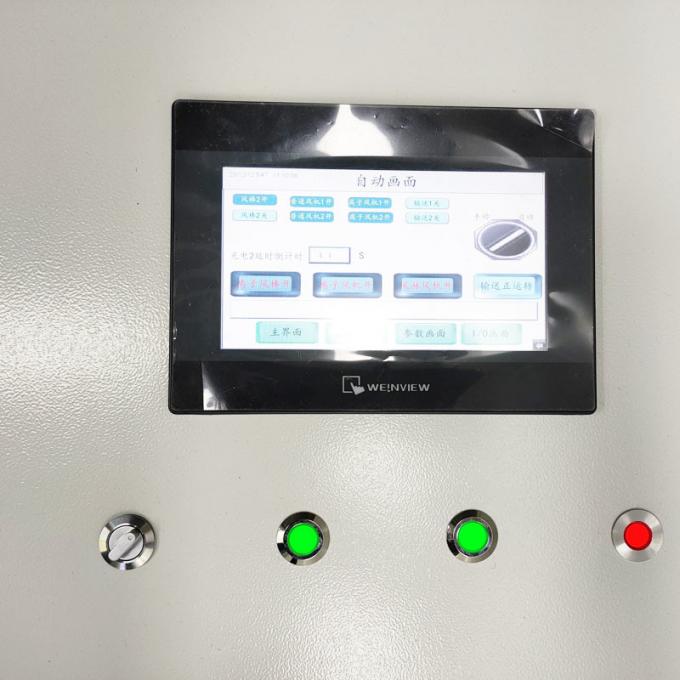

Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.



Features:



Product  Pass box and conveyor
External size for pass box  W1300*D1200*H1500mm
Internal size for pass box  W800*D1200*H1400mm
Material for pass box Powder coated steel
Doors Anti-static PVC strip curtain
Blower fan  2sets, AC380V, 50HZ, 3PH
HEPA filter 570*570*69mm  2 pcs
HEPA filter efficiency 99.99% at 0.3um
Pre filter  2 pcs, G3
UV light 1 pcs





Size for Conveyor: L4000xW700mmxH700mm



Material for Conveyor: Stainless steel 304



The steps of Pass box and Conveyor:





Princeples:



They are cominbed with pass through box and conveyor.

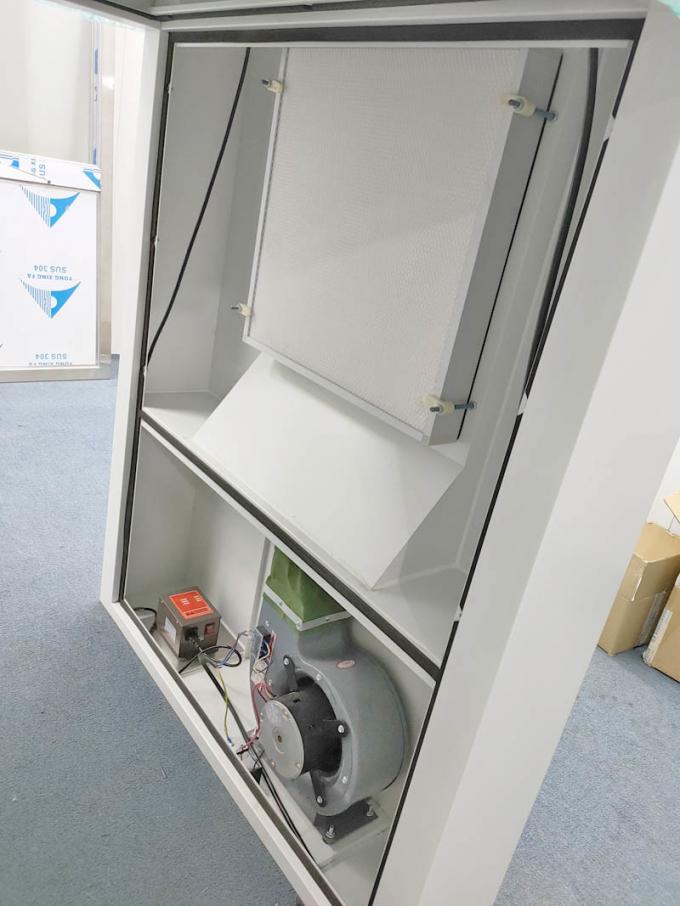

Pass through box's material is powder coated steel or stainless steel,  it is composed of two automatic sliding doors, HEPA filters,, primary filters, Blower fans, Nozzles. When goods into pass through box, it will be infrated by sensor to blowing to remove the dust particle from goods, the two doors are interlocked, it means that one door open, the other one must be closed, therefore it is prevent the airflow convection between non clean room and clean room, to keep the cleanliness of clean room.



The conveyor is L type, which is usually installed in the corner of workshop, suitable for the narrow space.



The workers put the goods on the conveyor, it is moving to the entrance door of pass box, it will open automatically, then moving on into pass box, the 2 doors close and the conveyor stops, then the pass box is blowing and reomving the dust particles from goods, after blowing, the exit door will open automatically, the conveyor will conintues to moving on , the exit doors will be closed, when goods arrive the end point and no worker takes it away, the coveyor will stop.





Features:



The conveyor material: Stainless steel rollers or belt.

The conveyor running: forward working/backward working/Both forward and backward working.

 The speed of conveyor: 0-0.1m/s



Optional accessories for Pass Box:

1. E-stop

2. UV light

3. Anti-static PVC curtains for doors, if customers want to reduce the cost.



we can offer special size and requirement as per our clients.



Drawing of pass box and conveyor

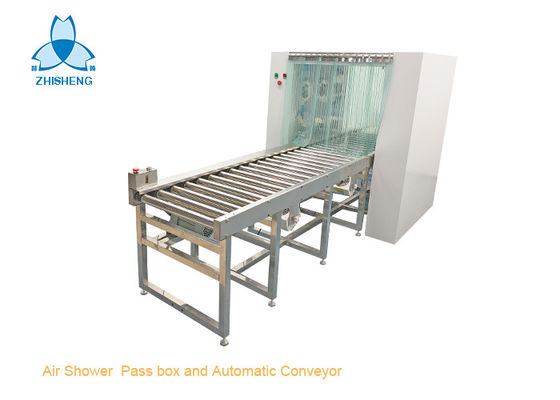

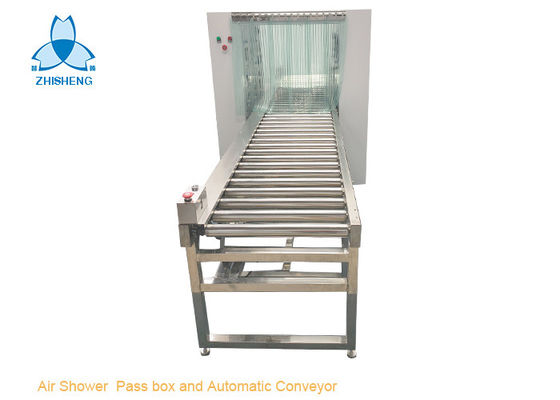

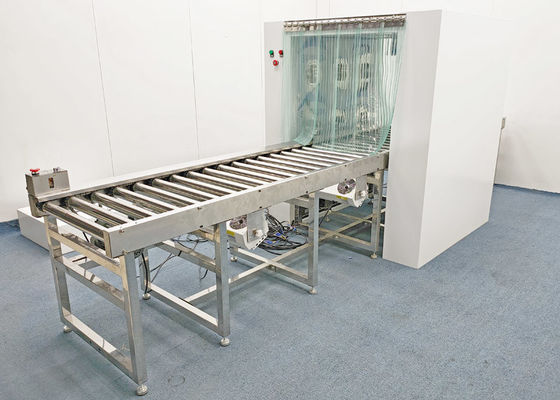

Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 0



Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 1

Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 2

Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 3Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 4

Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 5Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 6Cleanroom Steel Air Shower Pass Box And Automatic Roller Conveyor 7







Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.
