Two Persons Stainless Steel 304 Shoe Sole Washer With Handrail

Two Persons Stainless Steel 304 Shoe Sole Washer With Handrail

MOQ: 1 Set/Sets
Standard Packaging: plywood pallet or case
Delivery Period: 15 days after receive prepayment
Payment Method: L/C, T/T, Western Union
Supply Capacity: 1000 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
ZHISHENG
Certification
CE, ISO9001
Model Number
ZS-SJ-1555
Condition:
New
Material:
SS304
Clean Type:
Water
Use:
Wash Sole
Cleaning Process:
Cold Water Cleaning
Cleaning Type:
Immersion / Soak
Industry Used:
Pharmaceutical Cleaning
Power(W):
20W
Dimension(L*W*H):
1555x750x120mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
AC220V/50HZ/1PH
Warranty:
1 Year
Handrail:
2 Sets
Minimum Order Quantity:
1 Set/Sets
Packaging Details:
plywood pallet or case
Delivery Time:
15 days after receive prepayment
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
1000 Set/Sets per Month
High Light:

Stainless Steel 304 Shoe Sole Washer

,

Two Persons Shoe Sole Washer

,

Stainless Steel 304 Sole Cleaning Machine

Product Description

Stainless Steel 304 Shoe Sole Washer for two persons with handrail 2021 design​



1. The appearance of the machine is new designed, which is more good-looking and comfortable.



2. Improve the workmanship



3. Imporove the quality, reduce the faults, make sure the lifetime longer.



Auto Shoe Sole cleaner is used before the clean room or clean zone, to keep the cleanness of clean room or clean zone.



Automatic sole cleaning machine is suitable for all kinds of industries with high environmental requirements, such as: family, hotel club, aerospace, high-speed rail industry, electronic appliances, machinery industry, hardware industry, food industry, manufacturing industry, mobile phone industry, aquaculture industry , automation industry, exhibition hall exhibition industry, laboratory research and development industry, semiconductor production, medical industry, purification system, etc., especially the clean room workshop, now all the clean room workshops need the sole cleaning machine, the sole cleaning machine becomes the clean room An essential cleaning device for the enterprise.



Where to USE



Clean room and/or Sanitary Area

For Kiechen,Semi Conductor, Electronics, Electron, Food, Pharmaceutical Cosmetic Company Lab/ Hospital and so on.



Features:



Automatic working



Easy to clean and maintain



Wet clean type to clean dust and sterilization



Can add disinfectant into the water tank to sterilizing



Application and Features:



Shoe sole washing and cleaning by water:



Shoe Sole cleaner can effectively remove the stubborn stains on the sole, such as oil, mud, particles while people enter into the clean room or critical clean work zone. It is possible for this device to use a detergent along with disinfectant together. Therefore, it is washing and cleaning by water, no dust and no water spray when it is cleaning.



Brushes:



The distance between brush is just 19mm, so it is effective to clean the sole when people walk on the cleaning zone. People is on the brush for 5-10 seconds, then go alone to the mat to absorb the water on the sole, then it is OK. When people leave the machine, it will stop automatically in 10 seconds. After 30 minutes working, the sole cleaner can be water out automatically.



The times can be adjustable. By the way, it needs to clean the rubbish once every 2 days.



Standard size and specifications:





Model External size (LxWxH)mm Cleaning area size (mm) Drying area size(mm) Voltage Power of motor Power of Pump

ZS-SJ-1055

(ZS-ZD-1000)

1055*750*120 522*365 522*360 DC24V 150W 28W

ZS-SJ-2000

(ZS-ZD-2000)

2000*750*120 885*552 760*552 DC24V 150W 28W

ZS-SJ-1860

(ZS-ZD-1860)

1860*780*120 885*552 560*552 DC24v 150W 28W

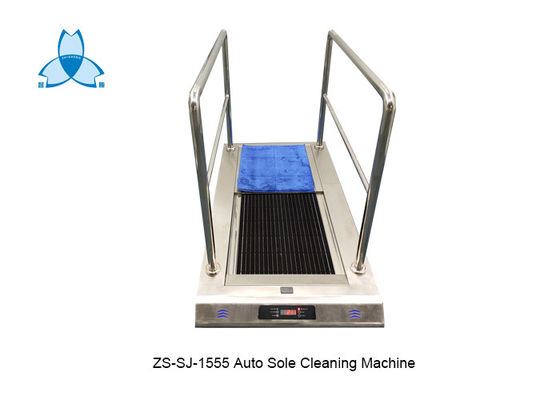

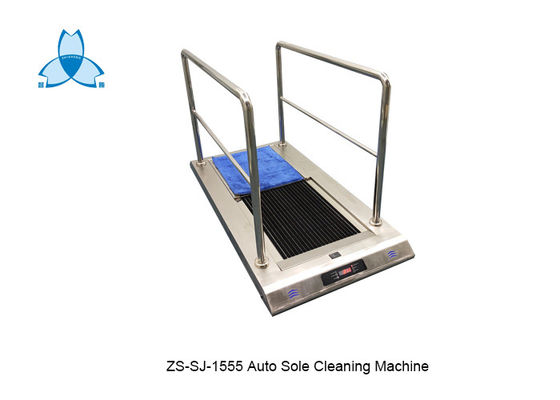

Photos:





Two Persons Stainless Steel 304 Shoe Sole Washer With Handrail 0

Two Persons Stainless Steel 304 Shoe Sole Washer With Handrail 1Two Persons Stainless Steel 304 Shoe Sole Washer With Handrail 2

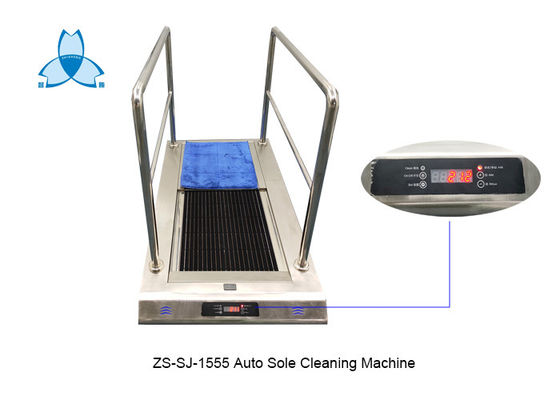

Ⅵ.Control panel display







1. Technical parameters:



Working voltage: AC100-240V, 50/60Hz

Working temperature: -200C-850C



2. Main functions of control panel:



(1) When people pass through the machine, it is inducted and the rotating motor drives the beld brushes to move and clean the soles , and sets the number of persons.



(2) It has the function of automatic water supply and replenishment, which can maintain the water balance inside the machine.



(3) There is a water shortage alarm function.



(4) The function of automatic drainage (larger garbage or sedimentary debris needs to be manually cleaned with a suction device on a regular basis).



(5) There is a manual drainage function.



(6) There is a manual dirt suction function.



(7) With power-off memory function



(8) It has the function of automatically stopping the water supply when the power is turned off to prevent the water from overflowing.



(9) ON/OFF functions





How to maintain the machine:



1. Control system: No water is allowed. No water into Motor and electric parts !



2. Draiange pump: Should completely clean up the sediment in half a month



3. Must change the water every day, and must clean up garbage every day, fobid to drop garbage into the machine.



4. Need to put on grease on the bearing every two months.





Contact information:

Contact person: Rita Guo

Email: sales@cleanroom-airshower.com; ritagly@dgzsjh.com.cn

Website: www.cleanroom-airshower.com
