Corner Type / L Type SS 304 Air Shower Room For Materials

Corner Type / L Type SS 304 Air Shower Room For Materials

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
ASS-1450D-1.25-L
Condition:
New
Dimension(WxDxH):
W1450xD1250xH2100mm
In Size(MM):
W1100xD850xH1960
Blowing Side:
2- Side Blowing
Material:
T=1.2 Stainless Steel 304
Suitable:
For Materials
Voltage:
AC380V, 50 Hz, 3PH
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

SS 304 Air Shower Room

,

L Type Air Shower Room

,

Corner Type Stainless Steel Air Shower

Product Description

L type Stainless steel 304 Air Shower room For materials, Corner type Air Shower ​



Air shower.pdf



According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.





Size and Specifications:





Product L type Stainless steel 304 Air Shower room For materials, Corner type Air Shower
External size W1450xD1250xH2100mm
Internal size W1100xD850xH1960mm
Material: T=1.2 mm stainless steel 304
Doors type W=800mm single-leaf SS304 swing doors
Door closer 2 SETs
Electric lock 2 SETs
Indicator lights Green / Red/Yellow
Blower fan 2sets,capacity: 1400CMH/set
99.99% HEPA filter 610*610*69mm 2 pcs
Pre filter 1 pcs
Nozzle 6+6=12pcs
Bloweing type 2 -side blowing, wind speed: 20-25m/s
Control system LCD display, electric interlocked,automatic blowing by photoelectric sensor
Photoelectric snesor Omron brand 1pcs
Philips LED light 1x8W





Drawing

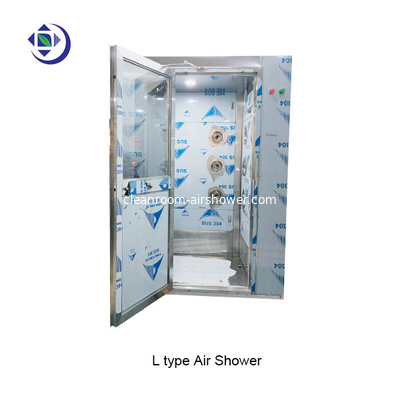

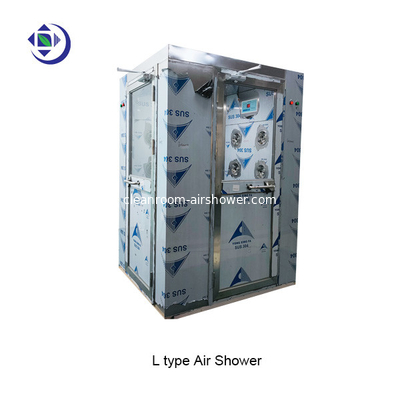

Corner Type / L Type SS 304 Air Shower Room For Materials 0Corner Type / L Type SS 304 Air Shower Room For Materials 1



Metal Indicator light -----Good-looking, high quality

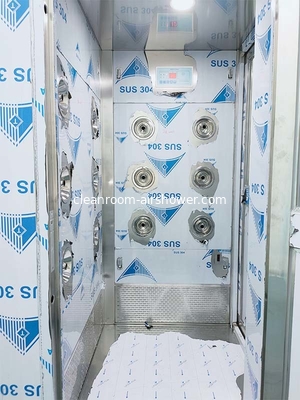

Corner Type / L Type SS 304 Air Shower Room For Materials 2

Lock Screws---It is easy for opening the panel inside and maintain air shower.

Corner Type / L Type SS 304 Air Shower Room For Materials 3



Corner Type / L Type SS 304 Air Shower Room For Materials 4

Corner Type / L Type SS 304 Air Shower Room For Materials 5





Contact information:



Zhisheng Purification Technology Co.,Ltd.

Dongguan Lihong Purification Technology Co.,LTd


Add :No.186, Zhouwu Road, Dongcheng Zhouwu District, Dongguan City, Guangdong, China 523118


Tel:+86-769-22037338 Fax:+86-769-22037328


Mobile phone(whatsapp):+86-13712072567


Wechat: +86-13712072567


Email:sales@cleanroom-airshower.com;sales-guo@zsfilters.com



Website:www.cleanroom-airshower.com
