| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |
Outside Spray Coating Inside Stainless Steel Air Shower For 1-2 Person
Clean Room Air Shower Characteristics:
This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower
Clean Room Air Shower Features:
1. Photoelectric control, automatic shower.
2. Circulated air design keeps shower area clean in non-shower state.
3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4. Made as negative pressure and anti-exploding air shower according to users’ requirement.
5. Equipped with the device to remove static.
6. Carry on air brake, cushion type and other particular design, manufacturing.
Features:
| Product type | Air shower for clean room |
| Material for casing | 1.2mm cold rolled steel with powder coated /stainless steel (SUS#201 or SUS#304) |
| Material for doors | Stainless steel / aluminum alloy / powder coated steel |
| Nozzles | SUS#304 |
| Door leaf | Single leaf / double-leaf |
| Door type | Manual swing door/ Auto sliding door/ High speed shutter door |
| Blowing way | Top-side blowing, single-side blowing, two-side blowing or three-side blowing |
| Control system | English intelligent control panel with human voice (If client requrie control by PLC, it is also ok) |
| Locks | Electric mortise lock or Electric magnetic lock |
| HEPA filter efficinecy: | H13 / H14 |
| Pre filter | G3 / G4 |
| Light | Philipines brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | 380V/50HZ/3PH or 220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Standar size and specificaton:
| Model | Air shower | Cargo Air shower | ||||
| AS-1200D-1 | AS-1400D-1 | AS-1400D-1.5 | AS-1400D-2 | CAS-1700T-2 (2 Modules) | CAS-1700T-4 (4 Modules) | |
| Ex size WxDxH (MM) | 1200x1000x 2050 | 1400x1000x 2050 | 1400x1500x 2050 | 1400x2000x 2050 | 1800x2000x2050 | 1800x4000x 2050 |
| In size WxDxH (MM) | 800x900x 1920 | 800x900x 1920 | 800x1400x 1920 | 800x1900x 1920 | 1200x1900x 1920 | 1200x3900x 1920 |
| Doors | Swing door/sliding door/shutter door Door frame: SS/ALU | |||||
| Suitable person | 1 | 1 | 1-2 | 2-3 | Cart | |
| Nozzles | 12(two side) | 12(two sides) | 18(two sides) | 24(two sides) | 32(3- side) | 64(3- side) |
| Fan | #4250x1 set | #4195 x 2 sets | #4195x2sets | #4250x2sets | #4195x4sets | #4195x8sets |
| Power(W) | 1000W | 850W | 850W | 2000W | 1700W | 3400W |
| HEPA filter | 610x610x69 1pcs | 610x610x69 2pcs | 610x610x69 2pcs | 915x610x69 2 pcs | 610x610x69 4pcs | 610x610x69 8pcs |
| Nozzle | ф 25 or 32mm | |||||
| Voltage | 380V/50Hz/3Ph; 220V/50Hz/1Ph | |||||
| Control system | IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked. | |||||
Note: Customer's size and specification can be acceptable.

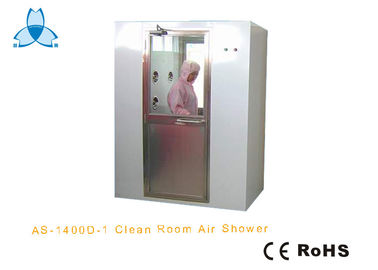

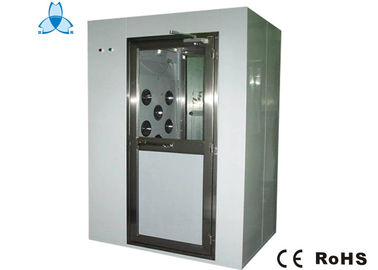

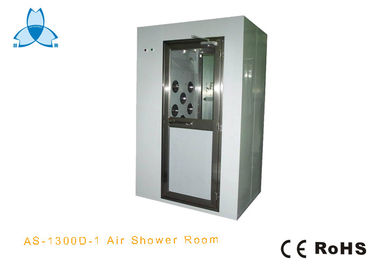

Air Shower Pictures:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
ZHISHENG Services
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
