| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |
Spray Paining Steel Manual Swing Doors Air Shower Room For Vietnam Customer
(Small Top and Small Base)
Description:
Air shower is a necessary passage for person entering clean room in order to minimized the amount of
particulate contaminant, achieve workplace strict clean purification standards. Personnel move through
the air shower while particulate contaminants are blew off by the clean high speed air. So the duct cannot
be brought into clean area.
Air shower has the features of elegant appearance, compact structure, easy maintenance and simple operation.
Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and
infrared sensing device according to customers' needs.
Technical Parameter:
Material: T=1.2MM Coll rolled steel for air shower cabinet, SS201 for the botton
Overall Dimension(mm): 1400(W)*1500(D)*2100(H)
Air Showern Work Area Dimension(mm): 800(W)*900(D)*1960(H)
Nozzle Number: 9+9=18 (two-side blowing);
Nozzle Material: stainless steel,rotatable
Diameter of Nozzle Mouth: Φ32mm
Air Velocity at the Nozzle: ≥20-25m/s
Filters: pre-filter*2pcs, HEPA filter*2pcs 610x610x69mm ,
Filters Efficiency: ≥99.99% (sodium flame method), particle size≥0.3µm
Lamp: LED lamp*1pcs
Air Shower Mode: automatic and manual
Fan: low-noise high-pressure centrifugal fan*2sets; Power: 0.4KWx2sets
Shower Time: 0-99s adjustable
Control Panel: New Touch Screen LCD Display, Electronic Interlocking, Automatic blowing by OMRON Photoelectric sensor.
Power Supply: 220V,50HZ, Single-phase
Package: plywood case
Door: Manual Single-leaf Swing door
Installation: It doesn't need installation. After connecting the power it can be used.
Size and specificaton:
| Product | Spray Paining Steel Manual Swing Doors Air Shower Room |
| Model | AS-1400D-1.5 |
| External dimensions (mm) | W1400*D1500*H2100 |
| Internal dimensions WxHxD(mm) | W800*D1400*H1960 |
| Doors | 2 sets of swing door |
| Door closer | 2 sets (outside) |
| Lock | 2 sets of electric locks interlocked |
| Suitable person | two person |
| Nozzles | 9+9=18 PCS(2-side blowing) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.380 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | 99.99% @ 0.3um |
| Photolectric sensor | 1 PCS |
| Fluorescent Lamp | 1 x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99s Adjustable |
| Spurt wind speed | 20~25m/s |
| Power Supply | AC220V/50Hz/1Ph |
| Control system | Microcomputer control circuit board |
Note: Customer's size and specification can be acceptable.

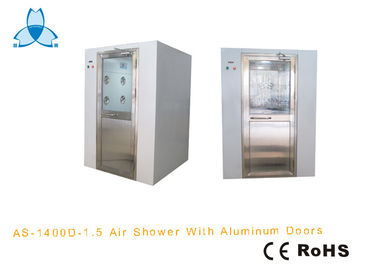

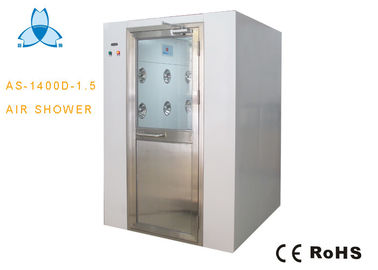

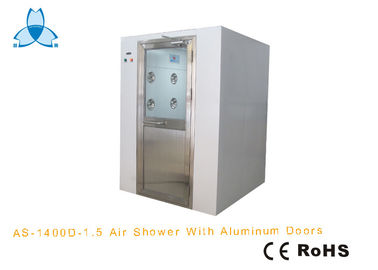

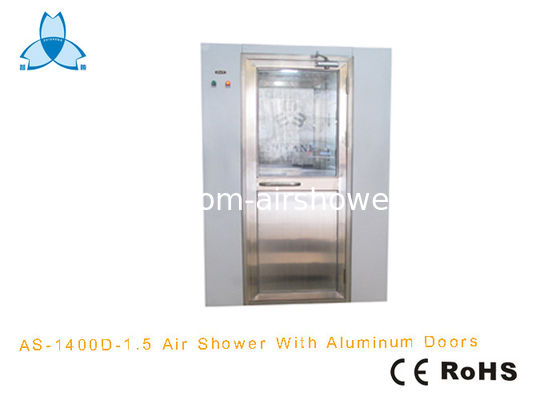

Photo of air shower
Drawing:
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international
Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
