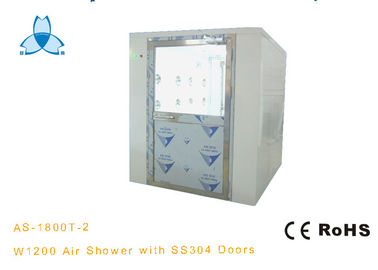

Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed

Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
AS-1800T-2
Dimension:
W1800xD2000xH2000mm
Surface Finish:
Sraying Painting
Color:
White
Wind Speed:
22-25m/s
Door:
Stainless Steel 201 Swing Doors
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

air shower room

,

air shower system

,

Air Shower System Single Leaf Door

Product Description

Single Leaf Large Door W1200mm Industrial Air Shower For 4 Person



Air shower.pdf



Description:



Air shower is a necessary passage for person entering clean room in order to minimized the amount of



particulate contaminant, achieve workplace strict clean purification standards. Personnel move through



the air shower while particulate contaminants are blew off by the clean high speed air. So the duct cannot



be brought into clean area.



Air shower has the features of elegant appearance, compact structure, easy maintenance and simple operation.



Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and



infrared sensing device according to customers' needs.



Technical Parameter:



Product type Single Leaf Large Door W1200mm Industrial Air Shower For 4 Person
Material for casing Power coated steel for mainbody, stainless steel for the base
Material for doors Stainless steel 201 single-leaf swing doors
Nozzles Stainless steel
Door leaf Single-leaf
Door type W1200mm Manual swing doors
Blowing way 3- side blowing
Control system English IC intelligent control panel with English human voice
Locks Electric  lock
HEPA filter efficinecy: H13
Pre filter G3
Light Philipines brand
Photoelectric sensor OMRON brand
Shower time 0-60s adustable
Spurt wind speed 20-25m/s above
Power supply AC 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



Size and specificaton:



Product Single Leaf Large Door W1200mm Industrial Air Shower For 4 Person
Model AS-1800T-2
External dimensions (mm) W1800*D2000*H2000MM
Internal dimensions WxHxD(mm) W1200*D1900*H1920MM
Doors 2 sets of swing door
Door closer 2 sets (outside)
Lock 2 sets of electric locks interlocked
Suitable person two person
Nozzles 12+12+8=32 PCS(Three-side blowing)
Blower fan 4 sets
Blow power(W) 1600W
Weight(kg) Appro.450
HEPA filter size 610x610x69mm
HEPA filter qty 4 PCS
HEPA filter efficiency 99.99% @ 0.3um
Photolectric sensor 1 PCS
Fluorescent Lamp 2 x 20W
Nozzle diameter 32mm
Air shower time 0-60 s Adjustable
Spurt wind speed 20~25m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control circuit board



Note: Customer's size and specification can be acceptable.



Air Shower Details:



Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed 0

Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed 1

Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed 2



Drawing:



Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed 3

Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed 4

Industrial 4 Person Air Shower System Single Leaf Large Door , 22-25m/s Wind Speed 5



Packing: Plywood Case



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international



Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and



the units individual results for each unit.



Testing before shipment:



1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.






Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
