| MOQ: | 1 set |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 200 Set/Sets per Month |

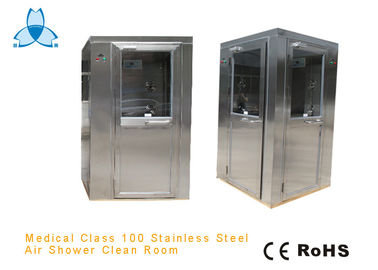

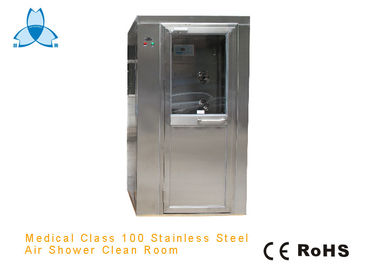

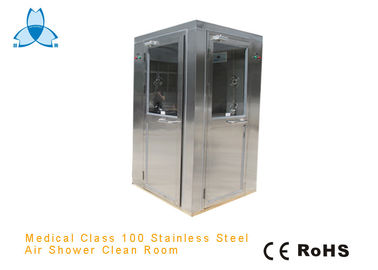

Medical Class 100 Stainless Steel Air Shower Clean Room Laboratory
L type Single-leaf Swing doors, width 800mm
Big Top and Big Base
What is an air shower?
Air showers are antechambers that help decontaminate personnel prior to their entering a critical environment.
Decontamination is completed through a cycle where air is blown through nozzles that are evenly distributed throughout the enclosure walls.
This air is recirculated through filters (typically HEPA filters) and clears dust and dirt particles off the bodies of personnel.
Can custom air showers be manufactured?
ZHISHENG offers both standard and custom air showers. Please contact us for more information.
How often do the HEPA filters need to be replaced?
The frequency at which the HEPA filters need to be replaced depends on each application.
Test when the filters need to be replaced if air flow at the air nozzles reduces significantly.
Terra Universal provides a “Run Times” feature where personnel can keep track of how much air shower operation time and cycles have elapsed to help in setting up a filter replacement maintenance protocol.
How do you ship your air showers?
Normally ships air showers as pre-assembled systems.
However, you can request to have your order shipped disassembled for easier transport through standard doorways or more space-restrictive access areas.
Features:
| Product type | Full Stainles steel Personal Cleanroom Air shower |
| Material for casing | T=1.2 Stainless steel 304 for Outside and inside casing |
| Material for doors | Stainless steel 304 with half temper glass |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Manual swing door |
| Blowing way | Two-side blowing, |
| Control system | English IC intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | H14 |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | AC220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Standar size and specificaton:
| Product | Full Stainles steel Personal Cleanroom Air shower |
| Model | ASS-1300T-1.3 |
| External dimensions (mm) | W1300*D1300*H2100MM |
| Internal dimensions WxHxD(mm) | W800*D1200*H1960MM |
| Doors | 2sets of SS single-leaf swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric locks interlocked |
| Suitable person | One person |
| Nozzles | 6+6+4=16 PCS(3-side blowing ) |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| Weight(kg) | Appro.280 |
| HEPA filter size | 610x610x69mm |
| HEPA filter qty | 2 PCS |
| HEPA filter efficiency | H14 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 1x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC220V/50Hz/1Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air Shower Details:
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
|
|
