Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors

Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: 10-15 days after receive prepayment
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
AS-3200D-6.5-SD
Condition:
New
Ex Dimension:
W3200xD6500xH2700MM
Doors:
PVC Fast Rolling Shutter Doors
Control:
PLC
Wind Speed:
22-25m/s
Class:
100 Class
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
10-15 days after receive prepayment
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

clean room air showers

,

air shower cleanroom

Product Description

Huge Modular Cargo Air Shower tunnel With 3 Sides Nozzles With Auto PVC Rolling Doors For Robot



Doors: Soft PVC Fast Speed Scrolled Doors



Door Net Width:W2500mm x H2500MM



Air shower with high speed shutter door.pdf



Description:



Air Shower Tunnels, also known as down flow booths are used to remove particulate contamination from



personnel, their clothing and personal protective equipment. They are typically specified for personnel



entering lunch and break areas, clean rooms and sterile rooms.



Modular construction allows assembling the basic floor plan styles side by side or end to end.



Air Shower Tunnel  for clean room is a kind of partial clean equipment with rather strong universality and



is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters



to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the



clean area and maintain the normal working status.



Capacity - A minimum of 15 seconds retention time is required to clean the dust off personnel clothes.



As retention time increases, the amount of dust removed also increases up to a maximum at about 45



seconds. Additional residence time beyond 45 seconds provides little additional benefit.



Cycle time is adjustable by rotating a simple thumbwheel located in the electrical cabinet.



Retention time



Can be increased to accommodate large volumes of people by increasing the length of the air shower



to form a tunnel.



Air Shower Tunnels are formed by assembling multiple modular sections together.



Features:



1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.



(One door in open state, the other door must in close state. When people enter air shower, the system will



shower automatically by photoelectric sensor)



2. Air shower time from 1 to 99 seconds which can be adjustable



3. Adopt Pre filter and HEPA filter



4. The door, bottom-board, nozzles are used of stainless steel, good appearance.



5. When air shower is used to pass cargo, it is without bottom-board.



Optional accessory:



1. Manual swing door / automatic sliding door/High speed scroll shutter door



2. HEPA filter or ULPA filter



3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



4. Common fluorescent lamp / UV Sterilizer lamp



5. With voice announce





Parameter:



Product type  Huge Modular Cargo Air Shower tunnel With 3 Sides Nozzles With Auto PVC Rolling Doors For Robot
Material for casing T=1.2MM Steel with Spray painting for outside, stainless steel 304 for inside, no base
Material for doors Soft PVC
Nozzles Stainles steel
Door leaf SIngle
Door type High Speed Shutter Doors
Blowing way 3-side blowing
Control system

English intelligent control panel with human voice and

PLC control system

Locks Electric interlocked
HEPA filter efficinecy: 99.99%
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 22-25m/s
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



 size and specificaton:



Product Huge Modular Cargo Air Shower tunnel With 3 Sides Nozzles With Auto PVC Rolling Doors For Robot
Model AS-3200D-6.5-SD
External dimensions (mm) W2300*D6500*H2700
Internal dimensions (mm) W2500*D6500*H2500
Doors 2 sets of High speed shutter doors
Door closer NONE
Lock  electric  interlocked
Suitable  Both People and Goods
Nozzles 48+48=96PCS(2-side blowing)
Blower fan 24 sets
Blow power(W) 9600W
Weight(kg) Appro.1600
HEPA filter size 1220x610x90mm
HEPA filter qty 12PCS
HEPA filter efficiency H13
Photolectric sensor ORMON 2 PCS
Fluorescent Lamp Philips 6x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 22-25m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

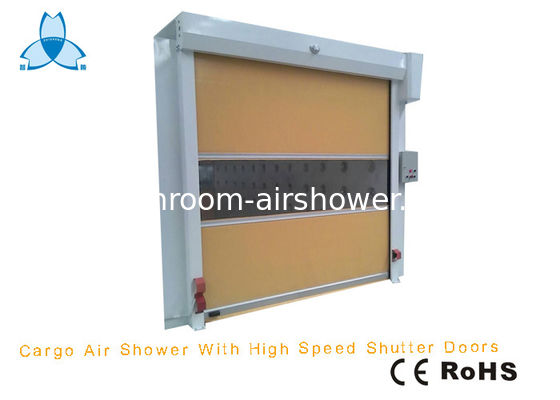

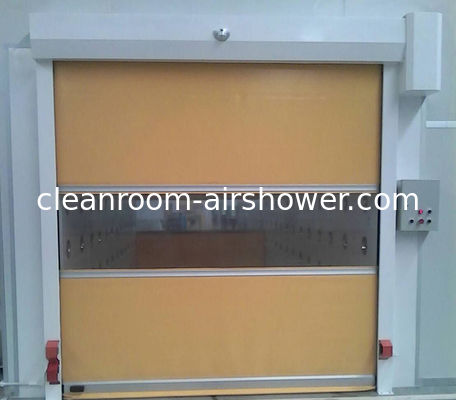

Air shower pictures:



Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors 0Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors 1

Drawing Of Air Shower Tunnel





Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors 2Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors 3Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors 4Huge Modular Cargo Air Shower Tunnel With 3 Sides Nozzles , Auto PVC Rolling Doors 5



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
