Commercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA Filter

Commercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA Filter

    • Commercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA Filter
    • Commercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA Filter
  • Commercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA Filter

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001, Rohs
    Model Number: ZS-GW610

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 500 pieces per month
    Contact Now
    Detailed Product Description
    Frame: Aluminum Media: Fiberglass
    Size: 610*610*69 Type: Panel Type
    Separator: Hot Glue Class: H13


    Commercial Air Conditioner HVAC System H13 Hepa Panel Filter, Mini Pleat HEPA Filter


    Description:

    Hepa panle filter for trapping dust and particles below 0.5um suspended solids by filtration as the end of a variety of filtration systems.
    HEPA panel filter is  widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.
    Applications:

    It is an ideal terminal filtering device for the clean-up system of FFU, clean bench, clean booth, clean room etc.
    It is extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron,semiconductor, precision mechanism, pharmacy, hospital and food, etc., which required relatively high cleanliness factors.

    Material and operating conditions:


    External frameCardboard, aluminum alloy or GI
    SealantPolyurethane
    Separatorhot-melt
    Filter mediaPP, PP/PET, fiberglass or HV fiberglass
    Maximum operating temperature80°C
    Maximum operating humidity80%
    HEPA filter Efficiency≥95%-99.995%



    Features:

    1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
    2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
    3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
    4: The sealant around the media so that the air filter without any air leaking,
    the frame can be wooden, aluminum,galvanized or stainless steel.
    5: Laser to scan the each air filter one by one,
    6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
    95%-99.99995%@0.3um (EN1822).
    7: Each air filter with test report accompany

    Size and Specification:


    ModelDimensions(mm)

    Rated air flow

    (m³/h)

    Initial resistance

    (Pa)

    Efficiency
    (MPPS)

    ZS-GW305-1305x305x50180≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW305-2305x305x69250≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW610-1610x610x50700≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW610-2610x610x691000≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW915-1915x610x501100≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW915-2915x610x691500≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW12201220x610x692000≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW305-2305x305x80300≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW610-3610x610x801300≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW915-3915x610x801900≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)
    ZS-GW915-3915x610x901900≤220(fiberglass)≥99.97%-99.995%
    (H13-H14)

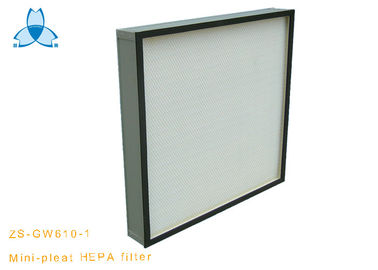

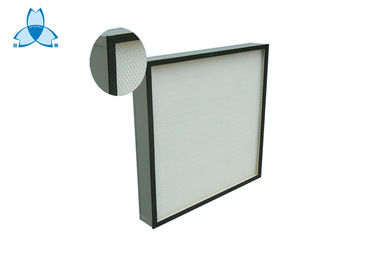

    Pictures of HEPA filter

    Commercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA FilterCommercial Air Conditioner HVAC System H13 Hepa Panel Filter Mini Pleat HEPA Filter


    Payment Term:

    40% prepayment by T/T at order, the balance of payment before shipment.

    Packing: Carton and Pallet



    Delivery time:

    Production period:15-20days
    • Shipping notice or insurance for you after the goods is shipped.

    After sales service:

    We respect your feed back after receive the goods.
    • We provide 1 year warranty after goods arrive.
    • We care of your complain within 48hours.
