AC220V HEPA Fan Filter Unit For The Ceiling In Clean Room, box fan Filter With Blower Fan And HEPA Filter
0.3 μM 220V Fan Filter Units FFU With HEPA Filter And Pre Filter Size 615x615mm , Powder Coated Steel Material
|Rated Air Flow:||2000m3/h||Powder Supply:||300W|
|Voltage:||220V/50HZ/1PH||Pre Filter:||G3 Or G4, Optional One|

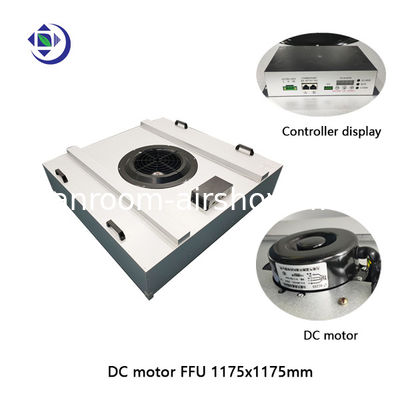

DC motor FFU Fan filter unit 4x4 feet for clean room
Fan Filter Unit.pdf
Motor: 1 set (AC220V, 50HZ,1PH)
HEPA filter'e efficiency: 99.99% at 0.3um
Pre filter: G3 or G4, optional one
Fan filter units are stand-alone units with integrated HEPA-filter, fan and control system.
Fan filter unit is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the the core when doing clean room for a give space including clean booh, laminar flow cabinet, clean bench and modular clean room.
They supply purified air to cleanrooms and laboratories within the life-science, food-and beverage and microelectronic industries by removing harmful airborne particles from recirculating air. Unlike pressurized cleanroom ceiling plenums, FFUs create a positive room pressure that reduces the contamination risk from potential ceiling bypasses.
1. Low energy consumption
2. Low noise
3. Uniform velocity and large airflow
4. Can remote controlled by computer
Fan filter Unit Applications:
1. For the ceiling of clean room
2. For the clean booth
3. Precison machinery
4. Laser industry precision machinery
5. The production lines which require high purification grade.
6. Pharmaceuficals, medical science and hospital
Size and specifications:
Control panel, Remote control, Primary filter, Pressure gauge
Photos of Fan Filter Unit
Group Control is save the cost and the power, and it is easy for controlling the large quantities of fan filter units in the clean room.
Computer group control
If clean room requires lots of FFU, we suggest DC motor FFU and group controlled, these it is easy to be controlled and save the power.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
40% prepayment by T/T at order, the balance of payment before shipment.
Contact Person: Miss. Rita Guo
