Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors

Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors
Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors

Large Image :  Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: ZHISHENG
Certification: ISO 9001/CE/ROHS
Model Number: AS-2200T-1.5-AD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors

Description
Ex Dimension: W2200xD1500xH2200mm In Dimension: W1600xD1500xH2000mm
Color: White Wind Speed: 22-25m/s
Type: Double-leaf Sliding Doors After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year
High Light:

air shower room

,

air shower clean room



Cargo Air Shower For Clean Room With Width 1600mm Automatic Double-leaf Sliding Doors



Width 1600mm Stainless steel Double-leaf Swing Doors



Small top and small base



Description:



Cargo Air shower is a frequently used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.



Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.



Application:  Cargo Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.





Features:



1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.



2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.



3. Base and nozzles are used of stainless steel



4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.



5. Spurt wind speed: 22-25 m/s





Technical Parameter:



Product type Cargo Air Shower For Clean Room With Width 1600mm Automatic Double-leaf Sliding Doors
Material for casing Cold rolled steel with powder coated for outside and outside cabinets
Material for doors Stainless steel Double-leaf swing doors
Nozzles Stainless steel
Door leaf Double-leaf
Door type W1600mm Automatic sliding doors
Blowing way 3- side blowing
Control system English IC intelligent control panel with English human voice
Locks Electric  lock
HEPA filter efficinecy: 99.99% at 0.3um
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 20-25m/s above
Power supply AC 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



Size and specificaton:



Product  Cargo Air Shower For Clean Room With Width 1600mm Automatic Double-leaf Sliding Doors
Model AS-2200T-1.5-AD
External dimensions (mm) W2200*D1500*H2200MM
Internal dimensions WxHxD(mm) W1600*D1500*H2000MM
Doors 2sets of Double-leaf sliding door
Door closer None
Lock 2sets of electric locks interlocked
Suitable person 3-4 persons
Nozzles

9+9+6=24 PCS (3-side blowing)

Blower fan 2 sets
Blow power(W) 2000W
Weight(kg) Appro.480
HEPA filter size 915x610x69mm
HEPA filter qty 2 PCS
HEPA filter efficiency 99.99% at 0.3um
Photolectric sensor ORMON 1 PCS
Fluorescent Lamp Philips 1x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 25-27m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control circuit board



Optional:  1. Emergency stop buttons



                 2. Ionizer Nozzle



                 3. Interphone

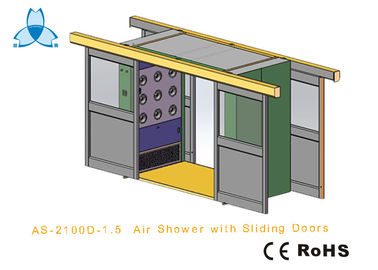

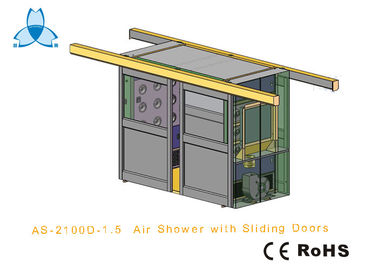

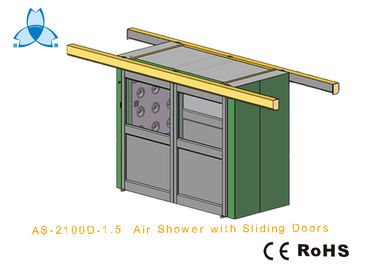

Air Shower Pictures:



Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors 0

Cargo CleanRoom Air Shower With Width 1600mm Automatic Double - Leaf Sliding Doors 1





Packing: Plywood Case



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international



Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and



the units individual results for each unit.



Testing before shipment:



1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:



1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Air Shower Questions:



The below questions will help establish what air shower you need:



1. Is the air shower being used to enter a clean room environment?



2. Is the air shower being used to exit a contaminated enviroment?



3. Will the air shower be washed down or cleaned with harsh chemicals?



4. Will the air shower be used in a food processing facility?



5. How Mnay people will be going through the air shower at a given priod of time?





Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.




Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
