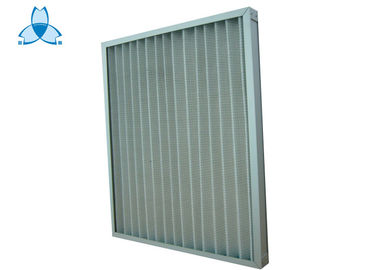

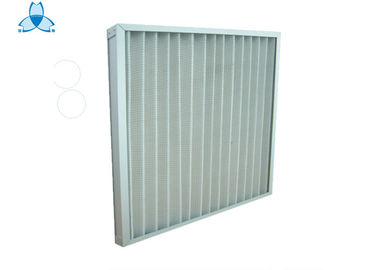

Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning

Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning
Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning

Large Image :  Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO9001, Rohs
Model Number: ZS-CBA-1
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 1000 pieces

Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning

Description
Frame: Common Sheet Media: Non-woven Fabric
Size: 595x595x21mm Class: G3/G4
Color: White
High Light:

pre filter air filter

,

air purifier pre filter


Aluminum Alloy Primary Efficiency corrugated - Type Pre Air Filter

Description:

They are manufactured with non-woven and glass fiber , etc. as the filtering materials .they wedge-shaped folds are used to enlarge the filtering area . They can also be manufactured to be a platestructure clamped with wire netting or supported with an inside metal framework and equipped with a metal outside frame . they have the characteristics of low resistance , long service life , can be washed , economy and durability , etc.

Application :

They are generally used in the pre-filtration of the central air conditionings and centralized ventilation systems and the pre-filtration of the gas turbines and the air compressors.

Structure :

The inside structures of the filter are generally divided into keel framework and frame include hardihood and uniform distribution of filtering materials , but its manufacture takes time and energy . They characteristics of the frame framework include convenience in the exchange of filter materials and time saving for its manufacture , but its strength is slightly poorer than that of the keel framework
Feature:
1) High dust-contain capacity
2) Large filtering area
3) Cheap price
4) conenvient to replace media material

Specification:

Product DetailsTypePanel filter, Pleated filter
FeatureLarge dust capacity,low drop
FrameCardboard/aluiminum/galvanzied
MediaSynthetic fiber
SizeStandard or Customerized
Metal gauzeGalvanzied/aluminum net
Efficiency30-50% (merv 7-merv 9)
ClassG3,G4 or F5


Size and specification:



ModelOutside dimensions(mm)Thickness(mm)Rated air flow(m3/h)

Efficiency
(%)

Material
ZS-CBA-1595x59521/46mm2000-3200

G3
G4

MediaNon-woven fabric
ZS-CBA-2595x29521/46mm1000-1500FrameAluminum alloy / zinc galvanized
ZS-CBA-3595X49521/46mm1500-2500Frame workCommon steel wire/ stainless steel wire
ZS-CBA-4900x49521/46mm3000-5000Wire mesh

Galvanized Steel Wire
mesh/Aluminum alloy


Picture :

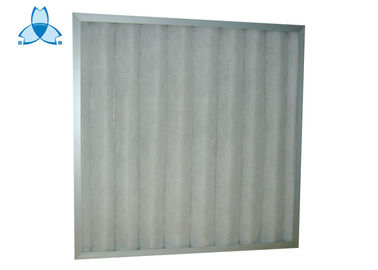

Corrugated - Type Air Filter Pre Filter 595x595x21mm For Central Air Conditioning 0






Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:

Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
