|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Clean Room:||100 Class||Blowing Side:||2- Side Blowing|
|Material:||Power Coated Steel||Suitable:||5-6 Persons|
|Voltage:||380V, 50 Hz, 3PH||Warranty:||One Year|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
L type Corner Air shower with Aluminum Swing doors for 5-6 persons class 1000 clean room in Indonesia
To keep the cleanliness of cleanroom, when people enter from non-cleanroom, there is a passage room which have to prevent the air convection current to avoiding make dirty the clean room, it calls air shower.
There are two doors which are in interlock state, one door is open, other is closed, they cannot be open at the same time.
When people go into air shower, the blower fan is working, air go throught primary filter, then be absorbed blower fan, then air go through HEPA filters, clean air will be go out from nozzles at high speed wind >20m/s, it can remove the dust particles from people's clothes, hair and shoe.
people enter clean room only after pass air shower.
1. Air shower room is a dust removal and purification equipment necessary for personnel to enter the clean room dust-free workshop lock. It has strong versatility and can be used with all clean rooms and clean rooms.
2. When the staff enters the workshop, the clean air filtered by the high-efficiency filter must be sprayed from all directions to the person or the cargo by the rotatable nozzle, thereby effectively and quickly removing the adhesion to the clothes and the goods. Dust, hair and other debris on the surface, it can reduce the pollution caused by people entering and leaving the clean room.
|Product||L Type Corner Air Shower|
|Material:||T=1.2 mm powder coated steel for main body and base|
W=800mm aluminum single-leaf sliding door for entrance door and exit door
|Door closer||2 SETs|
|Electric lock||2 SETs|
|Indicator lights||Green and red|
|Blower fan||6sets,capacity: 1600CMH/set|
|99.99% HEPA filter||610*610*69mm 6 pcs|
|Pre filter||1 pcs|
|Bloweing type||two -side blowing, wind speed: >22-25m/s|
|Control system||Control by IC control panel|
|Photoelectric snesor||Omron brand 1pcs|
|Philips LED light||3x8W|
Cleanroom air shower is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.
It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.
The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Standar size and specificaton:
|Model||Air shower||Cargo Air shower|
|AS-1200D-1||AS-1400D-1||AS-1400D-1.5||AS-1400D-2||CAS-1700T-2 (2 Modules)||CAS-1700T-4 (4 Modules)|
|Ex size WxDxH (MM)||1200x1000x 2050||1400x1000x 2050||1400x1500x 2050||1400x2000x 2050||1800x2000x2050||1800x4000x 2050|
|In size WxDxH (MM)||800x900x 1920||800x900x 1920||800x1400x 1920||800x1900x 1920||1200x1900x 1920||1200x3900x 1920|
|Doors||Swing door/sliding door/shutter door Door frame: SS/ALU|
|Nozzles||12(two side)||12(two sides)||18(two sides)||24(two sides)||32(3- side)||64(3- side)|
|Fan||#4250x1 set||#4195 x 2 sets||#4195x2sets||#4250x2sets||#4195x4sets||#4195x8sets|
|HEPA filter||610x610x69 1pcs||610x610x69 2pcs||610x610x69 2pcs||915x610x69 2 pcs||610x610x69 4pcs||610x610x69 8pcs|
|Nozzle||ф 25 or 32mm|
|Control system||IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.|
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.

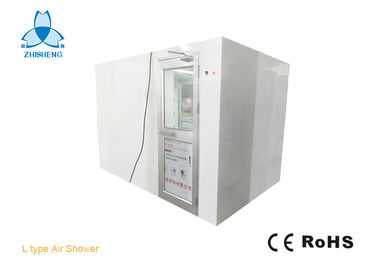

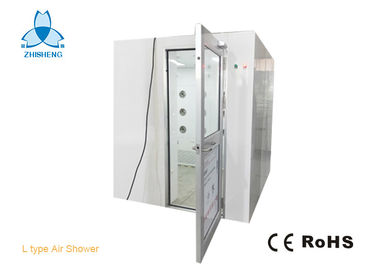

Air Shower's Photos:

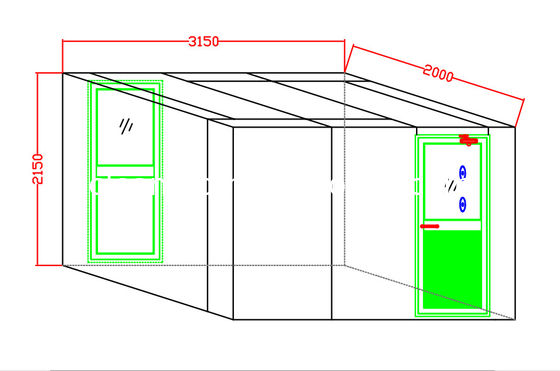

Air Shower's drawing:
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
