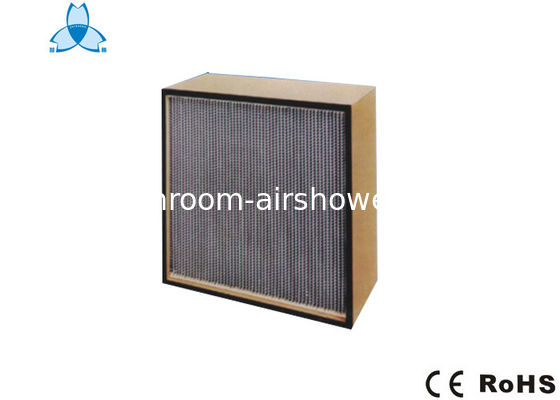

Wooden Fram Hepa Air Filter For Air Conditioning

Wooden Fram Hepa Air Filter For Air Conditioning

    • Wooden Fram Hepa Air Filter For Air Conditioning
  • Wooden Fram Hepa Air Filter For Air Conditioning

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001, Rohs
    Model Number: ZS-YGX-6101

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 500 pieces per month
    Contact Now
    Detailed Product Description
    Construction: Box Filter Medium Material: Fiberglass
    Dimension(L*W*H: Request Weight: Customers ' Requirement
    Application: Air Conditioning System After-sales Service Provided: Overseas Service Center Available
    High Light:

    air purifier filters


    custom air filters


    Wooden Fram Aluminum Foil Hepa Air Filter For Air Conditioning




    High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.




    HEPA filter with clapboard is used for air purification under the environment of normal temperature, normal air pressure and normal humidity. It can be mounted as a middle filter for air clean-up system and also can be mounted as a terminal filtering device for clean room of 100,000 grade or has less demand on its cleanliness.


    Material and operating conditions:


    External frame aluminum / GI/ wooden
    Sealant polyurethane rubber
    Separator paper or aluminum foil
    Filter media fiberglass, HV fiberglass or PP
    Maximum operating temperature 80°C
    Maximum operating humidity 80%
    HEPA filter Efficiency 95-99.995%





    1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

    2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

    3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

    4: The sealant around the media so that the air filter without any air leaking,

    the frame can be wooden, aluminum,galvanized or stainless steel.

    5: Laser to scan the each air filter one by one,

    6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

    95%-99.99995%@0.3um (EN1822).

    7: Each air filter with test report accompany


    Size and Specification:


    Model Outside dimensions
    Rated air flow(m/h) Initial resistance (Pa) Efficiency
    ZS-YGX-484 484x484x220 1000 ≤120(PP)
    ≤120(HV (fiberglass)
    ZS-YGX-295 295x595x292 1600
    ZS-YGX-595 595x595x292 3200
    ZS-YGX-6101 610x610x150 1000
    ZS-YGX-6102 610x610x292 3400
    ZS-YGX-305 305x610x292 1700
    ZS-YGX-630 630x630x220 1500
    ZS-YGX-1220 1220x610x150 2000


    Pictures of HEPA filter



    Wooden Fram Hepa Air Filter For Air Conditioning 0





    Payment Term:


    30% prepayment by T/T at order, the balance of payment before shipment.


    Delivery time:


    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.


    After sales service:


    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We care of your complain within 48hours.
