Home ProductsV Bank Filter

High Efficiency V Type Hepa Air Filter Dust 0.1um Porosity For Hepa Systems

High Efficiency V Type Hepa Air Filter Dust 0.1um Porosity For Hepa Systems

    • High Efficiency V  Type Hepa Air Filter Dust 0.1um Porosity For Hepa Systems
  • High Efficiency V  Type Hepa Air Filter Dust 0.1um Porosity For Hepa Systems

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001, Rohs
    Model Number: ZSZV-3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 500 pieces per month
    Contact Now
    Detailed Product Description
    Efficiency: 45-99% Separator: NON
    Size: 592x490x292 Frame Material: ABS Plastic
    Initial Resistance (Pa): ≤220 Porosity: 0.1um
    High Light:

    V Bank Air Filters

    ,

    Compact Air Filter



    Sub - high - efficiency V Type Hepa Air Filter For Industry



    Description:



    High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.



    Applications:



    HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.



    Material and operating conditions:



    External frame Aluminum Alloy/GI/Stainless steel
    Sealant Polyurethane
    Separator Clapboard or aluminum foil
    Filter media Fiberglass /HV fiberglass / PP
    Maximum operating temperature 80°C
    Maximum operating humidity 100%
    HEPA filter Efficiency ≥99.99%





    Features:



    1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

    2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

    3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

    4: The sealant around the media so that the air filter without any air leaking,

    the frame can be wooden, aluminum,galvanized or stainless steel.

    5: Laser to scan the each air filter one by one,

    6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

    95%-99.99995%@0.3um (EN1822).

    7: Each air filter with test report accompany



    Size and Specification:



    Model Dimensions(mm)
    WxHxD
    Rated air
    flow (m³/h)
    Initial
    resistance
    (Pa)
    Efficiency
    (EN1822)
    Frame Media
    ZSZV-3300 592x592x292 3300 ≤120
    (Media: PP))
    ≤220
    (Media:fiber
    glass)
    F7-H13 Plastic/
    galvanized
    sheet
    PP or
    Fiberglass
    ZSZV-1600 592x292x292 1600
    ZSZV-3000 592x490x292 3000
    ZSZV-1600-2 592x287x292 1600
    ZSZV-800 287x287x292 800
    ZSGV-3600 610x610x292 3600
    ZSGV-1800 610x305x292 1800

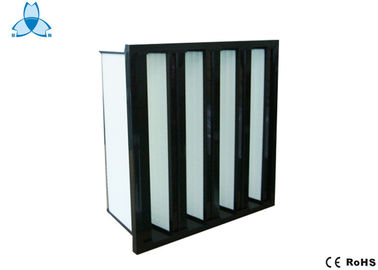

    Pictures of HEPA filter



    High Efficiency V  Type Hepa Air Filter Dust 0.1um Porosity For Hepa Systems 0





    Payment Term:



    30% prepayment by T/T at order, the balance of payment before shipment.



    Delivery time:



    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We care of your complain within 48hours.
