Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class

Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class

    • Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class
    • Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class
    • Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class
  • Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001, Rohs
    Model Number: ZS-GB595-H13

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Packaging Details: Carton and Pallet
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 500 pieces per month
    Detailed Product Description
    Frame: Galvanized Separator: Aluminum
    Size: 24x24x12 Inch Type: Box Type
    Application: Gas Turbine Class: H13



    Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator, 99.99% at 0.3um



    Description:



    High capacity absolute filters are manufactured from the highest quality components, under demanding quality control conditions, and are certified to ensure performance in the most critical of applications.



    The efficiency from 99.97% to 99.999% on 0.3 micron particles.

    HEPA level air filtration in applications wherein ultra-clean air, increased airflow capacity and energy-savings are critical.



    High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.



    Features:



    Galvanized steel frame to create a durable, dimensionally stable corrosion-resistant enclosure.



    X-body frame that is assembled without the use of penetrating fasteners to ensure leak-free performance



    Throughout the life of the filter.



    Safe-edge tapered corrugated aluminum separators to ensure uniform airflow throughout the media pack and maintain pack stability.



    The edges of the separators are the hemmed for added strength and to protect the media from damage during manufacture, shipping  and installation.



    Micro glass fiber media to provide efficiency to specifited performance values. The media is highly resistant to moistur in high humidity environments.





    Applications:



    HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.



    Material and operating conditions:



    External frame GaIvanized steel
    Sealant Polyurethane
    Separator Aluminum foil
    Filter media HV fiberglass
    Maximum operating temperature 80°C
    Maximum operating humidity 100%
    HEPA filter Efficiency ≥99.99%





    Features:



    1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.



    2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats



    3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.



    4: The sealant around the media so that the air filter without any air leaking,

    the frame can be wooden, aluminum,galvanized or stainless steel.



    5: Laser to scan the each air filter one by one,



    6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

    95%-99.99995%@0.3um (EN1822).



    7: Each air filter with test report accompany



    Size and Specification:

    Model  Dimensions(mm) Rated air flow (m3/h)  Initial resistance (Pa) Efficiency (MPPS) Class (EN1822)
    ZS-GB320 320x320x220 400 ≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP) 95% -99.995% F9-H14
    ZS-GB350 350x350x220 500
    ZS-GB484 484x484x220 1000
    ZS-GB630 630x630x220 1500
    ZS-GB610 610x610x150 1000
    ZS-GB915 915x610x150 1500
    ZS-GB1220 1220x610x150 2000
    ZS-GB295 295x595x292 1400
    ZS-GB595 595x595x292 2800
    ZS-GB305 305x610x292 1500
    ZS-GB610-2 610x610x292 3000

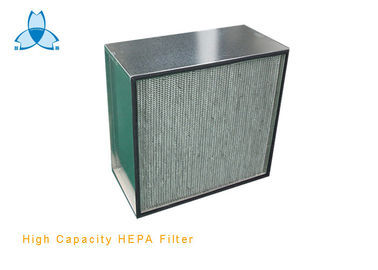

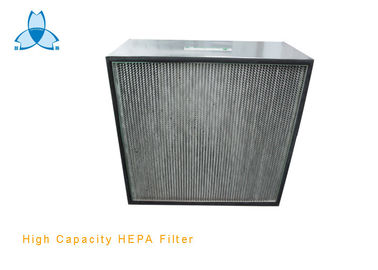

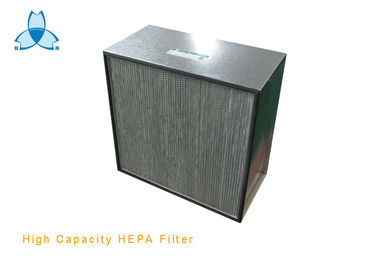

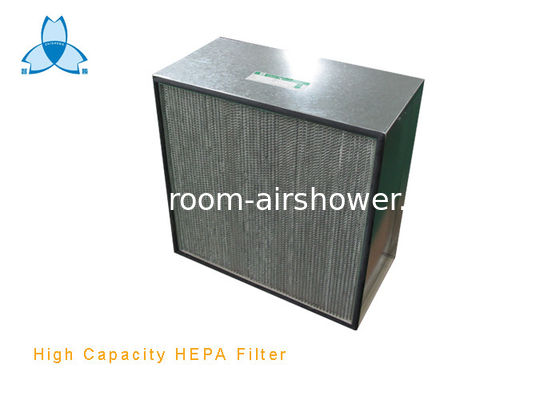

    Pictures of HEPA filter



    Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 ClassGalvanized Frame High Capacity HEPA Air Filter With Aluminum Separator H13 Class



    Payment Term:



    40% prepayment by T/T at order, the balance of payment before shipment.



    Packing:



    Carton and Plywood Case



    Delivery time:



    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We care of your complain within 48hours.
