| MOQ: | 100 pieces |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Supply Capacity: | 1000 pieces |
g3 / g4 Washable Aluminum Frame Primary Filter For Air Handing Unit
Primary efficiency air filters are used non-woven fabric or cotton as filter material, The outer frame is aluminum alloy or galvanized sheet
It is widely used on central air conditioning, generally filtering dust particles with diameter more than 5um.
Feature:
1) High dust-contain capacity
2) Large filtering area
3) Cheap price
4) conenvient to replace media material
Specification:
| Product Details | Type | Panel filter, Pleated filter | |
| Feature | Large dust capacity,low drop | ||
| Frame | Cardboard/aluiminum/galvanzied | ||
| Media | Synthetic fiber | ||
| Size | Standard or Customerized | ||
| Metal gauze | Galvanzied/aluminum net | ||
| Efficiency | 30-50% (merv 7-merv 9) | ||
| Class | G3,G4 or F5 | ||
Size and specification:
| Model | Outside dimensions(mm) | Thickness(mm) | Rated air flow(m3/h) |
Efficiency |
Material | |
| ZS-CP-1 | 595x595 | 21/46 | 2000-3200 |
G3 |
Media | Non-woven fabric |
| ZS-CP-2 | 595x295 | 21/46 | 1000-1500 | Frame | Aluminum alloy / zinc galvanized | |
| ZS-CP-3 | 595X495 | 21/46 | 1500-2500 | Frame work | Common steel wire/ stainless steel wire | |
| ZS-CP-4 | 900x495 | 21/46 | 3000-5000 | metal mesh |
Zinc Galvanized Steel /Aluminum alloy |
|

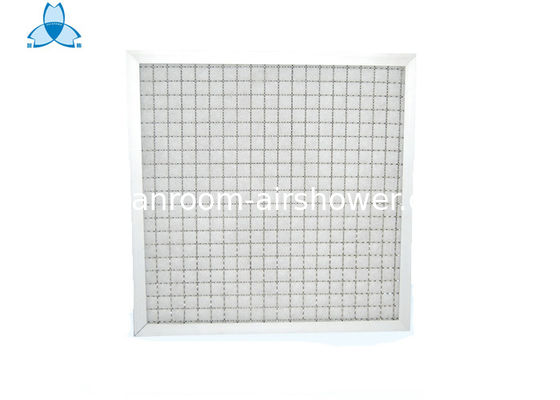

Picture :
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
|
|
