Product Details:
|
| Condition: | New | Tool: | Brush |
|---|---|---|---|
| Use: | Cleaning Shoes And Boot | Cleaning Process: | Cold Water Cleaning |
| Cleaning Type: | Immersion / Soak | Industry Used: | Pharmaceutical Cleaning |
| Power(W): | 460W | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Voltage: | AC220V/50HZ/1PH Or AC110V/60HZ/1PH | Warranty: | 1 Year |
| High Light: | Shoe Cleaning machine,Shoe Cleaner Machine,Food Factory Stainless Steel Boot Washer |
||

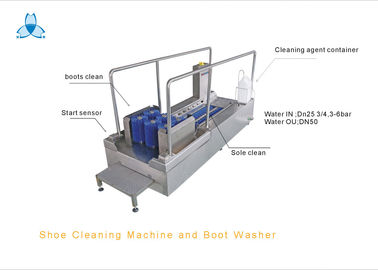

Stainless Steel Boot Washer and Shoe Cleaning machine For Exit Unit from Food Factory
Specification:
Boot Washer and Shoe Cleaning Machine is used for exit unit from factory workshop to clean the boot.
This station is mainly suitable for food, electronic, pharmacy, chemical manufacturing company,
The products is made of material of SUS304 which is comply with the standard of food industry. We adopt
the One-stop total solution to clean and disinfect on the product. The design of through start upon sensor
induction avoid cross contamination due to touch free operation. The machine can add a tripod
turnstile, the user are coerced into cleaning and disinfecting hand before entrance,one-stop solution to
clean and disinfect hand and sole.
Function & features:
Cleaning function: Clean Boot and Shoe automatically when people work on the the brush.
Optional:
Tripod turnstile which is for the user are coerced into cleaning and disinfecting hand before entrance
Working principle:
Motor drive the 2 brushes on the clean stage to clean shoe boot
User stand on the clean stage, the brushes rotate to clean the shoe soles.
Start upon sensor induction, stop upon time out
Installation:
Need a flat and smooth floor indoor, to put the machine.
Need water supply and drainage pipe or hose to connect.
Need power supply 220VAC.
Technical parameter:
| Specification | Parameter |
| Model | ZS-8300 |
| Manufacturer | China |
| Electric Control | Integrate Omrom/ Weidmuller /Chint |
| Cleaning mdeol/water temperature | Circulate/cleaning with water /10-40℃ |
| Function | Clean shoe and Boot |
| Brush height | Nylon 300mm length |
| Disinfectant container(L) | 5 L |
| Inlet part/pressure | Solenoid valve/3-6bar |
| Inlet connector | DN25 or 3/4" female threaded |
| Water level controller | Floating ball valve DC24V |
| Drain type | Floor drain |
| Drainage connection | DN25 |
| Start type | Start upon sensor induction, stop upon time out(30-60s) |
| Voltage | AC220 50Hz |
| Motor Power(W) | 460W |
| Rated Power(W) | 460W |
| Soap liquid dispenser | None |
| Washing faucet | None |
| Disinfector | inductive spray disinfector |
| Tripod turnstile | None |
| Main material | SUS304 |
| Size L*W*H(mm) | 3000*960*1200 |
| Material | All SS304 |
| Package | Plywood case |
