MOQ: | 1 set |
Standard Packaging: | plywood case |
Delivery Period: | about 15 days upon receipt of deposit |
Payment Method: | T/T, Western Union |
Supply Capacity: | 200 Set/Sets per Month |

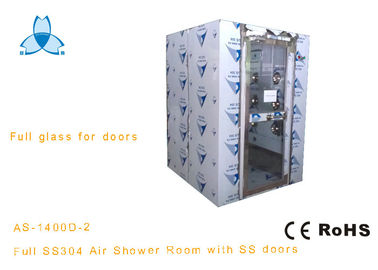

Automatic blowing Full Glass Doors SS304 Stainless Steel Air Shower for 3-4persons
Full Glass Doors SS304 Clean Room Air Shower Room For Three People For Baking
Doors: Stainless steel 304 frame with Full temper glass
Stainless steel air shower is clean room and assembly type clean small room equipment.
For blowing into the purification plant personnel and carry dust attached to the surface of the article,
but also play the role of air shower airlock to prevent unpurified air into the clean areas.
It is making personal purification and effective devices to prevent outdoor air pollution clean area.
Features:
Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help solve decontamination problems
Modular design lets you order a system to suit your cleanroom
HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles
Solid-state microprocessor panel provides programmable control over access door operation.
Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed
Energy-efficient LED lighting mounted on the ceiling
Available in white powder-coated or stainless steel to meet various cleanroom requirements
Variety of sizes and door configurations
Economical to operate and easy to maintain
An ionizing bar is available as an optional accessory
Applications:
Food factory, Semiconductor Factory, Microelectronics Factory, Biological Pharmaceutical Factory, etc.
Features:
Product type | Full Glass Doors SS304 Clean Room Air Shower Room For Three People For Baking |
Material for casing | T=1.2 Stainless steel 304 for Outside and inside casing and base |
Material for doors | Stainless steel 304 with ful temper glass |
Nozzles | Stainles steel |
Door leaf | Single leaf |
Door type | Manual swing door |
Blowing way | Two-side blowing, |
Control system | English IC intelligent control panel with human voice |
Locks | Electric mortise lock |
HEPA filter efficinecy: | H13 |
Pre filter | G3 |
Light | Philips brand |
Photoelectric sensor | OMRON brand |
Shower time | 0-99s adustable |
Spurt wind speed | 22-25m/s above |
Power supply | AC220V/50HZ/1PH |
Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Standar size and specificaton:
Product | Full Glass Doors SS304 Clean Room Air Shower Room For Three People For Baking |
Model | ASS-1400D-2 |
External dimensions (mm) | W1400*D2000*H2050MM |
Internal dimensions WxHxD(mm) | W800*D1900*H1960MM |
Doors | 2 sets of SS single-leaf swing door |
Door closer | 2 sets (Outside) |
Lock | 2sets of electric locks interlocked |
Suitable person | Three person |
Nozzles | 12+12=24 PCS(2-side blowing ) |
Blower fan | 2 sets |
Blow power(W) | 2000W |
Weight(kg) |
Appro.380 |
HEPA filter size | 915x610x90mm |
HEPA filter qty | 2 PCS |
HEPA filter efficiency | H13 |
Photolectric sensor | ORMON 1 PCS |
Fluorescent Lamp | Philips 2x 20W |
Nozzle diameter | 32mm |
Air shower time | 0-99 s Adjustable |
Spurt wind speed | 22-25m/s |
Power Supply | AC380V/50Hz/3Ph |
Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Air Shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
