|Wind Speed:||25-27m/s||Class:||100 Class|
Air Jet Shower,
class 100 clean room,
L Type Clean Room Air Shower

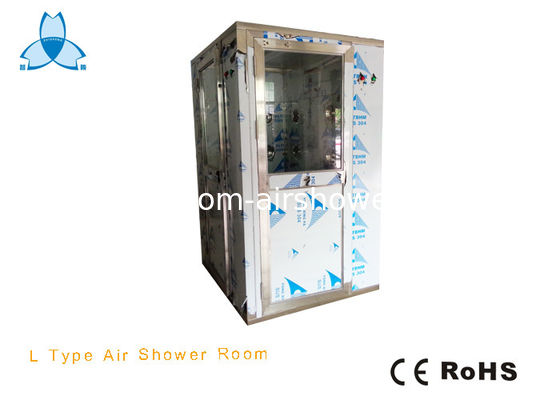

Full Stainless steel 304 L Type Clean Room Air Shower for food factory for high standard clean room

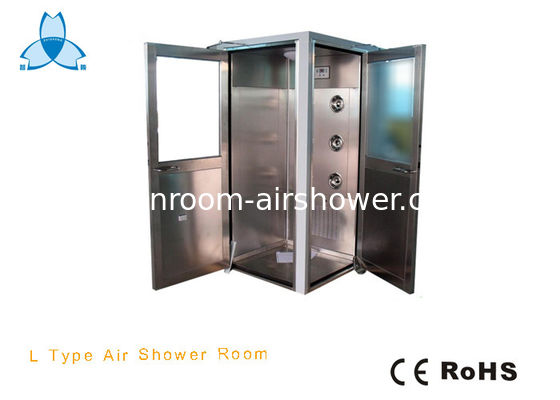

Stainless steel 304 L Type Clean Room Air Shower for corner installation, with single-leaf stainless steel 304swing door
L Type New Corner Abnormity Clean Room Air Shower With IC Intelligent Control Panel
Door Width: L Type 800mm Single Leaf Swing Doors
Type: Big Top and BigBase
Stainless steel air shower for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms.
Personnel dust decontamination & clothes cleaning air shower room is an individual cabinet with high pressure of air to clean up dust and decontaminate clothes of personnel.
It's a quick and effective way without exposing the personnel, or the work environment to elevated dust levels.
Once clothes become contaminated, they are a constant source of respirable dust until cleaned.
Wearing or taking these dusty clothes home to be cleaned also exposes the person washing these clothes to unsafe levels of respirable dust.
Personnel, without removing the clothing, can step into the specially designed air shower room and within several seconds have almost all visible traces of dust removed from his/her clothing.
This eliminates their exposure to this dust hazard.
After personnel complete the cleaning cycle, then they exit into a non-contaminated area without recontaminating themselves or the clean area.
Its used for the personnel or matters to shower before entering the clean area.
After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
|Product type||L Type New Corner Abnormity Clean Room Air Shower With IC Intelligent Control Panel|
|Material for casing||T=1.2MM Full SS304 for External and internal cabinet|
|Material for doors||Stainless steel 304|
|Door leaf||Single leaf|
|Door type||Manual swing door|
|Blowing way||Two-side blowing|
|Control system||English intelligent control panel with human voice|
|Locks||Electric mortise lock|
|HEPA filter efficinecy:||99.99%|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||25-27m/s above|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
size and specificaton:
|Product||L Type New Corner Abnormity Clean Room Air Shower With IC Intelligent Control Panel|
|External dimensions (mm)||W1400*D1200*H2100|
|Internal dimensions WxHxD(mm)||W800*D1100*H2000|
|Doors||2 sets of SS single-leaf swing door|
|Door closer||2 sets (Outside)|
|Lock||2sets of electric magnetic locks interlocked|
|Suitable person||1 person|
|Blower fan||2 sets|
|HEPA filter size||610x610x69mm|
|HEPA filter qty||2 PCS|
|HEPA filter efficiency||99.99% at 0.3um|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 1x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||25-27m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor
Air shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
