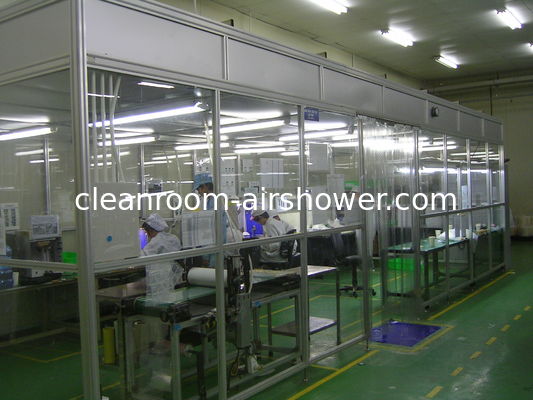

Hand Wall Clean Room Clean Booth

Hand Wall Clean Room Clean Booth
Hand Wall Clean Room Clean Booth Hand Wall Clean Room Clean Booth

Large Image :  Hand Wall Clean Room Clean Booth

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO 9001/CE/ROHS
Model Number: ZS-CBD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood case
Delivery Time: 15-20 days
Payment Terms: Western Union, T/T
Supply Ability: 100 sets per Month

Hand Wall Clean Room Clean Booth

Features: Top Laminar Flow Frame: Aluminum
Main Body: Anti-static PC Sheet Class: ISO 5
High Light:

clean room accessories


clean room supplies


Hand Wall Clean Room Clean Booth

Hand Wall Clean Room Clean Booth

Aluminum Positive Pressure Soft Wall Clean Room Vertical Laminar Flow Booth

Clean booth


Though clear division is not available, "Clean room" term is used in case of building or room. A space enclosed by PVC curtain or resin panel is considered as "Clean booth" in case of willingness to increase the cleanliness factor in a clean room or air-conditioned room. Size is 1.5m to 5m and clean air is introduced in the booth with a provision of FFU (Fan Filter Unit) in the ceiling.

Have become popular in recent years, not on the basis of its size, but considering it as a simple, cheap, movable structure with cleanliness factor and not violating the construction code or Fire services act.

Frame: Aluminum


Main Body: Anti-static Acrylic sheet


Class: ISO 5


Top Laminar flow




Clean booth is for the pharmaceutical, microbiological research and scientific experiments, which require partial purification equipment.




Frame of clean booth: Aluminum alloy or stainless steel

Body of clean booth: PVC anti-static curtains / Plexiglass / Acrylic sheet

Shell of FFU material: Cold rolled steel with powder coated, Aluminum coated zinc platet,or stainless steel 201/304



With regards to the construction code or fire services act, there is a possibility of conflict with the standards of local authority or company of client. Also, the size that can be erected over a desk is termed as "Simple clean bench"


Following considerations are necessary in case of selection of Clean booth.

1. Calculation of cleanliness factor for inside of booth
2. Selection of wall material
3. Selection of ventilation system
4. Selection of air-conditioning within the booth


1. Calculation of cleanliness factor for inside of booth


Generally, it is determined on the basis of clean room regulations. The parameters considered are rate of circulation, filter type, flow system and ventilation system.


Reference table for rate of circulation

Class of clean room General numerical value USA209E Standards Average air current speed
Class 100,000 20-30 rotations/h 20 0.005-0.041m/s
Class 10,000 30~70 rotations /h 70 0.051-0.76m/s
Class 1,000 100-200 rotations/h 150 0.127-0.202m/s
Class 100 200-600 rotations/h 250-400 0.203-0.408m/s


Rate of circulation per hour (rotations /h) =Average air current speed (m/sec) x discharge area (m2) x 3600sec ÷room capacity (volume) (m3)


Item Medium or high performance filter HEPA filter ULPA filter
Filtering capacity Class 10-100000 Class 100-10000 Class 10
Examples Normal office After IC process PRE IC process
Performance High trapping capacity as compares to coarse particle filter Possessing a trapping of capacity up to 99.97% for 0.3um size particles Prossessing a trapping of capacity up to 99.999% for 0.1um size particles



The air flow capacity and units of FFU to be installed are selected on the basis of the volume of clean booth and the desired class.

Required air flow (m3/min) =targeted room capacity (m3) ×rate of circulation (rotations /h) ÷60

The FFU air flow for a clean booth with width 3m, length 2m, height 2m and desired class of 10000 is (3×2×2) ×75÷60=15(m3/min)

*Single unit of PAU - A17FFU of our company is compatible.


2. Selection of wall material

Selection should be made on the basis of requirements related to ambient and internal space environment.




1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place

that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the


clean air enter into the work zone vertically to insure the purification requirement


2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s


3). the dimension of the clean booth ,customizes design is available


4).it can be used by single and also can be connected to clean area in strip


5). purification rank : 100 class,1000 class or 10000class


Type of Clean Booth



Hand Wall Clean Room Clean Booth 0

Optional Accessory:


Air Shower


Pass box


Air conditioner


Pressure gauge


Specification for FFU


Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for Casing(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold rolled steel with powder coated, Aluminum coated zinc plate,or stainless steel 201/304
Rated Air flow(m3/h) 1000 1500 1800 2000
Air velocity 0.35/0.48/0.6 m/s
ESP 80-120pa
Hepa fiter Size (mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13
Pressure Drop ≤220pa
Fan (motor) Voltage AC 220-240V/50Hz
Current 0.76A
Power 80-120W
Noise(dB) 48 50 52 53
Weigth(KG) 22 24 28 32
