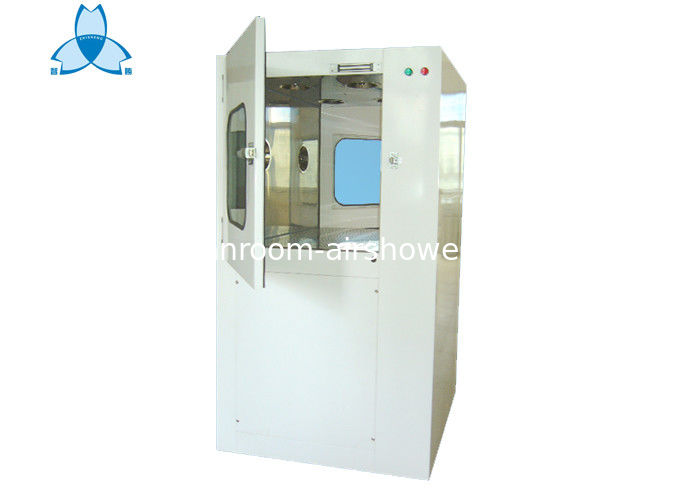

Medical Air Shower Pass Box With Electric Interlock

Medical Air Shower Pass Box With Electric Interlock

Medical Air Shower Pass Box With Electric Interlock

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO9001
Model Number: ZS-FLP-1300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 200sets per month
Contact Now
Detailed Product Description
Material: Cold Rolled Steel Lock Type: Electric Interlock
Size: 820*560*1300mm Color: White
Filter: HEPA Filter Cleanliness: 100 Class@ 0.5um



Medical Air Shower Pass Box With Air Shower , Electric Interlock



Static Type



The clean room static pass box adopts SUS304 stainless steel as the material for interior, and cold rolled steel or SUS304 for exterior product body and the two doors. The thickness of the stainless steel is 1.0mm. Meanwhile, the product is equipped with the Taihu ultraviolet lamp with the power of 10W and the wavelength of 254nm. It can get the ideal sterilization effect. In addition, the embedded type installation of ultraviolet lamp can reduce the contact possibility of delivered articles and ultraviolet lamp tube to ensure safe use.



Application



It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.

The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.



Standar size:



Model ZS-CC1 ZS-CC2 ZS-CC3
External dimensions (W x D x H) 685x460x590 785x660x690 985x660x890
Size for working area ((W x D x H) 500x400x500 600x600x600 800x800x600
Material Cold rollled steel with powder coated or stainless steel
Lock type Mechanical interlock or Electric interlock
Windows Clear Acrylic sheet



Product Pass box with air shower
Model ZS-FLP-1300 ZS-FLP-1400 ZS-FLP-1750
External dimensions (W x D x H) 820x560x1300 920x660x1400 920x660x1750
Size for working area ((W x D x H) 500x500x600 600x600x600 600x600x600
Material Cold rollled steel with powder coated
Lock type Electric interlock
Windows Clear Acrylic sheet



we can offer special size and requirement as per our clients.

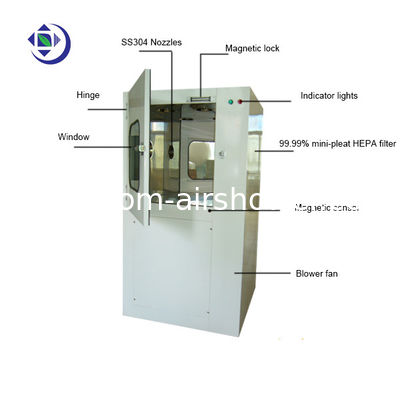

Drawing:



Medical Air Shower Pass Box With Electric Interlock



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.
