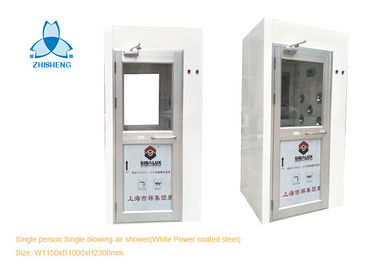

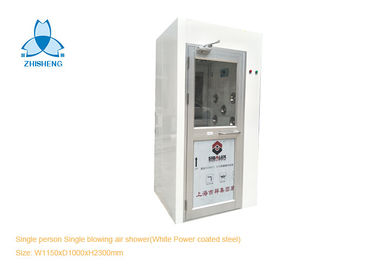

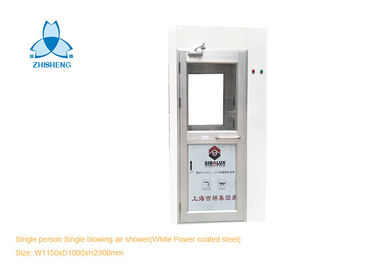

Single Blowing Personal Cleanroom Air Shower For One Person White Powder Coated Steel

Single Blowing Personal Air Shower For One person for clean room,white powder coated steel, small air shower

Air shower.pdf

Clean room Air showers are a necessary clean equipment in maintaining the cleanliness of clean room and non-clean room environments. High speed air velocity from jet nozzles, air showers remove the dust particles of contamination from people and goods before they enter a clean room, reducing or eliminating the dust into clean room, to make sure the high cleanliness, there the product workshop make high quality product.

Besides, air showers reduce the time of clean room maintenance, because less dust bring into clean room ,the lifetime of clean room’s HEPA filters will last longer, and overall energy costs will be reduced.


We can provide standard air shower and we can also provide the customized air shower, if you need customized air shower, please tell us your size and specification, or drawing, or please tell us your requirements, we can design it to you.

How Does Clean Room Air Shower Work?

Install air shower on the position where is required, it must be on the flatly floor, and plug in the power, the indicator red light will be lighting. Below steps please check:

1. People open the entrance door, enter air shower and close the door, two doors will be interlocked, the human voice prompt will be working , then photo-electric sensor will be reacted by people walk in.

• The blower fan is working, and airflow will purified from HEPA filter, then pressed from diameter 32mm of nozzles, with high speed air velocity up to 22m/s to remove the dust from people. The shower time will count down when it is blowing.
• After blowing, you can open the exit door, and go into clean room, then exit door will be closed automatically by door closer.

• Exit door will be closed. The progress will be reset in original state.

For clean room, there is a passage for worker to exit clean room, so people don’t need to exit clean room via air shower.

However, some clean room, to save the cost, the people have to exit clean room via air shower, if this, people need to open exit door and enter air shower, but no blowing in air shower, then go out.

How to Choose the Air Shower ?

When you select a clean room air shower for your requirement, you need consider many factors.

1. The air shower should be modular, therefore is is easy for dissembled, packed, shipped and assembled.

• The material for air shower’s cabinet, powder coated steel or stainless steel.

If require high quality, it need to choose stainless steel, like food factory.

• Doors type: Swing door, auto sliding door, or high speed shutter door, for personal air shower, usually customer choose swing door, for small cargo air shower, people would like automatic sliding doors, for large cargo air shower, like width >2000mm, and high >2000mm, it is better to choose high speed shutter doors.

Door materials: Stainless steel swing door or aluminum swing doors are both for powder coated steel air shower, stainless steel swing doors is for stainless steel swing door.

• Blower fan should be high airflow, so high air velocity will be from nozzles, then ensure remove dust effectively

• Recirculating filtration system: G3 primary filter and H13 HEPA filter

• Numbers of nozzles, usually, 6 nozzles for Depth 1000mm each side, however, if high requirement, you can choose 6 nozzles, even, you can add the nozzle on the top.

Specification:

External dimension :W1150xD1000xH2300mm

Internal dimension : W800xD900xH2000mm

Material: T=1.2mm cold rolled steel with powder coated for main body, Stainless steel for base

Door: Aluminum single-leaf swing door for entrance door and exit door, Electric lock 2set, Door closer 2et

Blower Fan: 1sets (Voltage:380V/50HZ/3PH), airflow capacity: 1400CMH.

99.99% HEPA filter size: 610x610x69mm 1pcs

Primary filter: G3 1pcs, Fluorescent LED light: 1pcsx18W

Nozzles: stainless steel 8pcs ( single-side blowing)

Air velocity: >24m/s

Operation Control: English LCD control panel human voice, automatic blowing by OMRON photo-electronic sensor.

Features:

Provide high-speed high-clean air, blowing the surface attached to the dust and bacteria, the clean room from pollution.

1. Personal air shower which is controlled by photoelectric sensor and IC control panel with voice prompts,auto blowing.

2. Cargo air shower can be blowing automatically when door is closed, without photoelectric sensor.

3.Two-door are electronic interlocked, the implementation of forced blowing shower.

4. Optional automatic sliding door installation,can install static devices.

5. The based is stainless steel, good corrosion resistance, and it can be stead of sole cleaning machine to remove the dust from shoe sole to keep the clean.

Drawing of Personal Air Shower:

Pictures of personal air shower inside:

Details for Air shower:
