|Materail:||SS304||Door Type:||Shutter Door Type|
|Suitable:||Materials Or Goods||Clean Room:||Class 100|
air shower system,
air shower clean room,
Cleanroom Air Shower With Shutter Doors
Large Full Stainless steel 304 Space-saving Large Cleanroom Air Shower With Shutter Doors For Forklifts , Carts
Space-saving, Fast open door, Large Air Shower with Shutter Doors, Suitable for Forklifts, carts, materials, etc
Air shower or cargo air shower is a device installed at an entrance such as a clean room.
When a person or an object enters the clean room filled with clean air from the outside, it is necessary to clean so as not to introduce contaminants such as dust together. For this reason, a small room partitioned by a double door is provided between the inside of the clean room and the outside, and clean air is blown on the object that has entered to remove dust.
An air filter and a blower are installed in the air shower, and clean air with a wind speed of about 20-25 m / s is blown through the air outlet of the wall.
In order to avoid mixing of air inside and outside the clean room, double doors are designed not to open simultaneously by interlock except in emergency.
In addition, when installing as a dust remover of high concentration dust as installing countermeasures for asbestos removal and as dioxin countermeasure, it is a floor suction type, one with strong wind speed as much as possible, compressed air comes out with a compressor (with air gun, with pulse air etc.) It is safe to take measures against exposure by choosing a powerful type of dust removal capability for the entire work clothes.
External Size for cabinet: W2700*D4000*H3200mm
Internal size for cabinet: W2000*D4000*H3000mm
Door type: high speed shutter doors W2000xH3000mm
Control of shutter doors: “Danfoss” PLC
Motor of shutter doors: German brand ” SEW”
Door curtain: PVC
Open and close speed: 0.6-2m/s adjustable
|Product type||Space-saving, Fast open door, Large Air Shower with Shutter Doors, Suitable for Forklifts, carts, materials, etc|
|Material for casing||T=1.2MM Stainless steel 304 for cabinet, put T=1.5mm SS304 for the floor|
|Material for doors||PVC curtain, SS304 frame|
|Nozzles||Stainless steel 36+36+24=96pcs|
|Door type||Fast speed shutter doors|
|Blowing way||3- side blowing|
|Control system||English IC intelligent control panel with English human voice|
|HEPA filter size||1220*610*90mm 6 pcs|
|HEPA filter efficinecy:||99.99% at 0.3um|
|Pre filter||G3 6 pcs|
|Blower fan||2500 CHM, 12set|
|Light||Philips brand 2x3=6pcs|
|Photoelectric sensor||OMRON brand 1 pcs for blowing|
|Shower time||0-99s adustable|
|Spurt wind speed||> 25m/s|
|Power supply||AC 380V/50HZ/3PH|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
Standard size and specification:
|Model||Air shower||Cargo Air shower|
|AS-1200D-1||AS-1400D-1||AS-1400D-1.5||AS-1400D-2||CAS-1700T-2 (2 Modules)|
|External dimensions WxHxD(mm)||1200x1000x 2050||1400x1000x 2050||1400x1500x 2050||1400x2000x 2050||1800x2000x2050|
|In Dimensions WxHxD(mm)||800x900x 1920||800x900x 1920||800x1400x 1920||800x1900x 1920||1200x1900x 1920|
|Material for casing||Cold rolled steel with powder coated , SUS#201 or SUS#304|
|Doors||Swing door /Sliding door/High speed shutter door; Material: stainless steel or aluminum|
|Nozzles||12(two side)||12(two sides)||18(two sides)||24(two sides)||32(three sides)|
|Blower fan||#4250x 1 set||#4195 x 2 sets||#4195x2sets||#4250x2sets||#4195x4sets|
|HEPA filter’s dimensions||
|610x610x69 two piece||610x610x69 two piece||915x610x69 two pieces||
|Air shower time||0~99s Adjustable|
|Spurt wind speed||20~25m/s|
|Filter efficiency||Above 99.99% efficiency on 0.3um particles|
|Control system||IC control panel, electronic interlock and automatic blowing|
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce

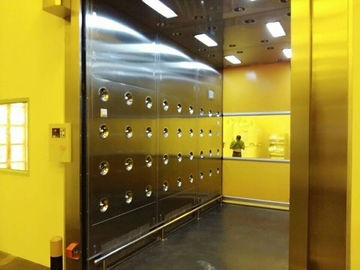

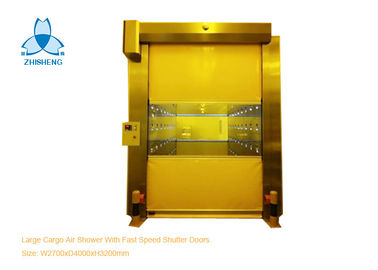

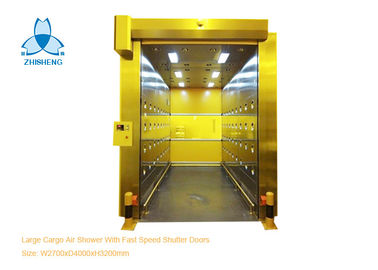

Photoes of Air Shower with Shutter Doors:
Motor and electric circuit of shutter doors:
It is easy for customer to assemble and install it, because we will send the manual and installation drawings to customer.
Besides, our technician can go your side to provide installation guide.
