| Brand Name: | zhisheng |
| Model Number: | ZS-GW-570 |
| MOQ: | 10 sets |
| Delivery Time: | 15-20days |
Metal frame HEPA filter with paper separator, For Clean Room Air Shower, Air Handling unit
with metal frame + inner folding filter paper + separating paper, sealed with special sealant.
Size: W570*H570*D150mm
Frame: galvanized
Media: mirco filberglass
Separator: paper
Seal gasket on the air intake side
Attached pictures of HEPA filter are exported to Georgia in March 2018.
Another frame outside the wooden frame, Aluminum alloy frame, Galvanized plate frame or Stainless steel frame. The most use are more galvanized frames, with the advantages of low cost and good quality. A separator filter has the characteristics of large air volume, high efficiency, low resistance and large dust holding capacity, and the efficiency reaches 99.99%.
Features: low resistance, large dust holding capacity, high efficiency, high temperature resistance
1. using micro glass fiber copied directly.
3. The dividers are usually made of white cardboard or aluminum foil. The outer frame can be made of materials such as aluminum, stainless steel, and wooden frames according to the requirements of the use environment.
Generally applicable to:
1. high-grade purification equipment.
2. the end of the purification system filter components.
Frame: Extruded aluminum/aluminum/wooden/galvanized/stainless steel
Media: fiberglass/HV fiberglass
Sealant: polyurethane
Separator: paper / aluminum foil
Gasket: EVA
Work temperature: ≤80℃
Efficiency: 95% -99.999% (MPPS)
Size and specifications:
| Model | Dimensions(mm) | Rated air flow (m3/h) | Initial resistance (Pa) | Efficiency (MPPS) | Class (EN1822) |
| ZS-GB320 | 320x320x220 | 400 | ≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP) | 95% -99.995% | F9-H14 |
| ZS-GB350 | 350x350x220 | 500 | |||
| ZS-GB484 | 484x484x220 | 1000 | |||
| ZS-GB630 | 630x630x220 | 1500 | |||
| ZS-GB610 | 610x610x150 | 1000 | |||
| ZS-GB915 | 915x610x150 | 1500 | |||
| ZS-GB1220 | 1220x610x150 | 2000 | |||
| ZS-GB295 | 295x595x292 | 1400 | |||
| ZS-GB595 | 595x595x292 | 2800 | |||
| ZS-GB305 | 305x610x292 | 1500 | |||
| ZS-GB610-2 | 610x610x292 | 3000 |

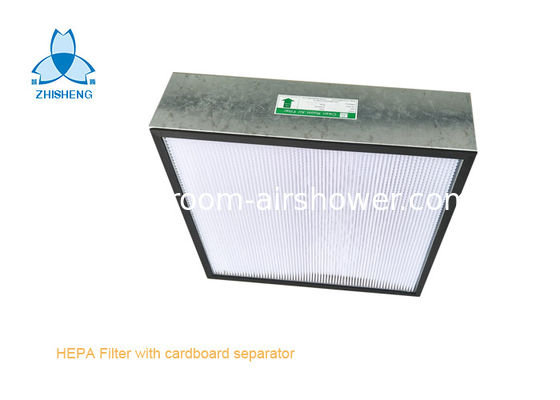

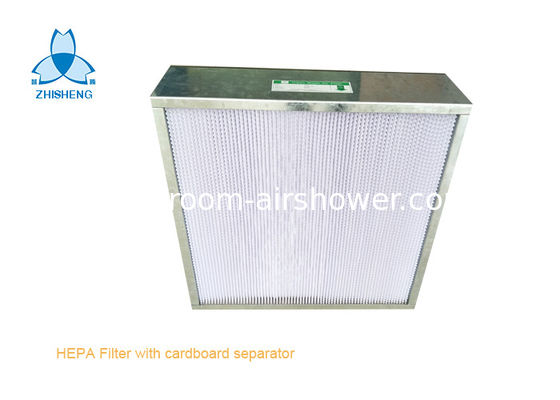

Photoes of HEPA filter
Video
Video
Video
Video
|
|
