MOQ: | 10 sets |
Standard Packaging: | Carton and pallet |
Delivery Period: | 15-20days |
Supply Capacity: | 1000 sets per month |
Deep Pleat HEPA Filter For Hospital, with Galvanized frame, Fiberglass Media, 99.97% Efficiency
HEPA Air Filter For Hospital
Deep Pleat HEPA filters have paper separator HEPA filter, aluminum foil separator HEPA filter, and high temperature resistant aluminum separator HEPA filter.
Applications:Used in various levels of clean room terminal filtration and various local purification equipment, such as the clean room and other ambient air purification.
Features:
Size: W350*H350*D150mm
Frame: galvanized
Media: filberglass
Separator: paper
Seal gasket on the air intake side
Attached pictures of HEPA filter are exported to Georgia in March 2018.
Characteristic
1. High efficiency (mainly capturing particles of 0.5μm or more)
2. Low resistance
3. High dust holding capacity
4. The wind speed uniformity is good
Principle
Interception
The dust particles in the air move with the air flow as inertial motion or random Brownian motion or with some kind of field force. When the particles move into other objects, van der Waals forces exist between the objects (which are molecules and molecules, molecular clusters and The forces between the molecular clusters make the particles stick to the fiber surface. The dust that enters the filter medium has more chance of colliding with the medium and will be stuck when it hits the medium. Smaller dusts collide with each other to form larger particles and settle, and the concentration of dust particles in the air is relatively stable. The fading of the interior and walls is for this reason. It is wrong to treat fiber filters like sieves.
Inertia and diffusion
Particulate dust moves inertially in the air stream. When a disorderly arrangement of fibers is encountered, the air flow changes direction, and the particles deviate from the direction of inertia and hit the fibers and become bound. The larger the particles, the easier it is to impact and the better the effect. Small particles of dust make irregular Brownian movements. The smaller the particles, the more violent the random movement, and the more chance of hitting obstacles, the better the filtering effect. Particles smaller than 0.1 micron in air mainly perform Brownian motion, and the particles are small, and the filtering effect is good. Particles larger than 0.3 μm mainly perform inertial motion, and the larger the particle, the higher the efficiency. Diffusion and inertia are not so obvious that particles are hardest to filter out. When measuring the performance of high-efficiency filters, people often specify the dust efficiency values that are most difficult to measure.
Details:
Frame: Galvanized sheet
Media: fiberglass fiber
Sealant: polyurethane
Separator: paper
Gasket: EVA
Work temperature: ≤80℃
Efficiency: 99.97% at 0.3um (MPPS)
Size and specifications:
Model | Dimensions(mm) | Rated air flow (m3/h) | Initial resistance (Pa) | Efficiency (MPPS) | Class (EN1822) |
ZS-GB320 | 320x320x220 | 400 | ≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP) | 95% -99.995% | F9-H14 |
ZS-GB350 | 350x350x220 | 500 | |||
ZS-GB484 | 484x484x220 | 1000 | |||
ZS-GB630 | 630x630x220 | 1500 | |||
ZS-GB610 | 610x610x150 | 1000 | |||
ZS-GB915 | 915x610x150 | 1500 | |||
ZS-GB1220 | 1220x610x150 | 2000 | |||
ZS-GB295 | 295x595x292 | 1400 | |||
ZS-GB595 | 595x595x292 | 2800 | |||
ZS-GB305 | 305x610x292 | 1500 | |||
ZS-GB610-2 | 610x610x292 | 3000 |

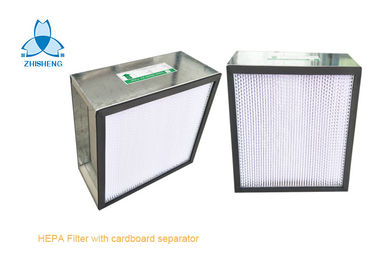

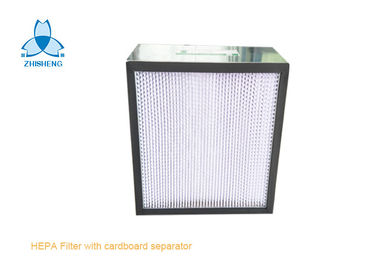

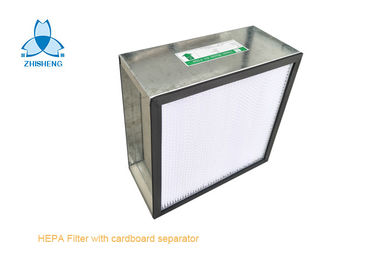

Photoes of Deep Pleat HEPA filter for Hospital
