| Brand Name: | Zhisheng |
| Model Number: | ZS-CP-2 |
| MOQ: | 100 pieces |
| Delivery Time: | about 15 days upon receipt of deposit |

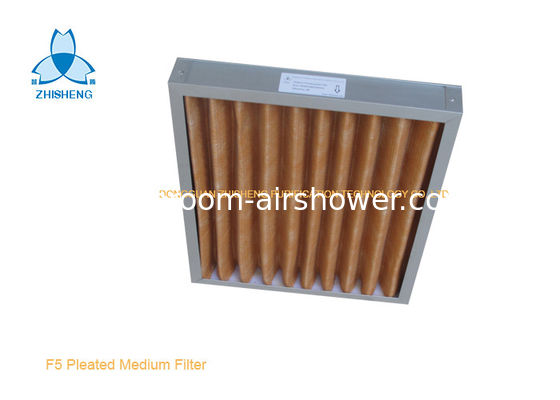

F5 Aluminum Frame Pleated Primary Filter/Coarse Filter For Hospital air conditioning, with pocket filter media
It is composed of extrude aluminum outerframe and synetheic fiber media, with galvanized mesh for protection, removing the 5um particles, usually it is used for air conditiong or HVAC system.
Normally, medium filters are pocket type air filter, this type pleated medium filter is for the not enough space of the air handing unit, it save the space, keep the same efficiency and effective .
Frame: Extruded aluminum
Media: Non-woven fabric
Class: F5
Size: 435*350*50MM
Wire mesh is a surface-type media.
It is made by weaving specific wire in predetermined patterns to form apertures of different shapes and sizes.
Plain square, twilled aquare, plain dutch, and twilled dutch are common weave patterns available.
Muti-layers metal mesh is sintered by two or more layers(2~12layers) of stainless steel wire mesh, which are compressed and sintered together in vacuum.
Its micron rating ranges from 0.5micron to 300micron.
1.Compress resistance
2.Long on-stream life
3.High temperature and corrosion resistance
4.Superior back pulse and backwash capabilities
5.No delamination
Specification:
| Product Details | Type | Panel filter, Pleated filter | |
| Feature | Large dust capacity,low drop | ||
| Frame | aluiminum/galvanzied | ||
| Media | Synthetic fiber | ||
| Size | Standard or Customerized | ||
| Metal gauze | Galvanzied/aluminum net | ||
| Efficiency | 65% | ||
| Class | F5 | ||
Size and specification:
| Model | Outside dimensions(mm) | Thickness(mm) | Rated air flow(m3/h) | Efficiency (%) |
Material | |
| ZS-CBA-1 | 595x595 | 21/46mm | 2000-3200 | G3 G4 |
Media | Non-woven fabric |
| ZS-CBA-2 | 595x295 | 21/46mm | 1000-1500 | Frame | Aluminum alloy / zinc galvanized | |
| ZS-CBA-3 | 595X495 | 21/46mm | 1500-2500 | Frame work | Common steel wire/ stainless steel wire | |
| ZS-CBA-4 | 900x495 | 21/46mm | 3000-5000 | Wire mesh | Galvanized Steel Wire mesh/Aluminum alloy |
|
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
|
|
