|Clean Room:||100 Class||Blowing Side:||2-side Blowing|
air showers for clean rooms,
class 100 clean room,
SS304 L Type Cleanroom Air Shower

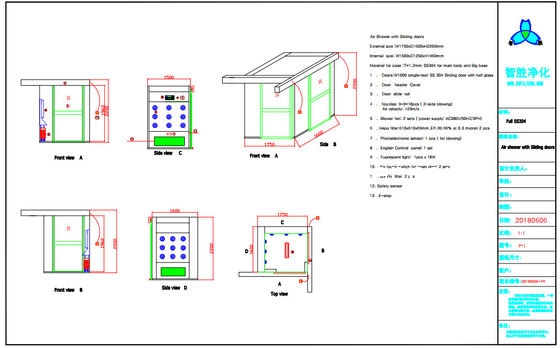

SS304 L Type Air Shower With Auto Sliding Doors For Thailand Princess's Laboratory
Material: T=1.2mm stainless steel plate
Door type: auto single-leaf sliding doors

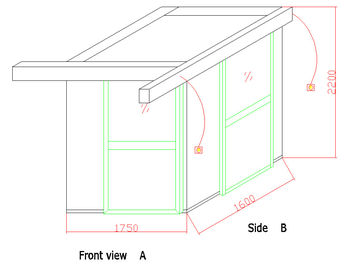

Type: L type, which is suitable for the corner.
Air Shower for Corner installation
|Product||SS304 L Type Air Shower With Auto Sliding Doors For Thailand Princess's Laboratory|
|Material:||T=1.2 mm SS304 for main body and base|
W=1000mm SS304 single-leaf sliding doors,
No touch switch for door opening
|TYLD4240 Fan||2 sets,capacity: 2500CMH/set|
|99.99% HEPA filter||610*610*69mm 2 sets|
|Pre filter||2 pcs|
|Bloweing type||2-side blowing, wind speed: >24m/s|
|Control system||Control by IC control panel|
|Photoelectric snesor||Omron brand 1pcs|
|Philips LED light||1x18W|
Air Shower Cleanroom is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.
It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.
The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
|Product type||SS304 L Type Air Shower With Auto Sliding Doors For Thailand Princess's Laboratory|
|Material for casing||T=1.2mm Stainless steel 304 for mainbody|
|Material for doors||Stainless steel 304|
|Door leaf||Single leaf|
|Door type||Sliding door|
|Blowing way||Top-side blowing and two-side blowing|
|Control system||English intelligent control panel with human voice (If client requrie control by PLC, it is also ok)|
|Locks||Electric mortise lock or Electric magnetic lock|
|HEPA filter efficinecy:||H13 / H14|
|Pre filter||G3 / G4|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||22-25m/s above|
|Power supply||380V/50HZ/3PH or 220V/50HZ/1PH|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Standar size and specificaton:
|Model||Air shower||Cargo Air shower|
|AS-1200D-1||AS-1400D-1||AS-1400D-1.5||AS-1400D-2||CAS-1700T-2 (2 Modules)||CAS-1700T-4 (4 Modules)|
|Ex size WxDxH (MM)||1200x1000x 2050||1400x1000x 2050||1400x1500x 2050||1400x2000x 2050||1800x2000x2050||1800x4000x 2050|
|In size WxDxH (MM)||800x900x 1920||800x900x 1920||800x1400x 1920||800x1900x 1920||1200x1900x 1920||1200x3900x 1920|
|Doors||Swing door/sliding door/shutter door Door frame: SS/ALU|
|Nozzles||12(two side)||12(two sides)||18(two sides)||24(two sides)||32(3- side)||64(3- side)|
|Fan||#4250x1 set||#4195 x 2 sets||#4195x2sets||#4250x2sets||#4195x4sets||#4195x8sets|
|HEPA filter||610x610x69 1pcs||610x610x69 2pcs||610x610x69 2pcs||915x610x69 2 pcs||610x610x69 4pcs||610x610x69 8pcs|
|Nozzle||ф 25 or 32mm|
|Control system||IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.|
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Stainless Steel Air Shower's Real Photos:
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
Contact Person: Miss. Rita Guo
