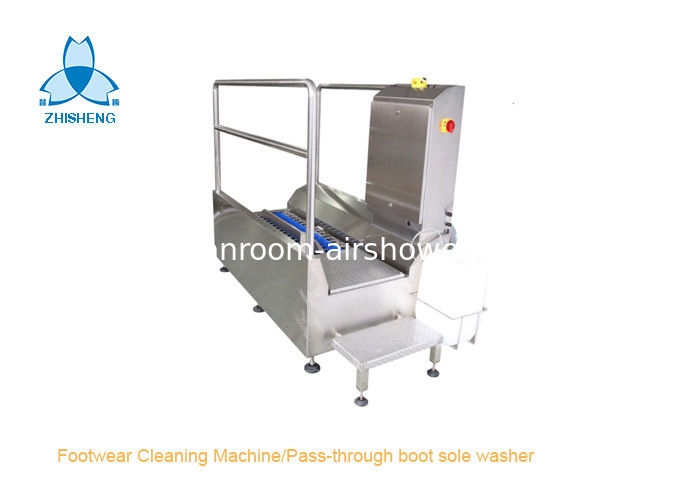

T 2.0 Mm Stainless Steel 304 Footwear Cleaning Machine / Pass Through Boot Sole Washer

T 2.0 Mm Stainless Steel 304 Footwear Cleaning Machine / Pass Through Boot Sole Washer

T 2.0 Mm Stainless Steel 304 Footwear Cleaning Machine / Pass Through Boot Sole Washer

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: ZHISHENG
Certification: CE, ISO9001
Model Number: ZS-9110

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Packaging Details: plywood pallet or case
Delivery Time: Shipped in 20 days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Condition: New Fuel: Water
Use: Cleaning Shoes Cleaning Process: Cold Water Cleaning
Cleaning Type: Immersion / Soak Industry Used: Pharmaceutical Cleaning
Power(W): 680W After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 220V/50HZ/1PH Warranty: 1 Year
Roller Brush: 1000 Mm Length

T =2.0 Mm Stainless Steel 304 Footwear Cleaning Machine / Pass Through Boot Sole Washer



Application: for food factory workshop, kitchen, and other industries.



Material:T=2.0mm Stainless steel 304



Functions:



1. For Shoe and Boot sole.



Sole washer,  cleaning the shoe/boot sole by rolled brush with water automatically by photoelectric sensor.





Material: SS304 for main body, which is prevent from rust.



Working life: 6-7 years at least.





Specification:



This machine for purpose of food, electronic, pharmacy, chemical industry etc.



This staion is mainly suitable for food, electronic, pharmacy, chemical manufacturing company, The products is made of material of SUS304 which is comply with the standard of food industry. We adopt the one-stop



total solution to clean and disinfect on the product. The design of through start upon sensor induction avoid cross contamination due to touch free operation. The machine comes with a tripod turnstile,user are



coerced into cleaning and disinfecting hand before entrance,one-stop solution to clean and disinfect hand and sole.





Function & features:



One-stop solution to clean and disinfect hand and sole.



Through start upon sensor induction avoid cross contamination



Sole Cleaning function:inspective start upon cleaning sole.built-in liquid tank can hold all kinds of detergent or disinfector




Working principle:



Motor drive the 2 brushes on the clean stage to clean sole.



User stand on the clean stage, the brushes rotate to clean the shoe soles.



Start upon sensor induction, stop upon time out



Installation:



Need a flat and smooth floor indoor, to put the machine.



Need water supply and drainage pipe or hose to connect.



Need power supply 220VAC.



Technical parameter:



Model ZS-9110
Original Made in China
Electric control Integration: OMRON/Weidmuller/CHINT
Cleaning model/water temperature

 circulate-line/cleaning with water/10-30



Cleaning type/Clean length Roller brush 2 set/Length 1000mm
Brush material/Spec. Nylon/150x1000mm
Water volume(KGS) 32
Inlet part/pressure SS304 Solenoid valve/6bar
Inlet connector DN25/ 3/4" internal threaded
Soap volume 20L
Proportion of soap Mix soap and water automatically, then spray them to the brush
Water level control   Ball float valve (DC24V)
Water out way Floor drain
Drainage connector 50mm
Start type Start upon sensor induction, stop upon time out (30-60s)
Voltage AC220 50Hz,single phase
Motor power 120W
Total power 360W
Sate guard Leakage/overload/short circuit
Main material SUS304
Size( LxWxH)mm 2105x850x1280
Weight (KGS) 190KG
Packing Plywood case





Packing: Plywood case
