ISO 5 Classified Pass Box Air Shower With Hepa Filter And Conveyor Belt For Pharmacy

ISO 5 Classified Pass Box Air Shower With Hepa Filter And Conveyor Belt For Pharmacy

    • ISO 5 Classified Pass Box Air Shower With Hepa Filter And Conveyor Belt For Pharmacy
    • ISO 5 Classified Pass Box Air Shower With Hepa Filter And Conveyor Belt For Pharmacy
  • ISO 5 Classified Pass Box Air Shower With Hepa Filter And Conveyor Belt For Pharmacy

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO9001
    Model Number: ZS-PB-2000-L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 200sets per month
    Contact Now
    Detailed Product Description
    Material: Powder Coated Steel Type: Air Shower
    Wind Speed: >23m/s Application: Clean Room



    Pass box with Hepa filter and Conveyor belt for Pharmacy, Two doors interlocked

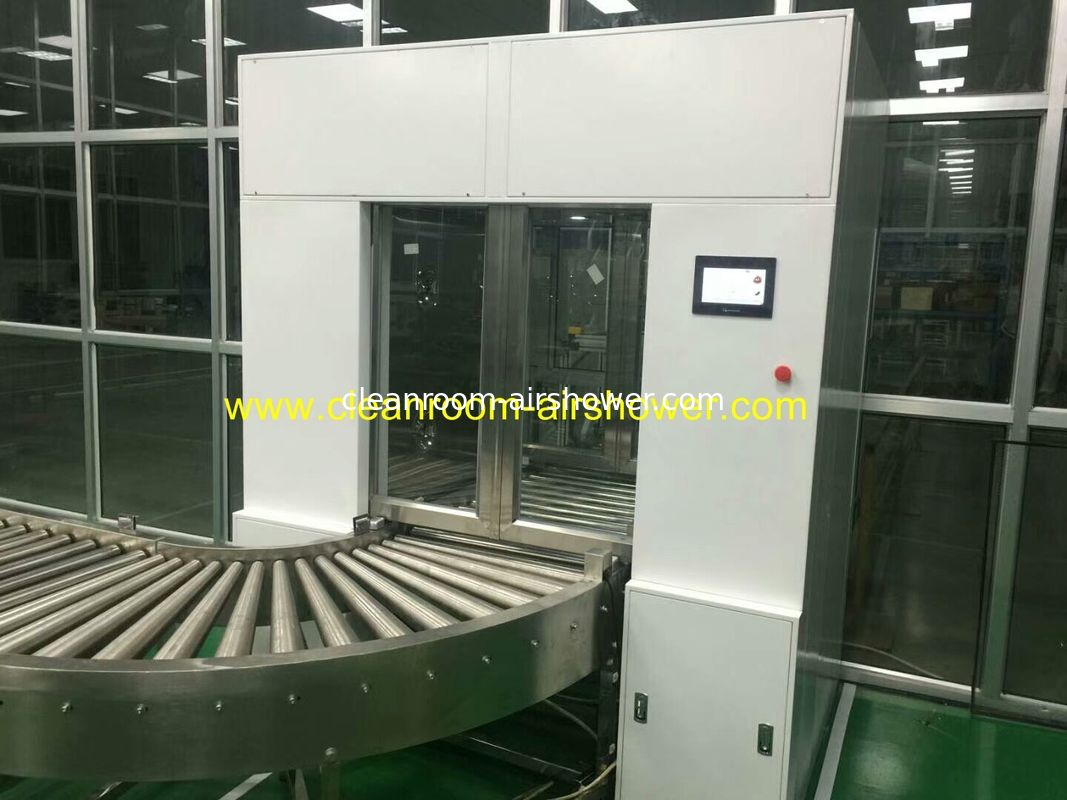

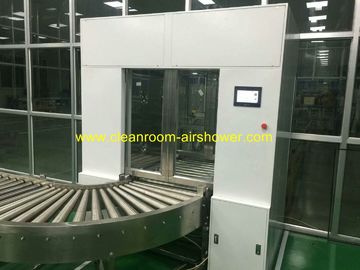

    Air Shower Pass Box With Conveyor



    Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.



    Applications: For Pharmacy, electronic, food and other high claenliness clean room.



    Pass box material: Powder coated steel or stainless steel



    Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.



    Princeples:



    They are cominbed with pass through box and conveyor.



    Pass through box's material is powder coated steel or stainless steel,  it is composed of two automatic sliding doors, HEPA filters,, primary filters, Blower fans, Nozzles. When goods into pass through box, it will be infrated by sensor to blowing to remove the dust particle from goods, the two doors are interlocked, it means that one door open, the other one must be closed, therefore it is prevent the airflow convection between non clean room and clean room, to keep the cleanliness of clean room.

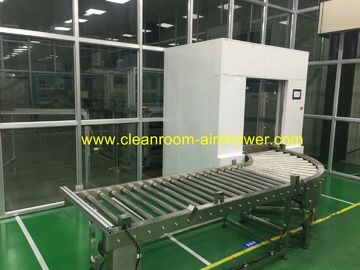

    The conveyor is L type, which is usually installed in the corner of workshop, suitable for the narrow space.



    The workers put the goods on the conveyor, it is moving to the entrance door of pass box, it will open automatically, then moving on into pass box, the 2 doors close and the conveyor stops, then the pass box is blowing and reomving the dust particles from goods, after blowing, the exit door will open automatically, the conveyor will conintues to moving on , the exit doors will be closed, when goods arrive the end point and no worker takes it away, the coveyor will stop.





    The processes are controlled by PLC control,  which is stable and lone-time life.



    Features:



    1. Automatic sliding doors, prevent airflow convection, avoiding to pollute clean room.



    2. When cargo go into pass box, it will blowing automatically.



    3. HEPA filter 99.99%@0.3um



    4. G3 PRE Filter



    The conveyor material: Stainless steel rollers or belt.

    The conveyor running: forward working/backward working/Both forward and backward working.

     The speed of conveyor: 0-0.1m/s



    Optional accessories for Pass Box:

    1. E-stop

    2. UV light

    3. Anti-static PVC curtains for doors, if customers want to reduce the cost.



    we can offer special size and requirement as per our clients.



    PLC control and Touch screen:



    ISO 5 Classified Pass Box Air Shower With Hepa Filter And Conveyor Belt For Pharmacy



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.
