Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors

Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors

    • Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors
    • Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors
  • Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001/CE/ROHS
    Model Number: AS-1600D-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    Contact Now
    Detailed Product Description

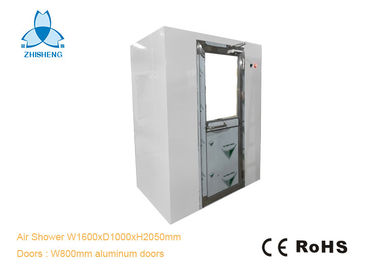

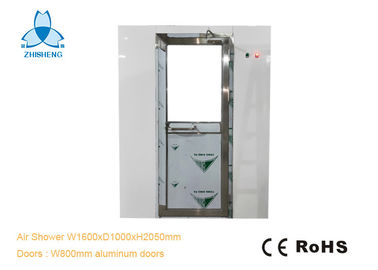

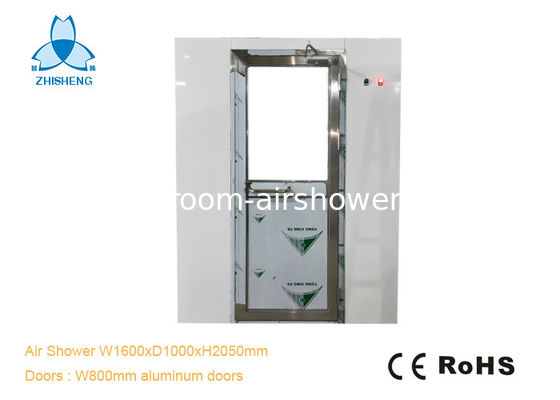

    Condition: New Dimension(WxDxH): W1600xD1000xH2050mm
    In Size(MM): W800xD900xH1920mm Weight: 320KG
    Clean Room: 100 Class Blowing Side: Two Side Blowing
    Material: Power Coated Steel Suitable: One Person
    Voltage: 380V, 50 Or 60Hz, 3PH Warranty: One Year
    After-sales Service Provided: Engineers Available To Service Machinery Overseas

    Personal Air shower clean room To Malaysia, Big casing, stainless steel swing doors



    According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person,  double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


    According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


    According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


    Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels,  cargo shower tunnels.



    Features:



    The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



    Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.







    Product Personal cleanroom air shower for one person
    External size W1600xD1000xH2050MM
    Internal size W800*D900*H1920mm
    Material: T=1.2 mm powder coated steel for main body and base
    Doors type

     W=800mm stainless steel single-leaf sliding door for entrance door and exit door

    Door closer  2 SETs
    Electric lock   2 SETs
    Indicator lights Green and red
    Blower fan   2sets,capacity: 1800CMH/set
    99.99% HEPA filter  610*610*69mm 2 pcs
    Pre filter   1 pcs
    Nozzle 8+8=16 pcs
    Bloweing type Three -side blowing, wind speed: >24m/s
    Control system Control by IC control panel
    Photoelectric snesor Omron brand 1pcs
    Philips LED light 1x18W



    Description:



    Cleanroom air shower  is a kind of partial purifying equipment of strong universality.



    With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,



    it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.



    It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.



    The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
    Principle



    The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.



    After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.



    The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.



    The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

    Full stainless steel Air shower/New Corner Air shower Air shower material



    1. color steel plate



    2. steel plate



    3. stainless steel



    Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.



    Standar size and specificaton:



    Model Air shower Cargo Air shower
    AS-1200D-1 AS-1400D-1 AS-1400D-1.5 AS-1400D-2 CAS-1700T-2 (2 Modules) CAS-1700T-4 (4 Modules)
    Ex size WxDxH (MM) 1200x1000x 2050 1400x1000x 2050 1400x1500x 2050 1400x2000x 2050 1800x2000x2050 1800x4000x 2050
    In size WxDxH (MM) 800x900x 1920 800x900x 1920 800x1400x 1920 800x1900x 1920 1200x1900x 1920 1200x3900x 1920
    Doors Swing door/sliding door/shutter door Door frame: SS/ALU
    Suitable person 1 1 1-2 2-3 Cart
    Nozzles 12(two side) 12(two sides) 18(two sides) 24(two sides) 32(3- side) 64(3- side)
    Fan #4250x1 set #4195 x 2 sets #4195x2sets #4250x2sets #4195x4sets #4195x8sets
    Power(W) 1000W 850W 850W 2000W 1700W 3400W
    HEPA filter 610x610x69 1pcs 610x610x69 2pcs 610x610x69 2pcs 915x610x69 2 pcs 610x610x69 4pcs 610x610x69 8pcs
    Nozzle ф 25 or 32mm
    Voltage 380V/50Hz/3Ph; 220V/50Hz/1Ph
    Control system IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.



    Note: Customer's size and specification can be acceptable.



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Air Shower's drawing:



    Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors

    Personal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing DoorsPersonal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing DoorsPersonal Cleanroom Air Shower To Malaysia Big Casing Stainless Steel Swing Doors







    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
