ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen

ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen

    • ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen
    • ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen
  • ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001/CE/ROHS
    Model Number: AS-1300D-1.2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Dimension(WxDxH): W1300xD1200xH2250mm
    In Size(MM): W800xD1100xH1950mm Weight: 320KG
    Clean Room: 100 Class Blowing Side: 2- Side Blowing
    Material: Power Coated Steel Suitable: Single Person
    Voltage: 380V, 50 Or 60Hz, 3PH Warranty: One Year
    After-sales Service Provided: Engineers Available To Service Machinery Overseas

    PLC Air shower unit connect with dust collector , control by PLC and touch screen



    To keep the cleanliness of cleanroom, when people enter from non-cleanroom, there is a passage room which have to prevent the air convection current to avoiding make dirty the clean room, it calls air shower.



    There are two doors which are in interlock state, one door is open,  other is closed, they cannot be open at the same time.



    When people go into air shower, the blower fan is working, air go throught primary filter, then be absorbed blower fan, then air go through HEPA filters, clean air will be go out from nozzles at high speed wind >20m/s, it can remove the dust particles from people's clothes, hair and shoe.



    people enter clean room only after pass air shower.



    Features:



    1. Air shower room is a dust removal and purification equipment necessary for personnel to enter the clean room dust-free workshop lock. It has strong versatility and can be used with all clean rooms and clean rooms.
    2. When the staff enters the workshop, the clean air filtered by the high-efficiency filter must be sprayed from all directions to the person or the cargo by the rotatable nozzle, thereby effectively and quickly removing the adhesion to the clothes and the goods. Dust, hair and other debris on the surface, it can reduce the pollution caused by people entering and leaving the clean room.



    Product PLC Air shower unit
    External size W1300xD1300xH2250MM
    Internal size W800*D1100*H1950mm
    Material: T=1.2 mm powder coated steel for main body and base
    Doors type

     W=800mm stainless steel 201 single-leaf swing door for entrance door and exit door

    Door closer  2 SETs
    Electric lock   2 SETs
    Indicator lights Green and red
    Blower fan   2sets,capacity: 1800CMH/set
    99.99% HEPA filter  610*610*69mm 2 pcs
    Pre filter   1 pcs
    Nozzle 8+8=16 pcs
    Bloweing type two -side blowing, wind speed: >22-25m/s
    Control system Control by IC control panel
    Photoelectric snesor Omron brand 1pcs
    Philips LED light 1x18W



    Description:



    Cleanroom air shower  is a kind of partial purifying equipment of strong universality.



    With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,



    it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.



    It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.



    The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
    Principle



    The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.



    After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.



    The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.



    The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

    Full stainless steel Air shower/New Corner Air shower Air shower material



    1. color steel plate



    2. steel plate



    3. stainless steel



    Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.



    Standar size and specificaton:



    Model Air shower Cargo Air shower
    AS-1200D-1 AS-1400D-1 AS-1400D-1.5 AS-1400D-2 CAS-1700T-2 (2 Modules) CAS-1700T-4 (4 Modules)
    Ex size WxDxH (MM) 1200x1000x 2050 1400x1000x 2050 1400x1500x 2050 1400x2000x 2050 1800x2000x2050 1800x4000x 2050
    In size WxDxH (MM) 800x900x 1920 800x900x 1920 800x1400x 1920 800x1900x 1920 1200x1900x 1920 1200x3900x 1920
    Doors Swing door/sliding door/shutter door Door frame: SS/ALU
    Suitable person 1 1 1-2 2-3 Cart
    Nozzles 12(two side) 12(two sides) 18(two sides) 24(two sides) 32(3- side) 64(3- side)
    Fan #4250x1 set #4195 x 2 sets #4195x2sets #4250x2sets #4195x4sets #4195x8sets
    Power(W) 1000W 850W 850W 2000W 1700W 3400W
    HEPA filter 610x610x69 1pcs 610x610x69 2pcs 610x610x69 2pcs 915x610x69 2 pcs 610x610x69 4pcs 610x610x69 8pcs
    Nozzle ф 25 or 32mm
    Voltage 380V/50Hz/3Ph; 220V/50Hz/1Ph
    Control system IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.



    Note: Customer's size and specification can be acceptable.



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Air Shower's drawing:

    ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen

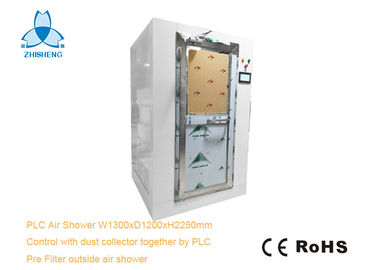

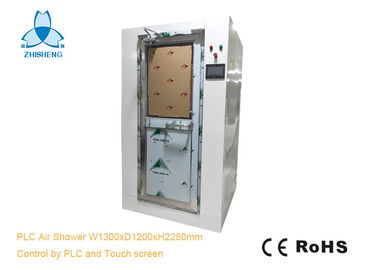

    Photo of PLC Air Shower

    ROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch ScreenROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch ScreenROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch ScreenROHS Cleanroom Air Shower Unit Connect With Dust Collector Control By PLC And Touch Screen





    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
