|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Clean Room:||100 Class||Blowing Side:||Two Side Blowing|
|Material:||Power Coated Steel||Suitable:||2-3 Persons|
|Voltage:||AC380V, 50 Hz, 3PH||Warranty:||One Year|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
50Hz Air Showers,
AC380V Air Showers,
ISO 9001 Clean Room Air Showers
COVID-19 Sanitized Air Shower and Shoe Sole Cleaning Machine for Entrance-- The rapid sanitized Tunnels
The rapid snitized tunnel ( disinfection channel system )can quickly cut off the virus transmission and avoid carrying the virus to the new area from the surface of the human body.
The system consists of two parts: the sole cleaning machine and the body surface disinfection (Sanitized Air shower tunnel).
Sole disinfection: When a person reaches the entrance of the passage through the slope,
the system automatically senses and starts the sole disinfection area in the black area to disinfect the sole.
After the disinfection is completed, the suction area is left for 2 seconds to complete the sole cleaning and disinfection.
Body surface disinfection (Sanitized Air shower tunnel):
After passing through the shoe sole disinfection area, the person enters the body surface disinfection channel.
The compound disinfectant in the channel will contact and disinfect the body surface clothing and exposed skin without dead angles in 360 degrees.
Just stay in the area for 10 seconds. Kill 99.9% of bacteria and viruses.
Size and Specification:
Size for Air Shower: External size: W1290*D2000*H2180mm, internal size: W800*D1910*H1930mm
Matarial fo air shower: powder coated steel for outside, SS304 for inside
Blower fan: 4sets
HEPA filter: 2 pcs
Size for Sole Cleaning Machine: L1838xW768xH140mm
Material for sole cleaning machine: SS304
Sterilization principles and characteristics:
The rapid disinfection channel uses a plasma colloidal particle generator.
When personnel pass through the disinfection channel, the disinfection particles can be quickly contacted with microorganisms on the surface clothing
and exposed skin without dead angles by air shower, so as to achieve a rapid disinfection effect. .
It can also quickly capture and replace the colloidal particles attached to the surface clothing in the atomized environment, such as droplet colloidal particles, suspended particles, PM2.5, etc.
The captured and replaced particles form large particles in the atomized environment.
Particles are also quickly killed in a disinfected environment, and the entire disinfection channel is kept clean in real time, avoiding cross-contamination of personnel.
The shoe sole is a sterilization loophole that people tend to ignore, and the rapid disinfection channel uses a sole cleaning machine to sterilize it to avoid sterilization loopholes.
The features of the rapid disinfection channel are as follows
Rapid disinfection: disinfection with compound disinfectant colloidal particles, no dead angle contact with microorganisms, rapid killing
Intelligent control: realize intelligent control of the system through infrared sensing function
Safety anti-slip: Both the sole disinfection area and the body surface disinfection area are designed with anti-slip to avoid slipping in wet environment
Simple operation: The system is easy to assemble and does not require professional operation. It can be applied through operation manual or simple training.
Good compatibility: the supporting compound disinfectant is harmless to personnel and no residue
Low maintenance cost: There are no special maintenance parts in the system, and no other consumables except for disinfectants and power supplies for daily use
No cross-contamination: keep disinfection in the disinfection area, and there is no or virus residue in the disinfection channel to avoid cross-contamination.

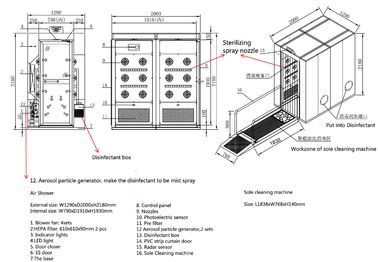

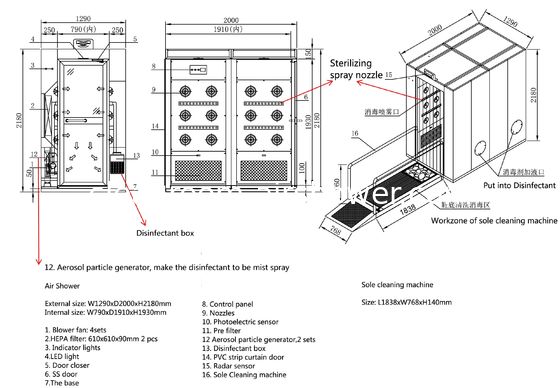

Drawing of Santized Air Shower and Sole Cleaning machine
