AS-2040D-2.2-AD Cleanroom Air Shower with Double-leaf Sliding Doors

AS-2040D-2.2-AD Air Shower with Auto Double-leaf Sliding Doors, Powder coated steel for outside, SS304 for inside​

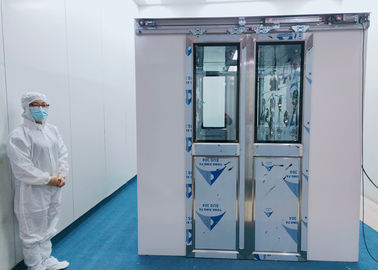

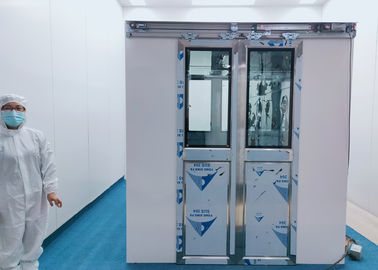

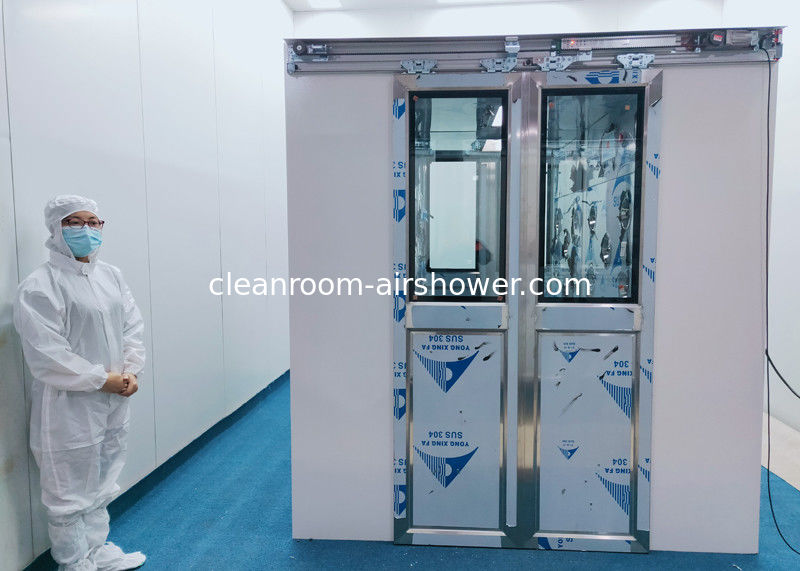

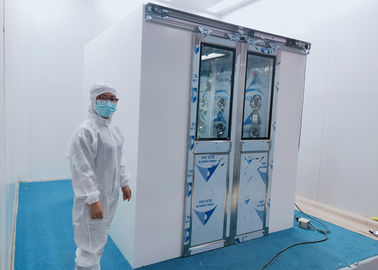

Attached pictures of air showers which was sent to Spain

Power supply: AC380V, 50hz, three phase

Double-leaf auto sliding doors.

Air shower for materials.pdf

Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles ,   wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.

According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person,  double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,

According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.

According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower

Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels,  cargo shower tunnels.

Features:

The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.

Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.

Photos of air shower:

Drawing:

Description:

Cleanroom air shower  is a kind of partial purifying equipment of strong universality.

With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,

it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.

It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.

The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle

The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.

After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.

The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.

The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

Full stainless steel Air shower/New Corner Air shower Air shower material


1. color steel plate

2. steel plate

3. stainless steel

Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.

Standar size and specificaton:

Note: Customer's size and specification can be acceptable.

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.

Why you choose ZHISHENG Company ?

Professional service:

Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.

Cleanroom equipments,like air shower, FFU. It is one-year warranty.
