Product Details:
|
| Material: | SS304 Frame | Material For Main Body: | Anti-static PVC Curtain |
|---|---|---|---|
| Purification Grade: | Class 1000 | FFU: | 1set |
| Lamp: | NONE | Size: | W1200xD600xH2200mm |
| High Light: | SS304 Frame Clean Room Equipment,ISO9001 PVC Curtain Clean Room Equipment |
||

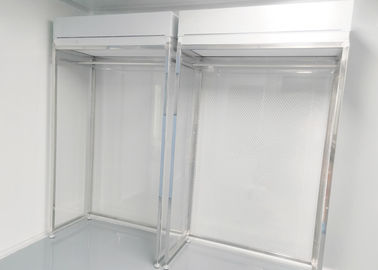

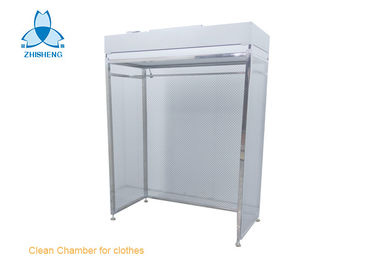

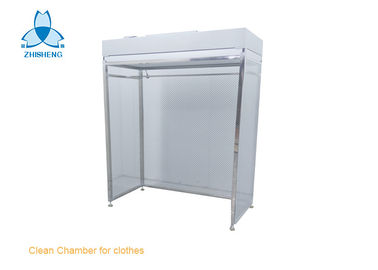

Clean closet for clothes for Class 100 clean room
Size:W1200xD600xH2100mm
Material for frame: SS304
Material for sides: Anti-static PVC curtain
On the top is FFU, which include centrifugal fan side and HEPA filter, it can blow clean airflow, which vertical laminar flow to blow the dust particles from the clothes, make sure the purification of the clean room.
Clean closet, also known as dust-free closet, is a kind of special clean closet, which is widely used in the storage of clean clothes in special occasions in the medicine, preparation, electronics, precision instruments, meters, food and other industries, so that the clean clothes are collected and transported. It is not polluted by other air.
Features
1. High-efficiency centrifugal fan , low noise, maintenance-free, low vibration, long life and stable performance.
2. HEPA filter, high efficiency, ultra-low resistance, PTEE membrane filter-energy saving over 30%.
3. Can install the American Dwyer pressure difference meter indicates the pressure difference on both sides of the high-efficiency filter and promptly reminds the replacement of the high-efficiency filter.
4. Advanced design, designed according to US Federal Standard 209E, with extremely high reliability.
5. Pre-filters and chemical molecular filters can be added as needed to create a better production environment.
Product configuration
1. The filtration efficiency is 99.99%@0.3um or 99.9995%@0.12um.
2. The material can be selected from stainless steel or all cold plate electrostatic spraying, or both.
3. Optional digital display or pointer display for pressure display.
4. Optional yellow light/ultraviolet germicidal lamp.
5. Optional American RICHMOND anti-static ion system.
6. Optional PLC automatic control system.
7. Optional air self-circulation system to prevent secondary pollution.
Product use Clean wardrobes and self-cleaning wardrobes are mainly used in clean rooms, clean rooms, laboratories, operating rooms, and GMP plants in the air purification industry.
| Model | ZS-CCC-1200 | ZS-CCC-2000 |
| Size(L×W×H) | 1200×600×2200 | 2000×600×2200 |
| Airflow(m3/h) | 1200 | 2000 |
| Clothes qty | 15-20 | 20-30 |
| purification | class 100 | class 100 |
| HEPA filter | 99.99%@ 0.3μm | 99.99%@ 0.3μm |
| Noise | ＜68Db | ＜68Db |
| Material for frame | Stainless steel or Aluminum | Stainless steel or Aluminum |
| Power supply | 220VAC,50Hz | 220VAC,50Hz |
| Power | 0.16Kw | 0.20Kw |
