Stainless Steel Swing Doors Cleanroom Air Shower For 2 Person

Stainless Steel Swing Doors Cleanroom Air Shower For 2 Person

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
AS-1600D-1.5
Condition:
New
Dimension(WxDxH):
W1600xD1500xH2100mm
In Size(MM):
W1000xD1400xH1970mm
Weight:
450KG
Clean Room:
100 Class
Blowing Side:
Three Side Blowing
Material:
Power Coated Steel
Suitable:
Two Person
Voltage:
380V, 50 Or 60Hz, 3PH
Warranty:
One Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

Swing Doors Cleanroom Air Shower

,

CE 2 Person Cleanroom Air Shower

,

380V air shower room

Product Description

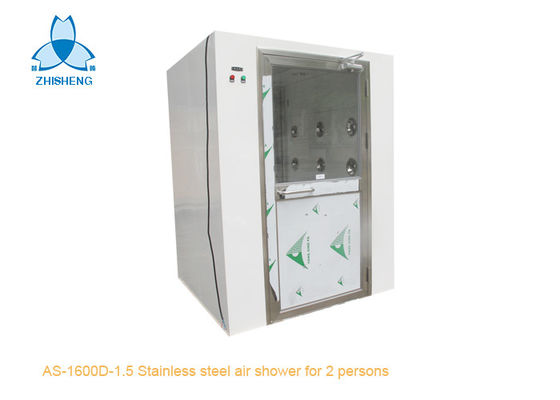

AS-1600D-1.5 Clean Room Air Shower for 2 Person, Stainless steel swing doors



Air shower.pdf

According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person,  double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels,  cargo shower tunnels.



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.





Size and Specifications:





Product AS-1600D-1.5 Clean Room Air Shower for 2 Person, Stainless steel swing doors
External size W1600xD1500xH2100MM
Internal size W1000*D1400*H1970mm
Material: T=1.2 mm powder coated steel for main body and base
Doors type

 W=1000mm stainless steel single-leaf sliding door for entrance door and exit door

Door closer  2 SETs
Electric lock   2 SETs
Indicator lights Green and red
Blower fan   2sets,capacity: 2500CMH/set
99.99% HEPA filter  610*610*69mm 2 pcs
Pre filter   1 pcs
Nozzle 9+9+6=24pcs
Bloweing type Three -side blowing, wind speed: >24m/s
Control system Control by IC control panel
Photoelectric snesor Omron brand 1pcs
Philips LED light 1x18W



Description:



Cleanroom air shower  is a kind of partial purifying equipment of strong universality.



With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,



it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.



It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.



The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle



The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.



After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.



The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.



The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

Full stainless steel Air shower/New Corner Air shower Air shower material



1. color steel plate



2. steel plate



3. stainless steel



Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.



Standar size and specificaton:



Model Air shower Cargo Air shower
AS-1200D-1 AS-1400D-1 AS-1400D-1.5 AS-1400D-2 CAS-1700T-2 (2 Modules)
External dimensions WxHxD(mm) 1200x1000x 2100 1400x1000x 2100 1400x1500x 2100 1400x2000x 2100 1800x2000x2100
In Dimensions WxHxD(mm) 800x900x 1960 800x900x 1960 800x1400x 1960 800x1900x 1960 1200x1900x 1960
Material for casing
  • Power coated steel, 2 powder coated steel for outside and SS304 for inside,or Full SS304
Doors Swing door /Sliding door/High speed shutter door; Material: stainless steel or aluminum
Suitable person 1 1 1-2 2-3 Cart
Nozzles 12(two side) 12(two sides) 18(two sides) 24(two sides) 32(three sides)
Blower fan #4250x 1 set #4195 x 2 sets #4195x2sets #4250x2sets #4195x4sets
Blow power(W) 1000W 850W 850W 2000W 1700W
HEPA filter’s dimensions

610x610x69

one piece

610x610x69 two piece 610x610x69 two piece 915x610x69 two pieces

610x610x69

4pcs

Nozzle diameter 32mm
Air shower time 0~99s Adjustable
Spurt wind speed 20~25m/s
Voltage 380V/50Hz/3Ph; 220V/50Hz/1Ph
Filter efficiency Above 99.99% efficiency on 0.3um particles
Control system IC control panel, electronic interlock and automatic blowing



Note: Customer's size and specification can be acceptable.



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Air Shower's drawing:





Stainless Steel Swing Doors Cleanroom Air Shower For 2 Person 0

Stainless Steel Swing Doors Cleanroom Air Shower For 2 Person 1







Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
