|Clean Room:||100 Class||Blowing Side:||Two Side Blowing|
|Material:||Power Coated Steel||Suitable:||One Person|
|Voltage:||380V, 50 Or 60Hz, 3PH||Warranty:||One Year|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
Single Person Cleanroom Air Shower,
Swing Doors Cleanroom Air Shower,
power coated steel 100 clean room
AS-1500D-1 Single person air shower with aluminum swing doors, high standard type
Door type: Manual single-leaf aluminum door frame with half glass
According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.
According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
Size and Specifications:
|Product||AS-1500D-1 Single person air shower with aluminum swing doors, high standard type|
|Material:||T=1.2 mm powder coated steel for main body and base|
W=800mm single-leaf aluminum swing doors
|Door closer||2 SETs|
|Electric lock||2 SETs|
|Indicator lights||Green and red|
|Blower fan||2sets,capacity: 2500CMH/set|
|99.99% HEPA filter||610*610*69mm 2 pcs|
|Pre filter||1 pcs|
|Bloweing type||2 -side blowing, wind speed: >24m/s|
|Control system||Control by IC control panel|
|Photoelectric snesor||Omron brand 1pcs|
|Philips LED light||1x18W|
Air Shower's Drawing:

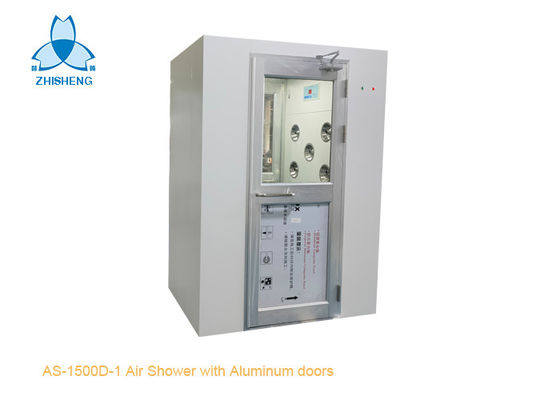

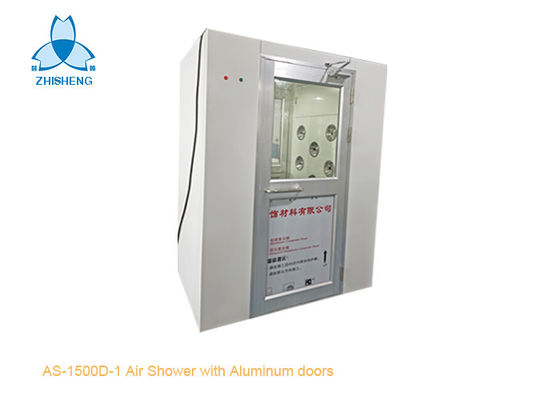

Air Shower's photoes:
Cleanroom air shower is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.
It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.
The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Standar size and specificaton:
|Model||Air shower||Cargo Air shower|
|AS-1200D-1||AS-1400D-1||AS-1400D-1.5||AS-1400D-2||CAS-1700T-2 (2 Modules)|
|External dimensions WxHxD(mm)||1200x1000x 2100||1400x1000x 2100||1400x1500x 2100||1400x2000x 2100||1800x2000x2100|
|In Dimensions WxHxD(mm)||800x900x 1960||800x900x 1960||800x1400x 1960||800x1900x 1960||1200x1900x 1960|
|Material for casing||
|Doors||Swing door /Sliding door/High speed shutter door; Material: stainless steel or aluminum|
|Nozzles||12(two side)||12(two sides)||18(two sides)||24(two sides)||32(three sides)|
|Blower fan||#4250x 1 set||#4195 x 2 sets||#4195x2sets||#4250x2sets||#4195x4sets|
|HEPA filter’s dimensions||
|610x610x69 two piece||610x610x69 two piece||915x610x69 two pieces||
|Air shower time||0~99s Adjustable|
|Spurt wind speed||20~25m/s|
|Filter efficiency||Above 99.99% efficiency on 0.3um particles|
|Control system||IC control panel, electronic interlock and automatic blowing|
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
