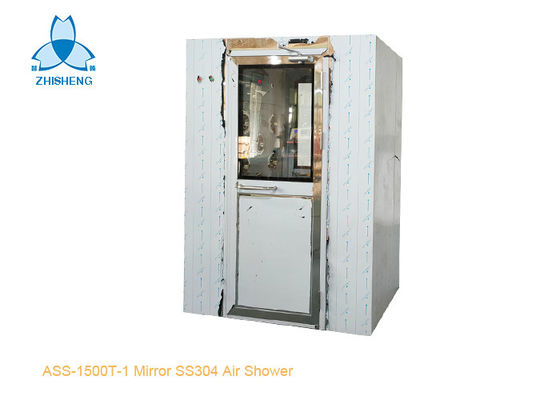

One Person Mirror SS304 Air Shower Room With UV Light

One Person Mirror SS304 Air Shower Room With UV Light

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: about 15 days upon receipt of deposit
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
ASS-1500T-1
Condition:
New
Dimension(WxDxH):
W1500xD1000xH2100mm
In Size(MM):
W800xD900xH1960mm
Weight:
350KG
Clean Room:
100 Class
Blowing Side:
Three Side Blowing
Material:
Stainless Steel 304
Suitable:
1 Person
Voltage:
AC380V, 50 Hz, 3PH
Warranty:
One Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

SS304 Air Shower Room

,

One Person Air Shower Room

,

virus killing air shower cleanroom

Product Description

Mirror SS304 Air shower room for one person, with UV light, Single-leaf swing doors



Material: Mirror stainless steel 304 for main body



With UV light to kill the virus.



Air shower.pdf



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.



Power supply: AC380V, 50hz, three phase



Double-layer glass for door windws



Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles ,   wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.



According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person,  double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels,  cargo shower tunnels.



Size and specification



Product Mirror SS304 Air shower room for one person, with UV light, Single-leaf swing doors
External size W1500xD1000xH2100mm
Internal size W800*D900*H1960mm
Material: T=1.2 mm mirror stainless steel 304 for main body and base
Doors type

 W=800mm stainless steel single-leaf sliding door for entrance door and exit door

Door closer  2 sets
Electric lock   2 sets
Indicator lights Green and red
Blower fan  2sets,capacity: 2500CMH/set
99.99% HEPA filter  610*610*69mm 2pcs
Pre filter  2 pcs
Nozzle 8+8+4=20 pcs
Bloweing type 3 -side blowing, wind speed: >20-25m/s
Control system Control by IC control panel
Photoelectric snesor Omron brand 1pcs
Philips LED light 1x18W





Air Shower's Drawing:



One Person Mirror SS304 Air Shower Room With UV Light 0

One Person Mirror SS304 Air Shower Room With UV Light 1

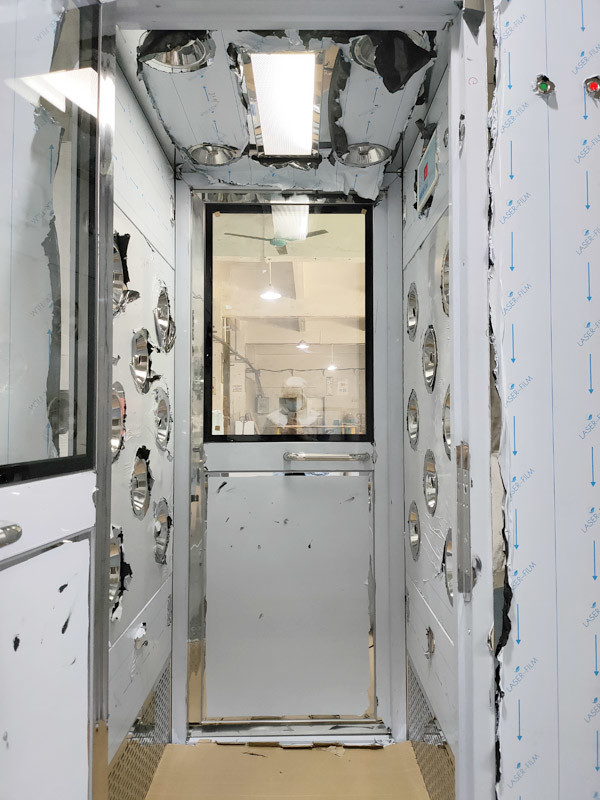

Air shower's photoes



One Person Mirror SS304 Air Shower Room With UV Light 2

One Person Mirror SS304 Air Shower Room With UV Light 3One Person Mirror SS304 Air Shower Room With UV Light 4

Description:



Cleanroom air shower  is a kind of partial purifying equipment of strong universality.



With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,



it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.



It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.



The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle



The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.



After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.



The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.



The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

Full stainless steel Air shower/New Corner Air shower Air shower material



1. color steel plate



2. steel plate



3. stainless steel



Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.



Standar size and specificaton:



Model Air shower Cargo Air shower
AS-1200D-1 AS-1400D-1 AS-1400D-1.5 AS-1400D-2 CAS-1700T-2 (2 Modules) CAS-1700T-4 (4 Modules)
Ex size WxDxH (MM) 1200x1000x 2050 1400x1000x 2050 1400x1500x 2050 1400x2000x 2050 1800x2000x2050 1800x4000x 2050
In size WxDxH (MM) 800x900x 1920 800x900x 1920 800x1400x 1920 800x1900x 1920 1200x1900x 1920 1200x3900x 1920
Doors Swing door/sliding door/shutter door Door frame: SS/ALU
Suitable person 1 1 1-2 2-3 Cart
Nozzles 12(two side) 12(two sides) 18(two sides) 24(two sides) 32(3- side) 64(3- side)
Fan #4250x1 set #4195 x 2 sets #4195x2sets #4250x2sets #4195x4sets #4195x8sets
Power(W) 1000W 850W 850W 2000W 1700W 3400W
HEPA filter 610x610x69 1pcs 610x610x69 2pcs 610x610x69 2pcs 915x610x69 2 pcs 610x610x69 4pcs 610x610x69 8pcs
Nozzle ф 25 or 32mm
Voltage 380V/50Hz/3Ph; 220V/50Hz/1Ph
Control system IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.



Note: Customer's size and specification can be acceptable.



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Air Shower's drawing:



One Person Mirror SS304 Air Shower Room With UV Light 5One Person Mirror SS304 Air Shower Room With UV Light 6



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
