|Clean Room:||100 Class||Blowing Side:||Two Side Blowing|
|Material:||Stainless Steel 304||Suitable:||2 Persons|
|Voltage:||AC380V, 50 Hz, 3PH||Warranty:||One Year|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
Two Person Stainless Steel Air Shower,
Class 100 Stainless Steel Air Shower,
AC380V clean room air showers

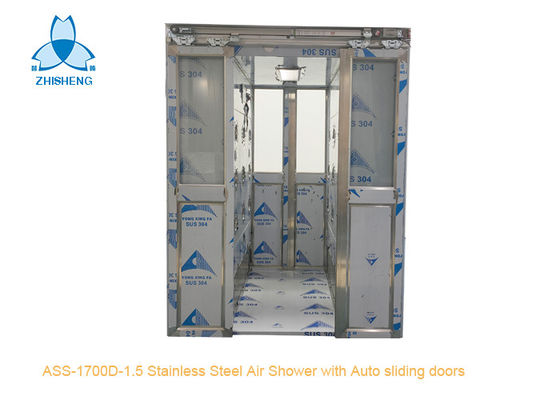

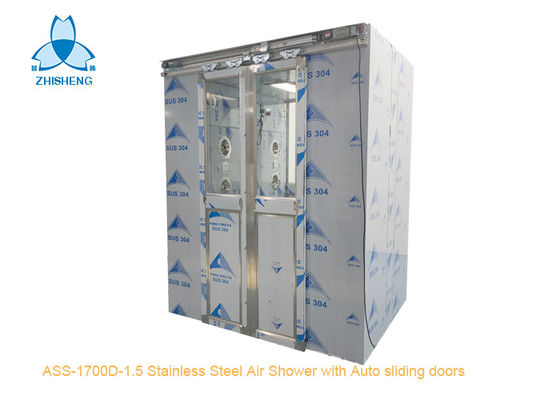

ASS-1700D-1.5 Stainless steel air shower with auto double-leaf sliding doors for two person
Door type: Double-leaf auto sliding doors.
Power supply: AC380V, 50hz, three phase
Air shower is assembled with cabinets, roof, base, doors, electric locks, door closers, door sensers, photoelectric sensors, blower fans, HEPA filters, pre filters,nozzles, IC control panels, PCB board and other parts. Two doors are interlocked, one is open, other is closed, when people go into air shower, and close the doors, the photoelectric sensor is infrated by person, the fan is working, return air from primary filter into fan, then it is blowed through HEPA filter, high airflow go through smal diameter of nozzles , wind speed 22m/s from nozzles, which will blowing the dust from persons, after blowing, open the exit door, person enter clean room, thus avoiding to people take dust into cleanroom, keep cleanliness of clean room.
According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.
According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
|Product||Air Shower with auto double-leaf sliding doors|
|Material:||T=1.2 mm stainless steel 304 for main body and the base|
W=800mm stainless steel double-leaf sliding door for entrance door and exit door
|Blower fan||2sets,capacity: 2500CMH/set|
|99.99% HEPA filter||610*610*69mm 2pcs|
|Pre filter||2 pcs|
|Bloweing type||Two -side blowing, wind speed: >20-25m/s|
|Control system||Control by IC control panel|
|Photoelectric snesor||Omron brand 1pcs|
|Philips LED light||1x18W|

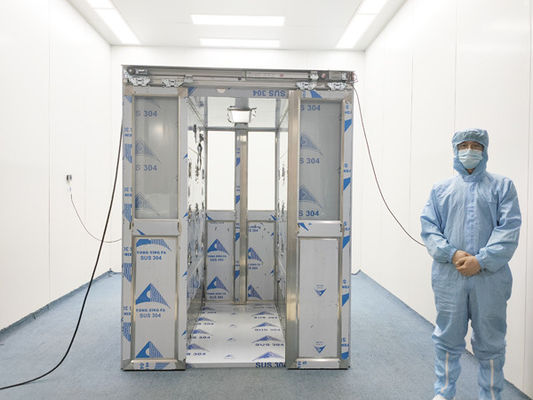

Photos of air shower:
Cleanroom air shower is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance,
it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields.
It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first.
The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Full stainless steel Air shower/New Corner Air shower Air shower material
1. color steel plate
2. steel plate
3. stainless steel
Application: Stainless Steel Air Shower is usually used for Food , medicine, biological or other industry.
Standar size and specificaton:
|Model||Air shower||Cargo Air shower|
|AS-1200D-1||AS-1400D-1||AS-1400D-1.5||AS-1400D-2||CAS-1700T-2 (2 Modules)||CAS-1700T-4 (4 Modules)|
|Ex size WxDxH (MM)||1200x1000x 2050||1400x1000x 2050||1400x1500x 2050||1400x2000x 2050||1800x2000x2050||1800x4000x 2050|
|In size WxDxH (MM)||800x900x 1920||800x900x 1920||800x1400x 1920||800x1900x 1920||1200x1900x 1920||1200x3900x 1920|
|Doors||Swing door/sliding door/shutter door Door frame: SS/ALU|
|Nozzles||12(two side)||12(two sides)||18(two sides)||24(two sides)||32(3- side)||64(3- side)|
|Fan||#4250x1 set||#4195 x 2 sets||#4195x2sets||#4250x2sets||#4195x4sets||#4195x8sets|
|HEPA filter||610x610x69 1pcs||610x610x69 2pcs||610x610x69 2pcs||915x610x69 2 pcs||610x610x69 4pcs||610x610x69 8pcs|
|Nozzle||ф 25 or 32mm|
|Control system||IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked.|
Note: Customer's size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
