|Clean Type:||Water||Use:||Wash Sole|
|Cleaning Process:||Cold Water Cleaning||Cleaning Type:||Immersion / Soak|
|Industry Used:||Pharmaceutical Cleaning||Power(W):||20W|
|Dimension(L*W*H):||1055x750x120mm||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|

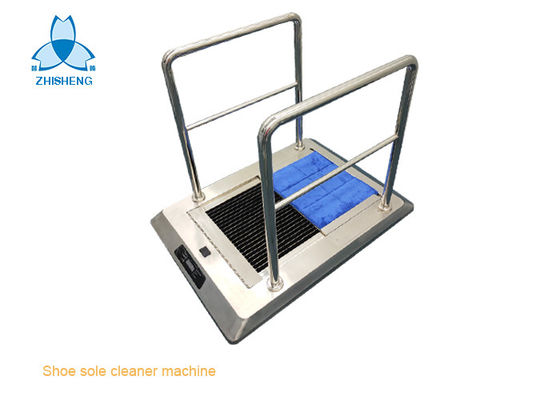

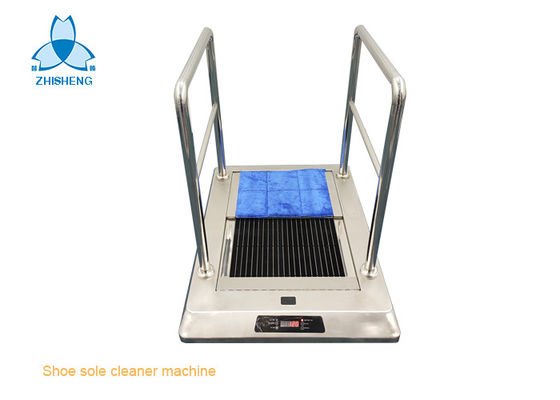

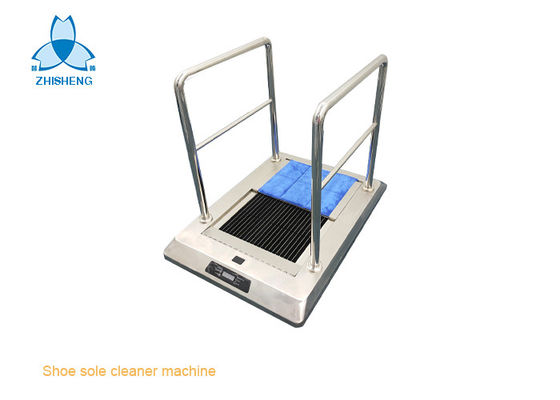

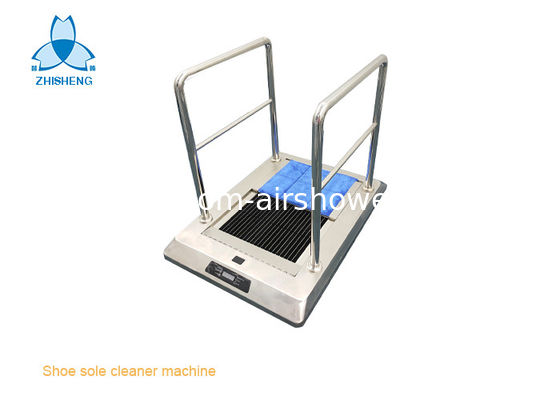

SS304 Shoe Sole Cleaner Machine,
Cleanroom Shoe Sole Cleaner Machine,
Cleanroom Shoe Sole Washer
Automatic Shoe Sole Cleaner machine for clean room, automatic water in and automatic drainage
Auto Shoe Sole cleaner is used before the clean room or clean zone, to keep the cleanness of clean room or clean zone.
Automatic sole cleaning machine is suitable for all kinds of industries with high environmental requirements, such as: family, hotel club, aerospace, high-speed rail industry, electronic appliances, machinery industry, hardware industry, food industry, manufacturing industry, mobile phone industry, aquaculture industry , automation industry, exhibition hall exhibition industry, laboratory research and development industry, semiconductor production, medical industry, purification system, etc., especially the clean room workshop, now all the clean room workshops need the sole cleaning machine, the sole cleaning machine becomes the clean room An essential cleaning device for the enterprise.
1. The appearance of the machine is new designed, which is more good-looking and comfortable.
2. Improve the workmanship
3. Imporove the quality, reduce the faults, make sure the lifetime longer.
Where to USE
Clean room and/or Sanitary Area
For Kiechen,Semi Conductor, Electronics, Electron, Food, Pharmaceutical Cosmetic Company Lab/ Hospital and so on.
Easy to clean and maintain
Wet clean type to clean dust and sterilization
Can add disinfectant into the water tank to sterilizing
Application and Features:
Shoe sole washing and cleaning by water:
Shoe Sole cleaner can effectively remove the stubborn stains on the sole, such as oil, mud, particles while people enter into the clean room or critical clean work zone. It is possible for this device to use a detergent along with disinfectant together. Therefore, it is washing and cleaning by water, no dust and no water spray when it is cleaning.
The distance between brush is just 19mm, so it is effective to clean the sole when people walk on the cleaning zone. People is on the brush for 5-10 seconds, then go alone to the mat to absorb the water on the sole, then it is OK. When people leave the machine, it will stop automatically in 10 seconds. After 30 minutes working, the sole cleaner can be water out automatically.
The times can be adjustable. By the way, it needs to clean the rubbish once every 2 days.
Standard size and specifications:
|Model||External size (LxWxH)mm||Cleaning area size (mm)||Drying area size(mm)||Voltage||Power of motor||Power of Pump|
Ⅵ.Control panel display
1. Technical parameters:
Working voltage: AC100-240V, 50/60Hz
Working temperature: -200C-850C
2. Main functions of control panel:
(1) When people pass through the machine, it is inducted and the rotating motor drives the beld brushes to move and clean the soles , and sets the number of persons.
(2) It has the function of automatic water supply and replenishment, which can maintain the water balance inside the machine.
(3) There is a water shortage alarm function.
(4) The function of automatic drainage (larger garbage or sedimentary debris needs to be manually cleaned with a suction device on a regular basis).
(5) There is a manual drainage function.
(6) There is a manual dirt suction function.
(7) With power-off memory function
(8) It has the function of automatically stopping the water supply when the power is turned off to prevent the water from overflowing.
(9) ON/OFF functions
How to maintain the machine:
1. Control system: No water is allowed. No water into Motor and electric parts !
2. Draiange pump: Should completely clean up the sediment in half a month
3. Must change the water every day, and must clean up garbage every day, fobid to drop garbage into the machine.
4. Need to put on grease on the bearing every two months.
