Product Details:
|
| Condition: | New | Dimension(WxDxH): | W1400xD1000xH2100mm |
|---|---|---|---|
| In Size(MM): | W800xD900xH1960 | Blowing Side: | 2- Side Blowing |
| Material: | T=1.2 Stainless Steel 304 | Suitable: | One Person |
| Voltage: | AC380V, 50 Hz, 3PH | ||
| High Light: | SUS304 Air Shower Room,Single Person Air Shower Room,Mirror Stainless Steel Air Shower |
||

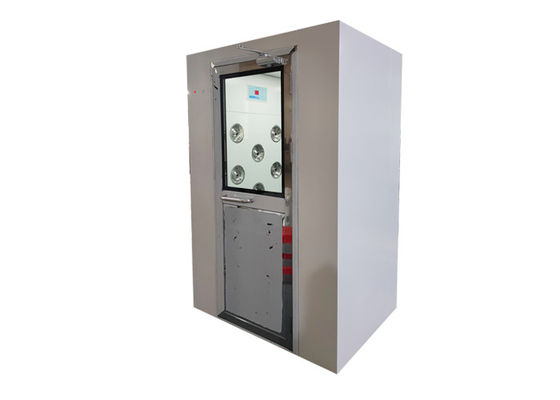

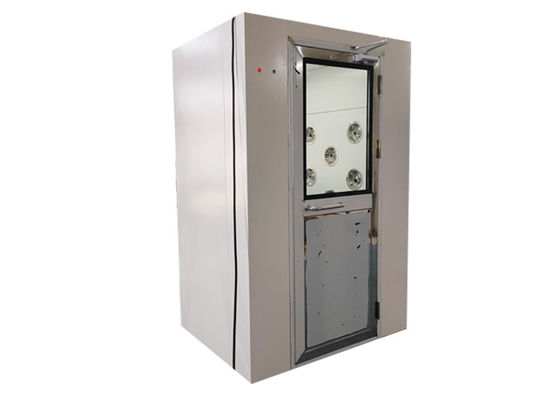

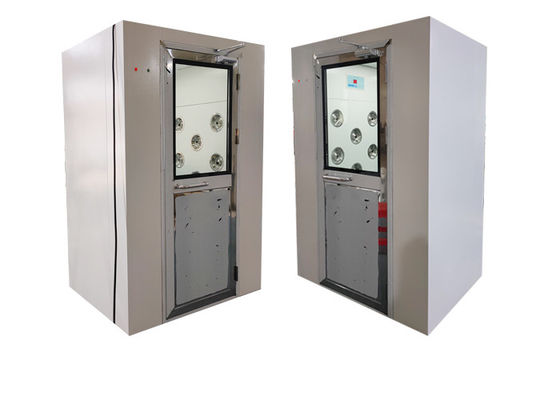

Mirror SS304 Air shower room for single person, Mirror SS304 Swing doors
Mirror SS304, no fingerprint on the surface.
Material: T=1.2mm stainless steel 304 for main body, and T=1.5mm stainless steel 304 for the base floor.
Many factories use T=1.0mm steel to reduce the cost.
According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.
According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.
Features:
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
Size and Specifications:
| Product | Mirror SS304 Air shower room for single person, Mirror SS304 Swing doors |
| External size | W1400xD1000xH2100mm |
| Internal size | W800xD900xH1960mm |
| Material: | T=1.2 mm mirror stainless steel 304 |
| Doors type | W=800mm mirror single-leaf SS304 swing doors |
| Door closer | 2 SETs |
| Electric lock | 2 SETs |
| Indicator lights | Green / Red/Yellow, metal type |
| Blower fan | 2sets,capacity: 2500CMH/set |
| 99.99% HEPA filter | 610*610*69mm 2 pcs |
| Pre filter | 1 pcs |
| Nozzle | 8+8=16pcs |
| Bloweing type | 2 -side blowing, wind speed: >24m/s |
| Control system | IC display |
| Photoelectric snesor | Omron brand 1pcs |
| Philips LED light |
1x18W |
Display
Air shower inside:
Metal Indicator light -----Good-looking, high quality
Lock Screws---It is easy for opening the panel inside and maintain air shower.
