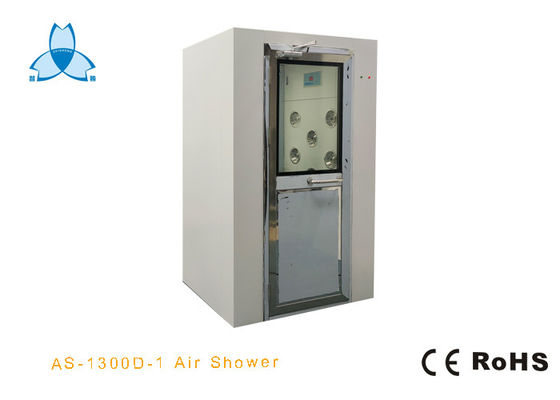

Mirror SS304 Doors Air Shower Room For Single Person

Mirror SS304 Doors Air Shower Room For Single Person
Mirror SS304 Doors Air Shower Room For Single Person Mirror SS304 Doors Air Shower Room For Single Person

Large Image :  Mirror SS304 Doors Air Shower Room For Single Person

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO 9001/CE/ROHS
Model Number: ASS-1300D-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

Mirror SS304 Doors Air Shower Room For Single Person

Description
Condition: New Dimension(WxDxH): W1300xD1000xH2100mm
In Size(MM): W800xD900xH1960 Blowing Side: 2- Side Blowing
Material: T=1.2 Electro-galvanized Suitable: One Person
Voltage: AC380V, 50 Hz, 3PH
High Light:

SS304 Doors Air Shower Room

,

Air Shower Room For Single Person

,

Mirror SS304 Doors Air Shower Booth

Mirror SS304 Air shower room for single person, Mirror SS304 Swing doors



Mirror SS304,  no fingerprint on the surface.



Material: T=1.2mm electro-galvanized for main body, and T=1.5mm stainless steel 304 for the base floor.



Electro-galvanized steel is better than cold rolled steel.



Air shower.pdf



According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.





Size and Specifications:





Product Air shower room for single person, Mirror SS304 Swing doors
External size W1300xD1000xH2100mm
Internal size W800xD900xH1960mm
Material: T=1.2 mm electro-galvanized with powder coated
Doors type W=800mm mirror single-leaf SS304 swing doors
Door closer 2 SETs
Electric lock 2 SETs
Indicator lights Green / Red/Yellow, metal type
Blower fan 2sets,capacity: 2500CMH/set
99.99% HEPA filter 610*610*69mm 2 pcs
Pre filter 1 pcs
Nozzle 8+8=16pcs
Bloweing type 2 -side blowing, wind speed: >24m/s
Control system IC display
Photoelectric snesor Omron brand 1pcs
Philips LED light

1x18W




Display

Mirror SS304 Doors Air Shower Room For Single Person 0

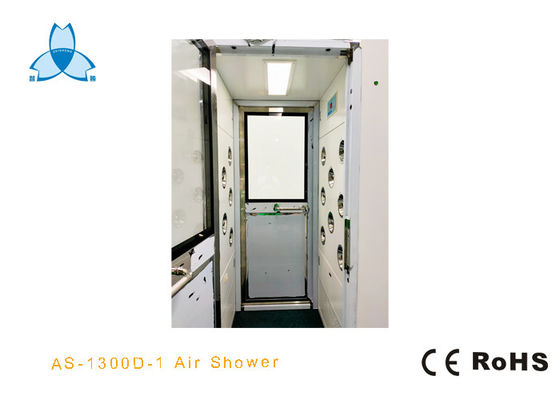

Air shower inside:

Mirror SS304 Doors Air Shower Room For Single Person 1



Metal Indicator light -----Good-looking, high quality



Mirror SS304 Doors Air Shower Room For Single Person 2

Lock Screws---It is easy for opening the panel inside and maintain air shower.

Mirror SS304 Doors Air Shower Room For Single Person 3





Drawing of Air shower



Mirror SS304 Doors Air Shower Room For Single Person 4Mirror SS304 Doors Air Shower Room For Single Person 5
