|Material:||Stainless Steel 304||Type:||Curved|
Stainless Steel 304 Curved Conveyor,
PLC Control Curved Conveyor,
PLC Control Curved Roller Conveyor

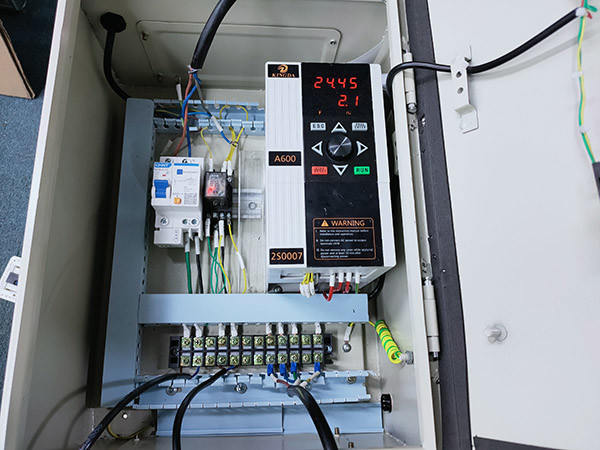

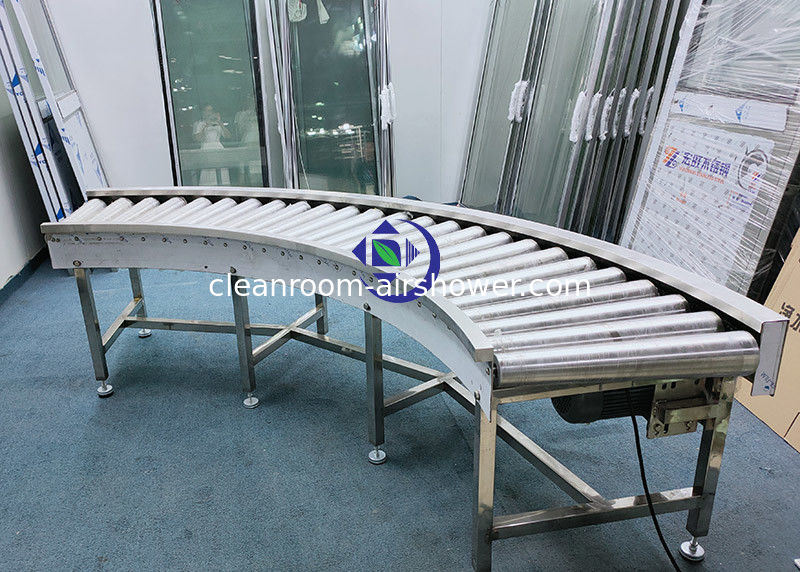

Stainless steel 304 Curved Conveyor for pass materials, with PLC control
Roller conveyor applies to convey all kinds of goods such as boxes, bags, pallets etc., the bulk material, small article and irregular goods should be put on pallets or turnover box. Roller conveyor can convey single heavy material, or bear the larger impact load.
Roller line is easy to link, it can combine multiple roller lines and other conveyor or special machines to form complex logistics conveying system to complete various process.
Both forward moving and Backward moving
Air Shower Pass Box is matched with conveyor, used for full automatic producing line which required clean class level.
Applications: For Pharmacy, electronic, food and other high claenliness clean room.
Pass box material: Powder coated steel or stainless steel
Pass box can do air shower and non air shower type, on the based design of pass box plus with automatic control system.
|External size for pass box||W700xL2000xH700mm, R=1300MM
|Material||Stainless steel 304|
|How to work||Motor driven with chain drive|
|Motor||1sets, AC220V, 50HZ, 1PH|
|Roller||diameter 50mm, roller width 560mm|
|Conveyor speed||ajustable 0-0.1m/s|
Size for Conveyor: W700xL2000xH700mm, R=1300MM
Material for Conveyor: Stainless steel 304
The steps of Pass box and Conveyor:
They are cominbed with pass through box and conveyor.
Pass through box's material is powder coated steel or stainless steel, it is composed of two automatic sliding doors, HEPA filters,, primary filters, Blower fans, Nozzles. When goods into pass through box, it will be infrated by sensor to blowing to remove the dust particle from goods, the two doors are interlocked, it means that one door open, the other one must be closed, therefore it is prevent the airflow convection between non clean room and clean room, to keep the cleanliness of clean room.
The conveyor is L type, which is usually installed in the corner of workshop, suitable for the narrow space.
The workers put the goods on the conveyor, it is moving to the entrance door of pass box, it will open automatically, then moving on into pass box, the 2 doors close and the conveyor stops, then the pass box is blowing and reomving the dust particles from goods, after blowing, the exit door will open automatically, the conveyor will conintues to moving on , the exit doors will be closed, when goods arrive the end point and no worker takes it away, the coveyor will stop.
The conveyor material: Stainless steel rollers or belt.
The conveyor running: forward working/backward working/Both forward and backward working.
The speed of conveyor: 0-0.1m/s
Optional accessories for Pass Box:
2. UV light
3. Anti-static PVC curtains for doors, if customers want to reduce the cost.
we can offer special size and requirement as per our clients.
Drawing of pass box and conveyor
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Why you choose ZHISHENG Company ?
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
