2 Side Blowing Powder Mill Air Shower With Dust Collector

2 Side Blowing Powder Mill Air Shower With Dust Collector
2 Side Blowing Powder Mill Air Shower With Dust Collector 2 Side Blowing Powder Mill Air Shower With Dust Collector 2 Side Blowing Powder Mill Air Shower With Dust Collector 2 Side Blowing Powder Mill Air Shower With Dust Collector

Large Image :  2 Side Blowing Powder Mill Air Shower With Dust Collector

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Zhisheng
Certification: ISO 9001/CE/ROHS
Model Number: AS-1300D-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

2 Side Blowing Powder Mill Air Shower With Dust Collector

Description
Condition: New Dimension(WxDxH): W1300xD1000xH2260mm
In Size(MM): W800xD900xH1960 Blowing Side: 2- Side Blowing
Material: T=1.2 Powder Coated Steel Suitable: One Person
Voltage: AC380V, 50 Hz,3PH
High Light:

Powder Mill Air Shower

,

Air Shower With Dust Collector

,

2 Side Blowing Air Shower Booth

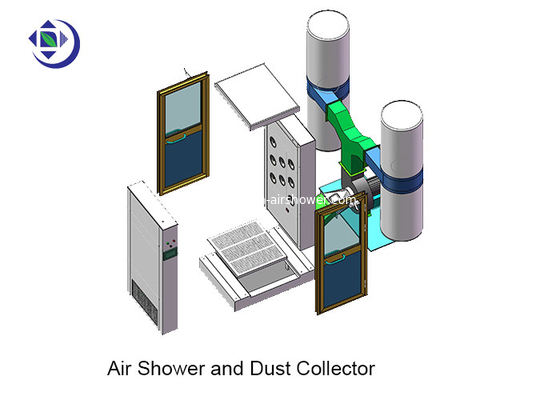

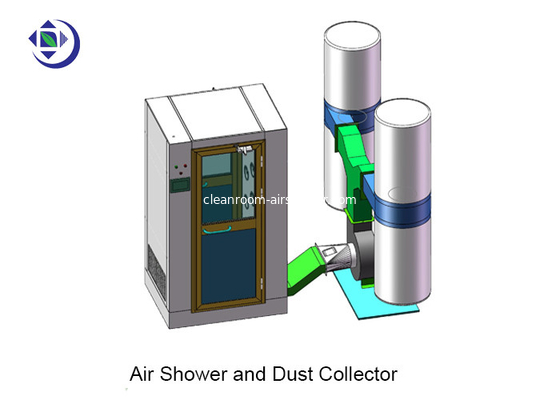

Air Shower with dust collector for Powder mill which has heavy dust



Material: T=1.2mm white powder coated steel for main body, stainless steel 304 for the base and  the single-leaf swing doors



Air shower.pdf

According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,


According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.


According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower


Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.



Features:



The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.



Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.

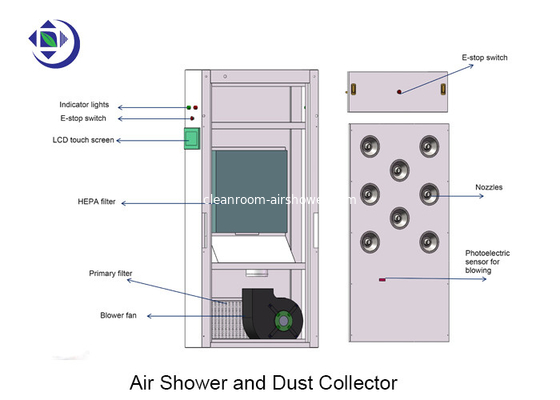

Size and Specifications:



Product Air shower room for one person,
External size W1300xD1000xH2260mm
Internal size W800xD900xH1960mm
Material: T=1.2 mm powder coated steel for main body

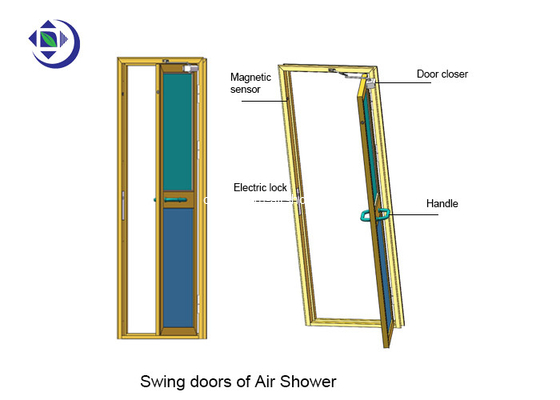

Doors type W=800mm  single-leaf SS304 swing doors
Door closer 2 SETs
Electric lock 2 SETs
Indicator lights Green / Red/Yellow, metal type
Blower fan 2sets,capacity: 2500CMH/set, AC220V/50HZ/1PH
99.99% HEPA filter 610*610*69mm 2 pcs
Pre filter 1 pcs
Nozzle 8+8=16pcs
Bloweing type 2 -side blowing, wind speed: >24m/s
Control system IC display
Photoelectric snesor Omron brand 1pcs
 LED light

1x8W






Air shower  photos:

2 Side Blowing Powder Mill Air Shower With Dust Collector 0



2 Side Blowing Powder Mill Air Shower With Dust Collector 1



Metal Indicator light -----Good-looking, high quality



2 Side Blowing Powder Mill Air Shower With Dust Collector 2

Lock Screws---It is easy for opening the panel inside and maintain air shower.

2 Side Blowing Powder Mill Air Shower With Dust Collector 3

2 Side Blowing Powder Mill Air Shower With Dust Collector 42 Side Blowing Powder Mill Air Shower With Dust Collector 5
