|Size:||592x292x292||Frame Material:||ABS Plastic|
|Initial Resistance (Pa):||≤220||Porosity:||0.3 Um|
H14 4V Compact HEPA Filter,
H13 Compact HEPA Filter,
Galvanized Frame HEPA Air Filter

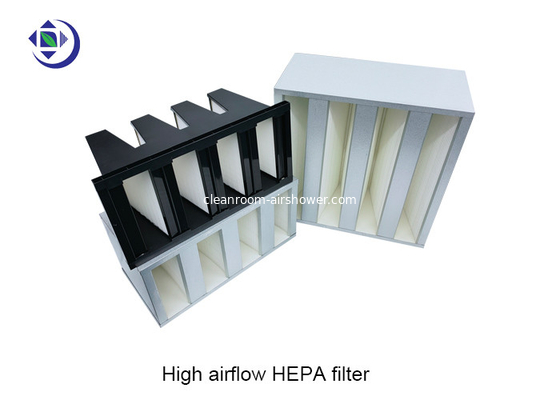

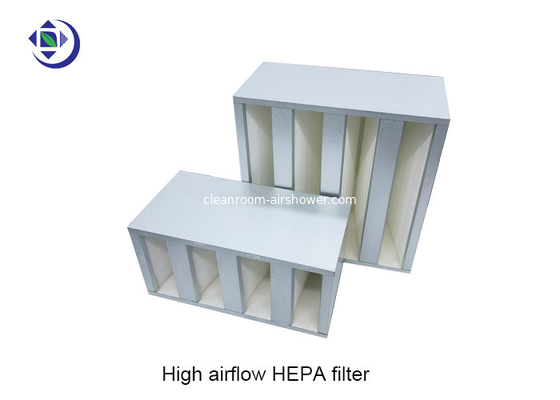

H13, H14 High Aiflow 4V Compact HEPA filter, Galvanized frame HEPA filter H13 for air handling unit
Compact HEPA filter for AHU
Outer frame: Galvanized
It is assembled with fiberglass or superfine polypropylene filter material, and galvanized sheet frame. It is featured with great dust-contain capacity, high withstanding air volume, high filtering efficiency, less resistance, light in weight, and convenient for mounting etc
Advantages of the product:
1. High dust holding
2. Low initial pressure drop
3. Good raw material, competitive price
4. Leak test one by one before delivery
5. Fast delivery
6. Size can be customized
Material and operating conditions:
|External frame||Galvanized frame|
|Separator||Clapboard or aluminum foil|
|Filter media||Fiberglass /HV fiberglass / PP|
|Maximum operating temperature||80°C|
|Maximum operating humidity||100%|
|HEPA filter Efficiency||≥99.99%|
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
7: Each air filter with test report accompany
Size and Specification:
|Rated air flow
30% prepayment by T/T at order, the balance of payment before shipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
