| MOQ: | 50 pieces |
| Standard Packaging: | Carton and Pallet |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | Western Union, T/T |
| Supply Capacity: | 500 pieces per month |
Disposable Terminal HEPA Filter box for Clean room, H13, H14 , Aluminum frame and fiberglass media
Frame: Extruded aluminum
Media: fiberlgass
Size: 1170x5700x150mm
Disposable Terminal HEPA filter is by coordinating with the use of ceiling T-bar system, the disposable HEPA filter module unit can connect to air hose directly.
As for its small size, light weight, easy assembling, saving the installation time, it can be used for clean room or the other critical clean area which its cleanliness level is between class 1 and class 100,000.
Customized sizes and specifications are available to meet customer's requirements.
Features:
H
Low pressure drops
Thin in depth
Adjustable air flow
Easy installation
Negative pressure sealing
Usage:
It is considered especially suitable for applications in the ventilation and air conditioning system with limited space.
Material and operating conditions:
| External frame | Aluminum |
| Sealant | Polyurethane |
| Separator | Hot-melt |
| Filter media | Fiberglass or HV fiberglass |
| Initial drop | ≤220pa or 120pa |
| Maximum operating temperature | 80℃ |
| Maximum operating humidity | 80% |
| Efficiency | 99.99% |
Standard size and specifications:
| Model | Outside dimensions(mm) | Rated air flow (m3/h) | Collar size |
| ZS-GY610 | 610x610x150 | 1000 | 200 mm ( 8") |
| ZS-GY915 | 915x610x150 | 1500 | 250mm ( 10") |
| ZS-GY1170 | 1170x570x150 | 1800 | 300mm ( 12") |
| ZS-GY1220 | 1220x610x150 | 2000 | 300mm ( 12") |
Drawing:

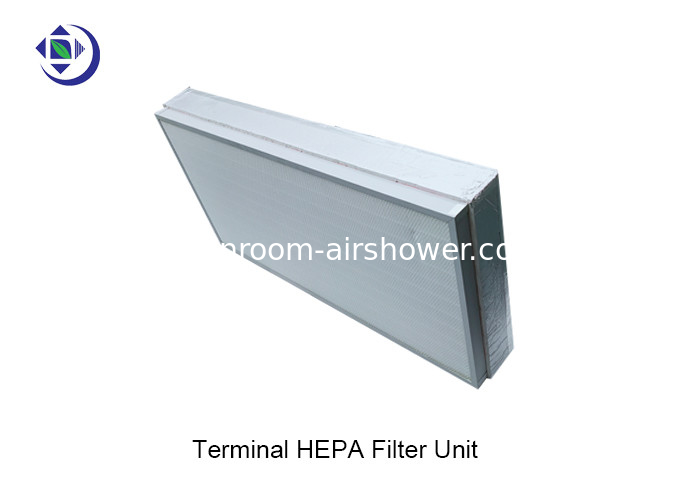

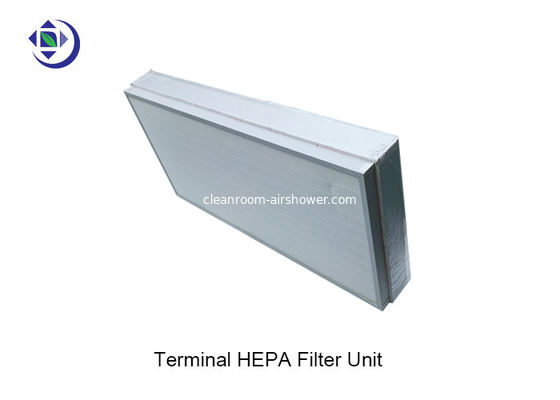

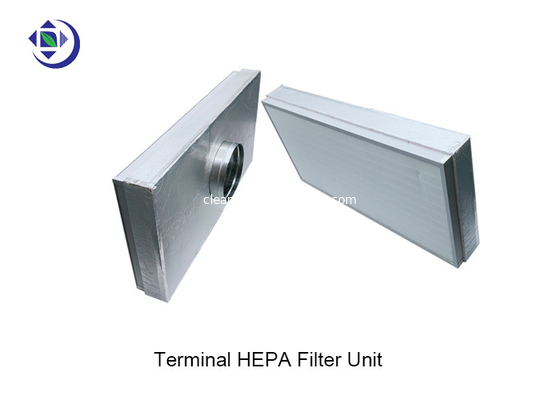

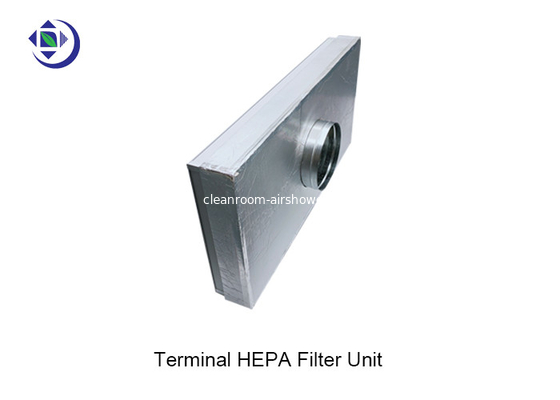

Pictures of Disposable Terminal HEPA filter:
Payment Term:
40% prepayment by T/T at order, the balance of payment before shipment.
Packing:
Carton and Plywood Case
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
Video
Video
Video
Video
|
|
