|Material:||Stainless Steel 304||Lock Type:||Electric Magnetic Interlock|
|Extenal Size:||600x600x600mm||Type:||Pass/transfer Box|
|Application:||Clean Room||Internal Size:||415x415x480mm|

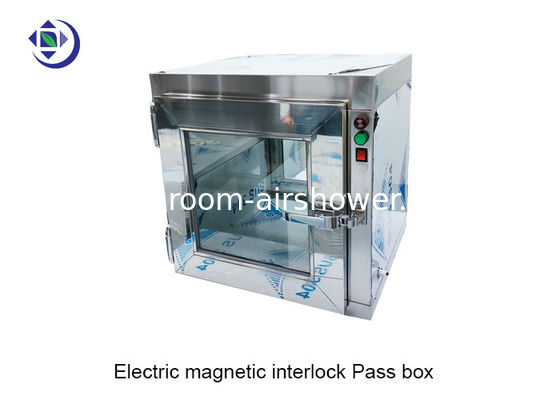

Electric Interlock Stainless Steel Pass Box,
Cleanroom Stainless Steel Pass Box,

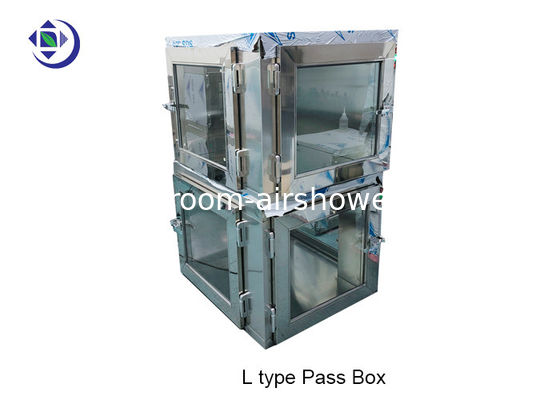

L Type Doors SS304 Transfer Hatch
L-type doors Stainless steel Electric inerlock transfer hatch, Stainless steel 304 Pass Box for Clean Room
External size: W600xD600xH600mm
Internal size: W415xD415xH480mm
Material: stainless steel 304
Maximize your production efficiency with clean room equipment! We are a pass box manufacturer
company based in India and have a long successful experience in designing, manufacturing and installing
We are presenting static pass box and dynamic pass box equipment at factory price.
These cleanroom pass box chambers are custom designed, rugged, made of high grade stainless steel
and can be installed in a number of ways, depending on the wall or door that will support them.
These equipment are supplied in pharmaceutical, semiconductor and food industries to meet the most
demanding controlled environment conditions.
Clean pass boxes use for micro-electronics, laboratory, national defense, precise instrument and gauges,
bio-pharmaceuticals, opto-electronics field.
operating features :
1: clean pass boxes is manufactured for the most demanding controlled environment applications.
2: All components are designed for maximum chemical resistance and enhanced durability for a long service life.
3: clean pass boxes is constructed of stainless steel inside, making the work zone easy to clean and endurable.
4: Mechanical and electric interlock are reliable, maintenance-free, maintains clean room integrity by preventing both door from being opened and the same time.
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
|External dimensions (W x D x H)||685x460x590||785x660x690||985x660x890|
|Size for working area ((W x D x H)||500x400x500||600x600x600||800x800x600|
|Material||Cold rollled steel with powder coated for outside, stainless steel for base|
|Lock type||Mechanical interlock|
|Windows||Clear Acrylic sheet|
|Product||Pass box with air shower|
|External dimensions (W x D x H)||820x560x1300||920x660x1400||920x660x1750|
|Size for working area ((W x D x H)||500x500x600||600x600x600||600x600x600|
|Material||Cold rollled steel with powder coated or stainless steel|
|Lock type||Mechanical interlock or Electric interlock|
|Windows||Clear Acrylic sheet|
we can offer special size and requirement as per our clients.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
